SMC Networks HRS050-A*-20 Series User Manual

HRX-OM-O021
Chapter 3 Transport and Setting Up
HRS Series 3.4 Piping
3-17
 How to connect piping
Tighten the piping to circulating fluid outlet / return port and facility water outlet / inlet.

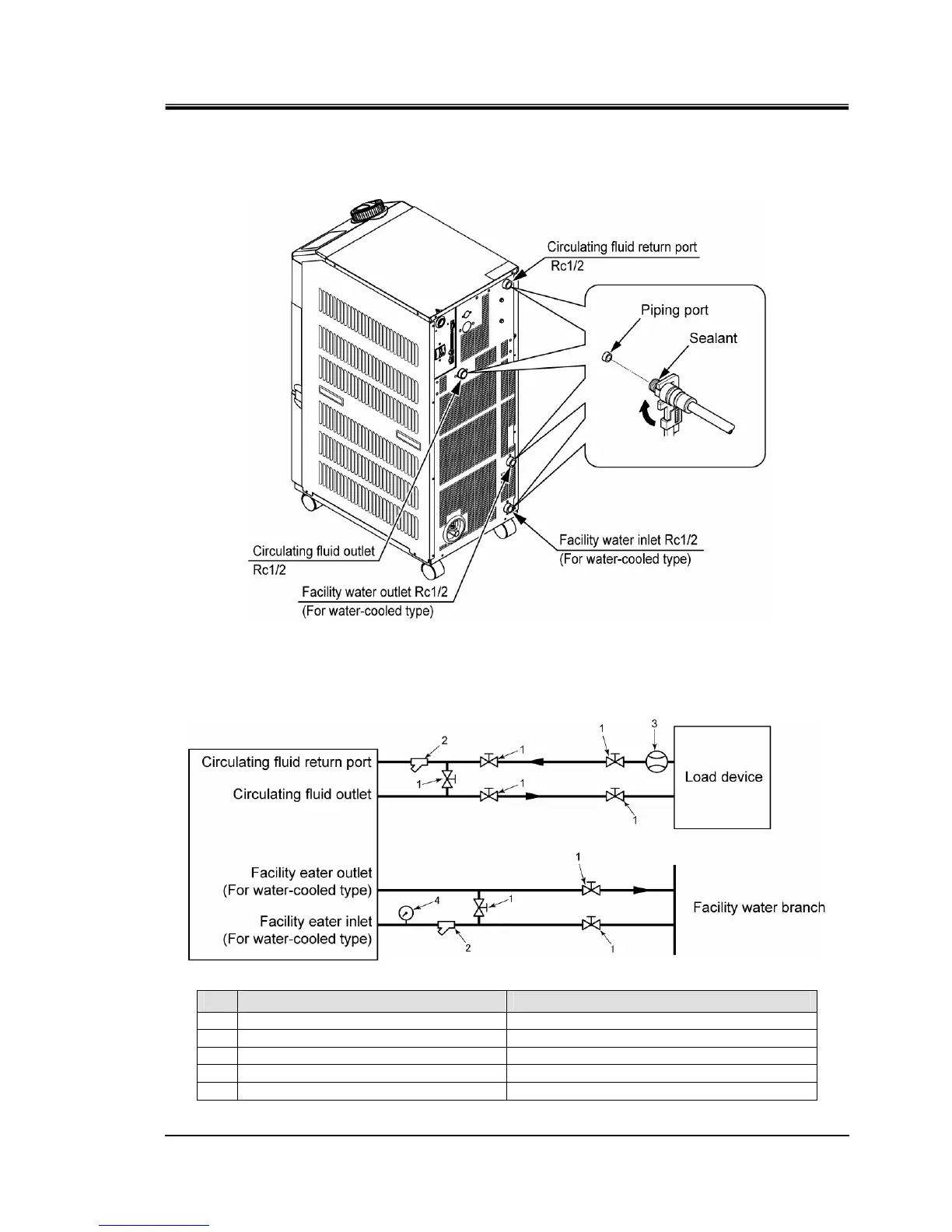

Fig. 3-12 Tightening of piping
 Recommended piping circuit
Fig. 3-13 Recommended piping circuit
No. Name Size
1 Valve Rc1/2
2 Y-shaped strainer or filter Rc1/2 (#500) Rc1/2 (50μm)
3 Flow meter 0 to 50 L/min
4 Pressure gauge 0 to 1.0 MPa
5 Others (Pipe, hose, etc.) I.Dφ15more
