No.IP8S-OM00009
38

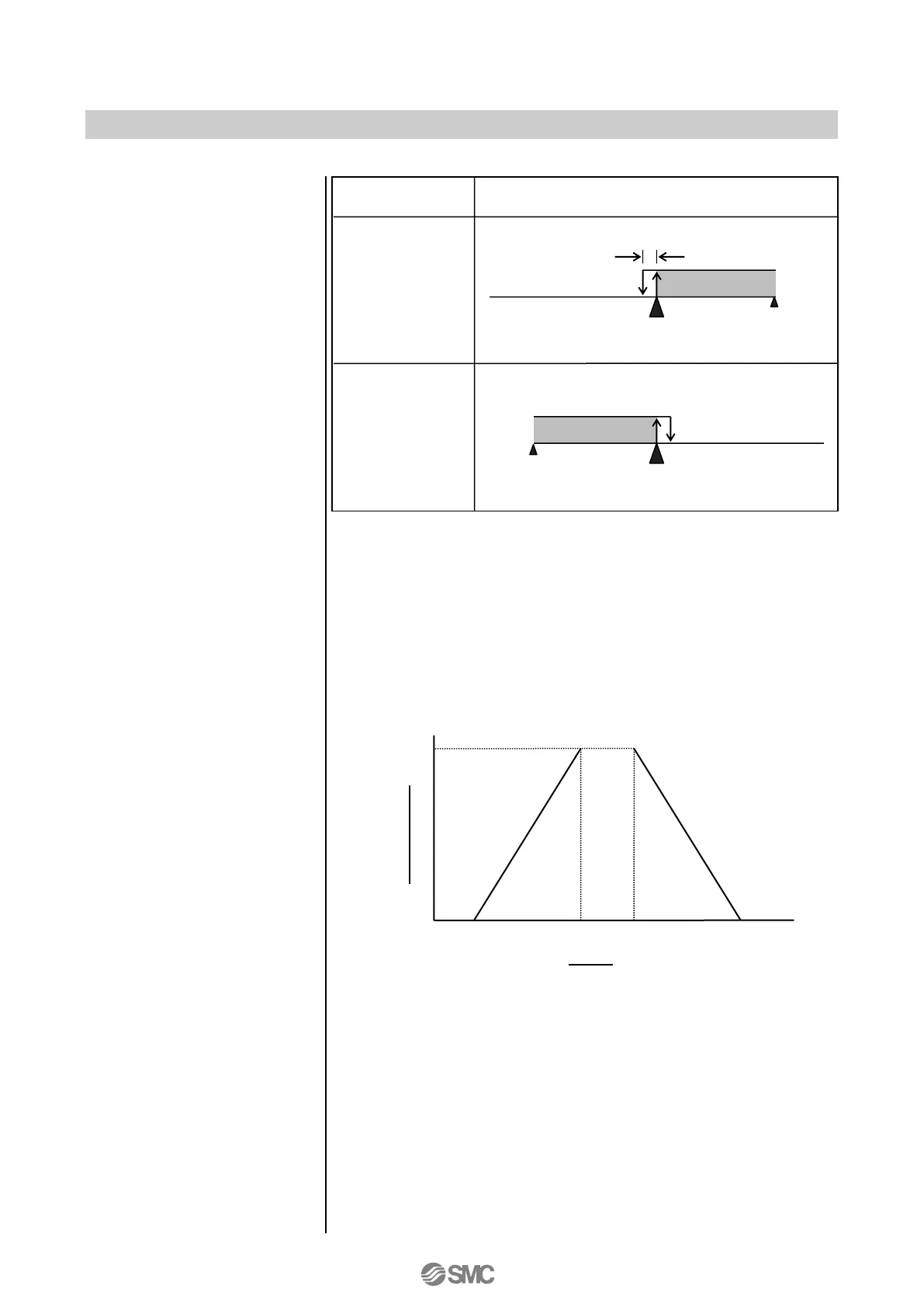

(b00) Analog output setting
*14
“Proportional output (inC)” or “Reversed output (dEC)” can be
selected. When proportional output (inC) is selected, analog
output will increase along with the increase of an actuator’s
stroke. When reversal output (dEC) is selected, analog output will
decrease along with the increase of an actuator’s stroke. The
default value at shipping is (b00) = (inC).
Setting for analog output will follow the position value (P value).
Input value (S value) will have no influence over the setting
*15
.
14: Note that once the input current is cut-off, analog output value that
was previously indicated before the cut-off will be maintained.
15: Even if a split range function is utilized, output will be 4 to 20mADC
regardless of the customer’s applicable range.
0%
100%
4mA
20mA
Current output
Stroke
b00=inC
100%
0%
b00=dEC
Fig. 32
Fig. 31
Upper alarm
(UP)
Set value for alarm
Lower alarm
(Lo)
Set value for alarm
Alarm mode
Alarm output operation
0.5% fixed
0.5% fixed
Position value
100%
Position value
0%
