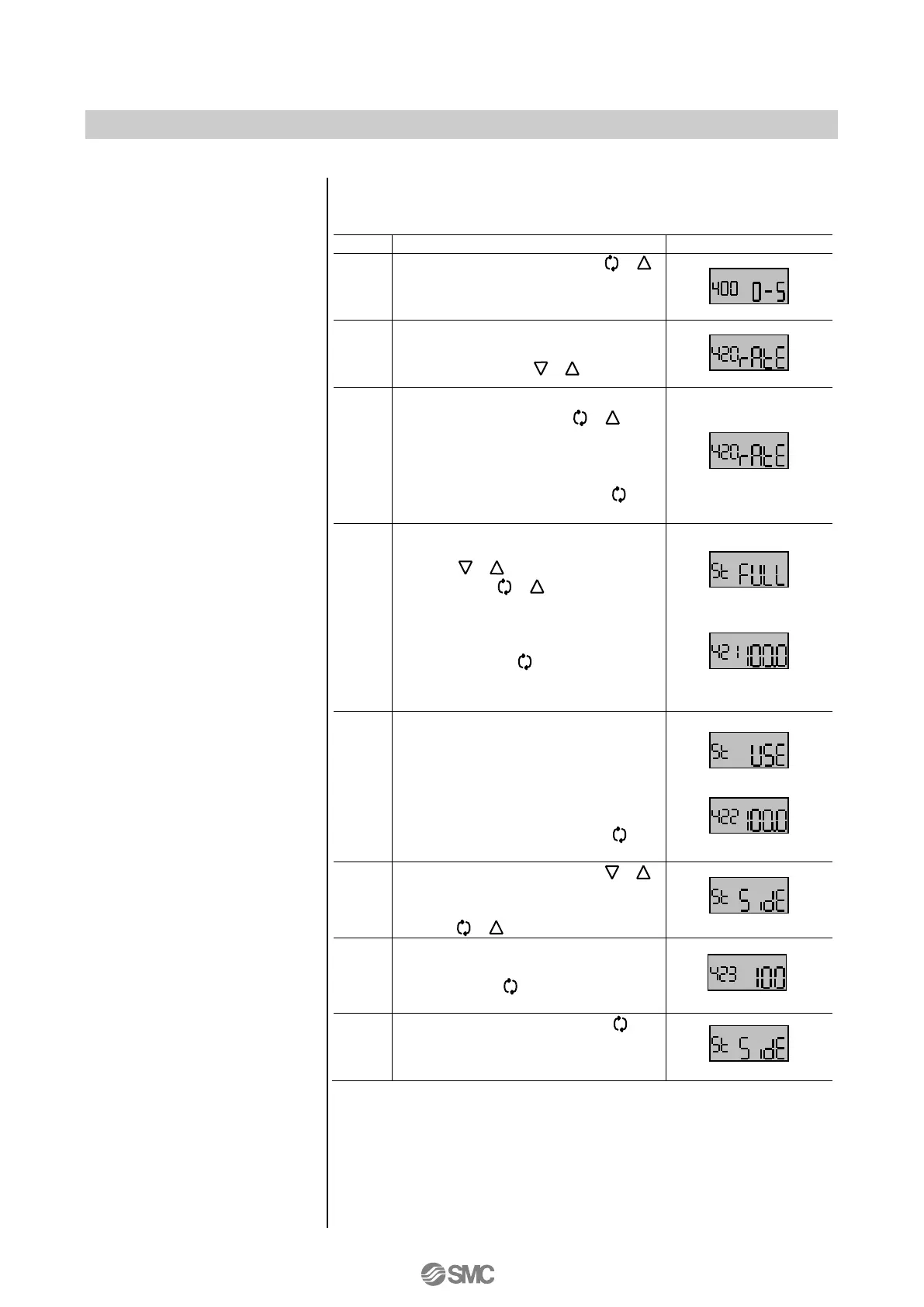

Input all valve stroke which is used (incl. over travel), and select
over travel setting side.
Hold down the set button ( )
for 1sec. or longer to move on to
parameter change mode.
Select Ratio setting (rAtE) or non
zero point / span mode (oFF) by UP
or DOWN button ( ).
To select Ratio setting (rAtE), hold
down the set button( ) for
1sec. or longer to go to value
change mode. When selecting
non zero point / span mode (oFF),
hold down the mode button ( ) for
1sec. or longer to set the value.
<Hereafter, only when (rAtE) is set>
Select (st FULL) with UP or DOWN
button ( ), and hold down the
set button ( ) for 1sec. or
longer. After values flashing,
change all actuator stroke within
0.0 to 999.9mm. Hold down the
mode button ( ) for 1 sec. or
longer for 2 times with some
interval.
After (st USE) is indicated, mode
move on to value change mode
automatically. As stroke setting
(412) of clause 4, set stroke within
0.0 to 999.8mm (60% or more of all
actuator stroke). After changing,
hold down the mode button ( ) for
1sec. or longer to set.
Press UP or DOWN button ( )
to select over travel setting side (st
SidE), then, hold down the set
button ( ) for 1sec. or longer.
Select 0% or 100% side with UP or
DOWN button. Hold down the
mode button ( ) after selection for
1sec. or longer to set.
Hold down the mode button ( ) for
1sec. or longer. Hold down again
for 1sec. or longer after interval.
