MENTOR 12 US SECTION 3: ADVANCED CONTROL – Page 64 ER’S MANUAL
• TRIP TIME, which shows the time that has elapsed in seconds between the
moment when the increase occurs where the trip
has occurred and the moment when this trip
occurs, which is, in effect, the relay trip time at that
specific value.
• The TRIP VALUE (level), which shows the value in
its relative unit that causes the relay to trip.
• The total DURATION of the test (END), which
shows the total time used by the function to carry it
out.
There are two buttons in the upper right-hand corner of the
screen marked “Configure” and “Execute” respectively. They
work as follows:
• The “CONFIGURE” button returns to the
configuration screen of the function. It does not
work during the test execution
• The “EXECUTE” button starts the test. Once the
test has started, the tag changes to “ABORT”. If
this button is pressed during the test, the test will
immediately stop, and the button will change to
“EXECUTE” again, to start it again if desired.

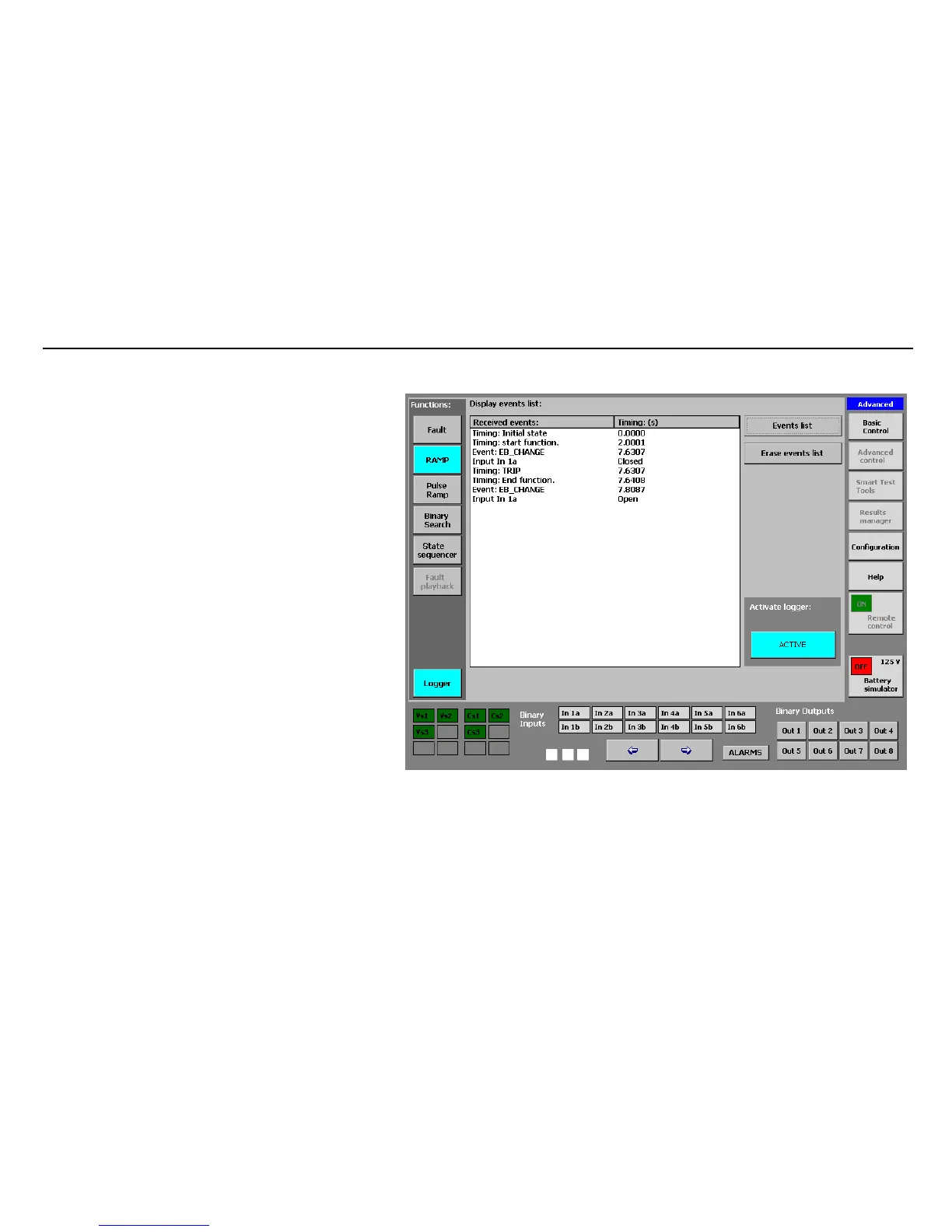

Furthermore, and to have a better record and identification of
the test results, a key called “Logger” appears in the bottom
left-hand corner. By pressing this key, it is possible to see absolutely all the digital
events that have occurred during the execution of the function, with their relative
identification and time tag. (See LOGGER)
