MENTOR 12 USER’S MANUAL SECTION 2: BASIC CONTROL – Page 30

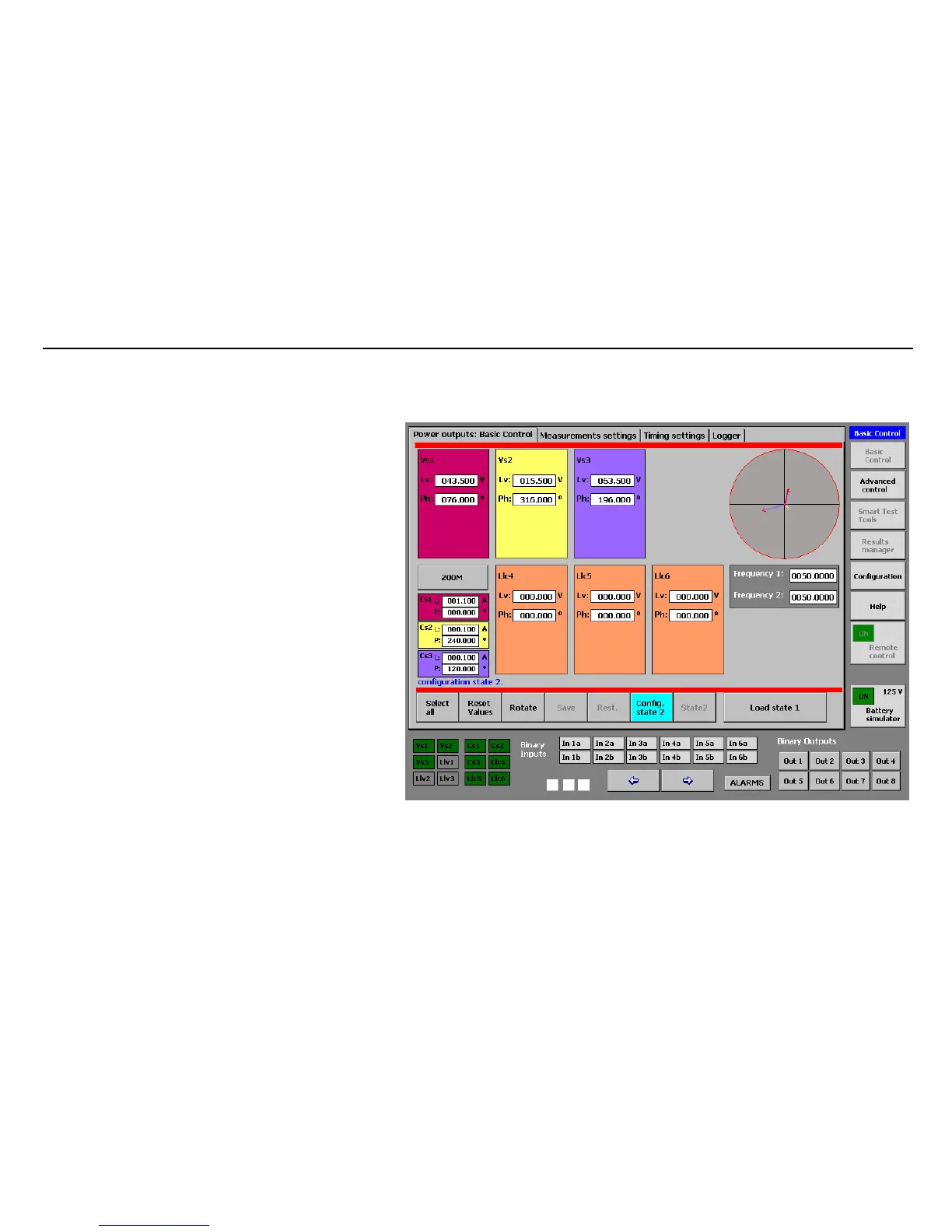

“Config. Status 2” and “Status 2” keys
During relay testing, be it manual or not, the possibility of
carrying out dynamic changes in both the analogical and
logic values of the different outputs selected is of great help
(and is sometimes essential), in order to assess the
response of the relay being tested to this change, either by
trip time measurement or by the subsequent study of the
performance of the outputs of this relay, using the “Logger”
function.
For this function to be practical it is necessary to be able to
configure this status, even while the conditions of the
“normal” or “1” status are activated. This is what the Config.
Status 2 key is used for. Once the operator has edited the
desired parameters on this screen, the condition of 2nd
value is activated with the Status 2 key.
