MENTOR 12 USER’S MANUAL SECTION 3: ADVANCED CONTROL – Page 81
STATE SEQUENCER function

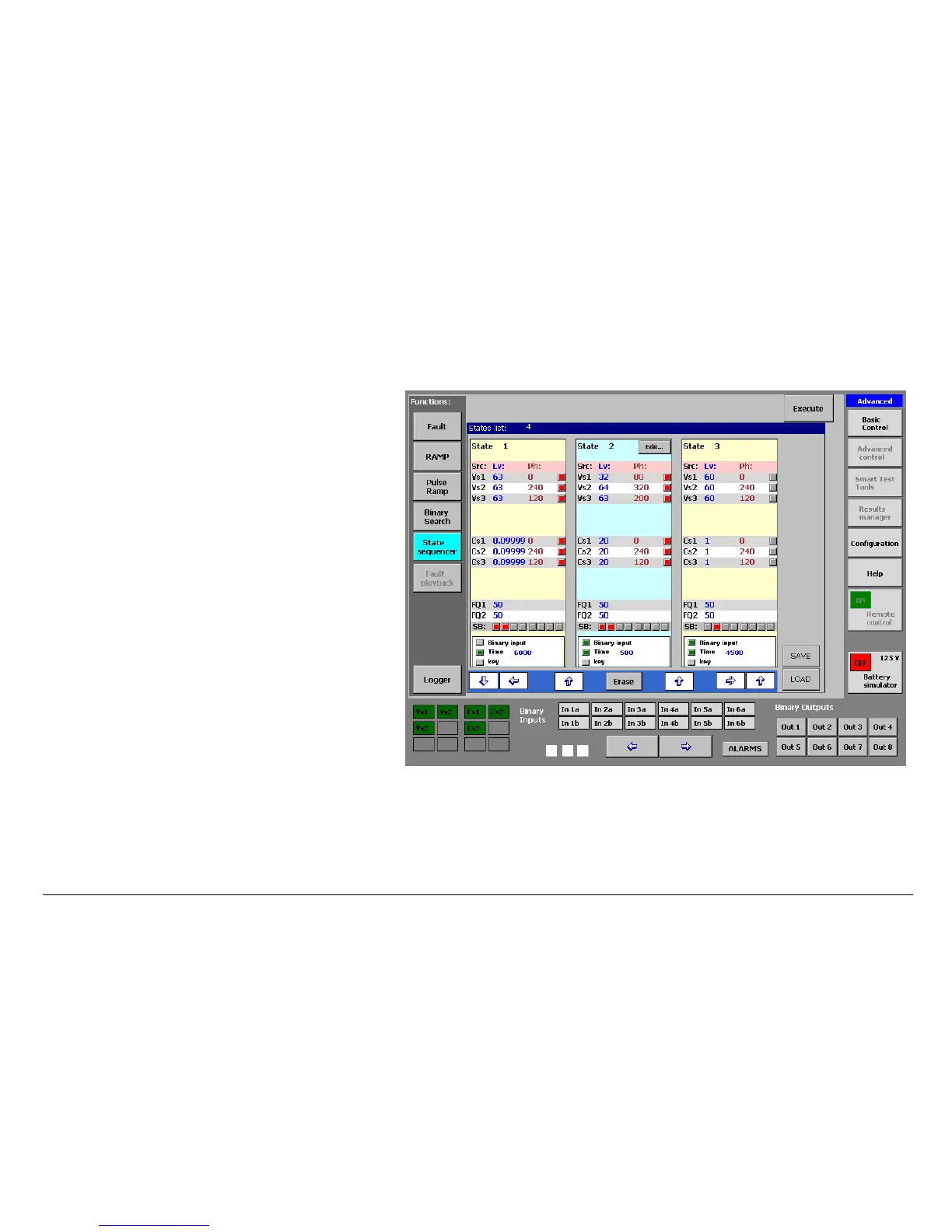

The State Sequencer function that is selected by pressing
the relative button marked “State Sequencer” on the
functions selection column, on the left of the advanced
control screen, permits configuring all the outputs available
on the Mentor, be they analogical or Binary, as you desire.
The change from one state to another can be configured
either by elapsed time, by any combination of the binary
inputs, by both things or by manual initiation (operator input).
The State Sequencer is used to test protection functions that
are closely connected to times and actions dependent on
each other, such as reclosing cycles, protection schema with
segregated or selective trips, sending orders and signals to
other protections, communication schema, etc…
To use this function it is essential to study the data contained
in the Logger in detail as well as their correlation with the
changes in state.
This function is very easy to use and configure, but its
configuration and its results must be carefully studied to
obtain a coherent report, which depends basically on what
the protection or schema tested are expected to do under
the injected conditions.
