MENTOR 12 USER’S MANUAL SECTION 4: CONFIGURATION – Page 99
Miscellaneous

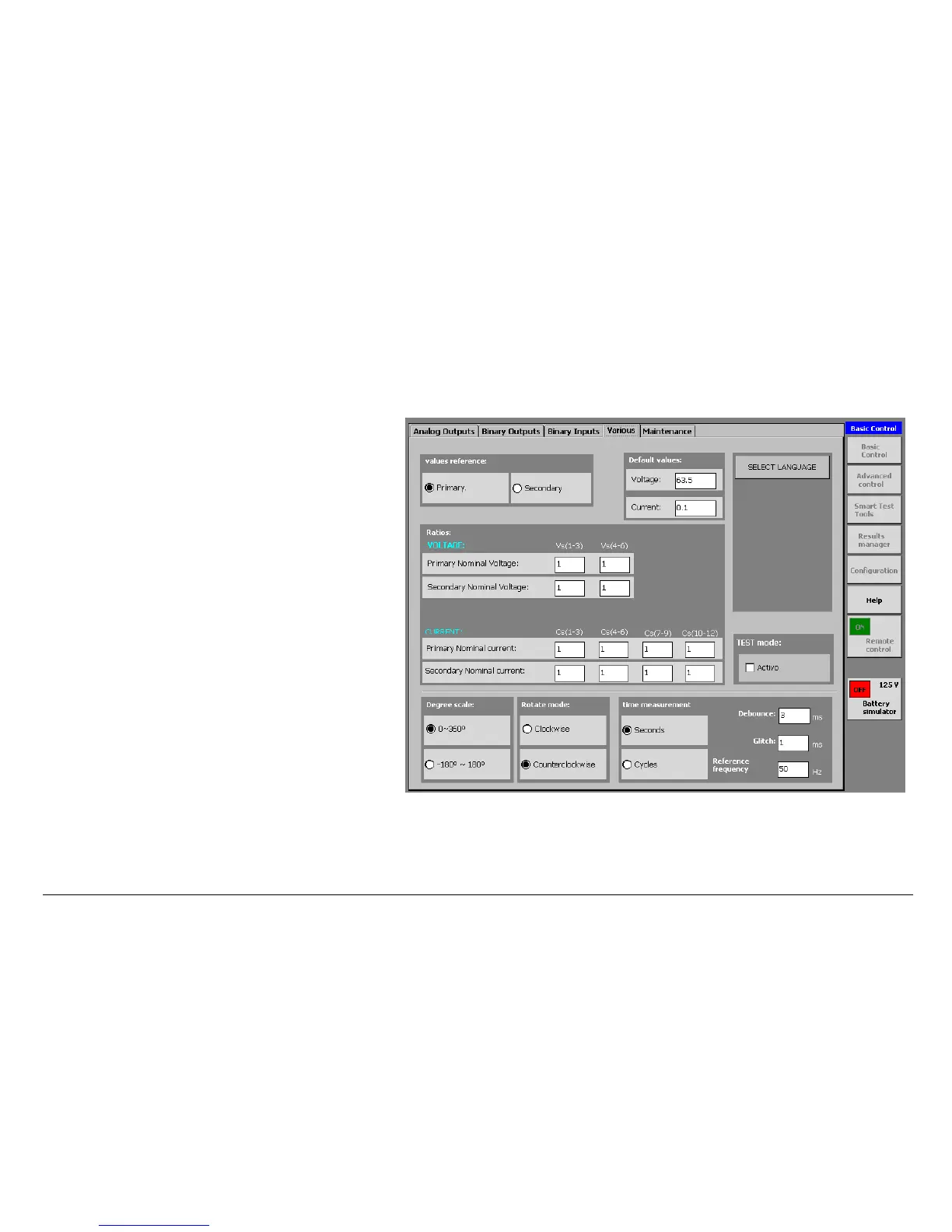

In this section of the Configuration Software you can carry
out different general configurations of the Mentor 12, which
affect different factors that make the operation more efficient.
These aspects are:
• Referring to the way of viewing and/or
handling different magnitudes: It is possible to
work in primary values (V and A) or secondary
values (V and A), entering the ratio of the voltage
transformers and current transformers, by way of
their primary and secondary values. It is also
possible to configure both the way the phase
angles are read (scale from 0 to 360º or scale from
+ 180º to - 180º), and define the direction of
rotation of our regulation (positive degrees in
clockwise direction or in anti-clockwise direction).
Finally, it is also possible to define if the times and
durations are going to be viewed and defined in
seconds or in number of cycles at the selected
reference frequency.
• Referring to default values in normal
magnitudes: Default values for the Voltage and
Current can be entered. These will generally
define the pre-fault or healthy values of these
magnitudes.
Whenever you use the “Reset Values” key in Basic Control or start the
equipment from off, these values will exist in the respective source controls.
• Referring to basic work parameters: These are parameters that rarely
change for the operation. We can set the value of the Basic Frequency at
