MENTOR 12 US SECTION 3: ADVANCED CONTROL – Page 76 ER’S MANUAL

• Press on the indicators of each output source you wish to use. For example,

if you wish to use a single-phase ramp, press on one any of them, but not on

the others. If you want a phase-to-phase ramp (two-phase) press on two of

the available sources, if it is three-phase, on three of them,… etc.

• If you have selected FREQUENCY, a tag will appear which indicates that “the

ramp will be applied to all the channels in Freq. 1” and the indicators of all the

sources that are in Frequency 1. These icons are only indicators and you

cannot select them as they are already selected.

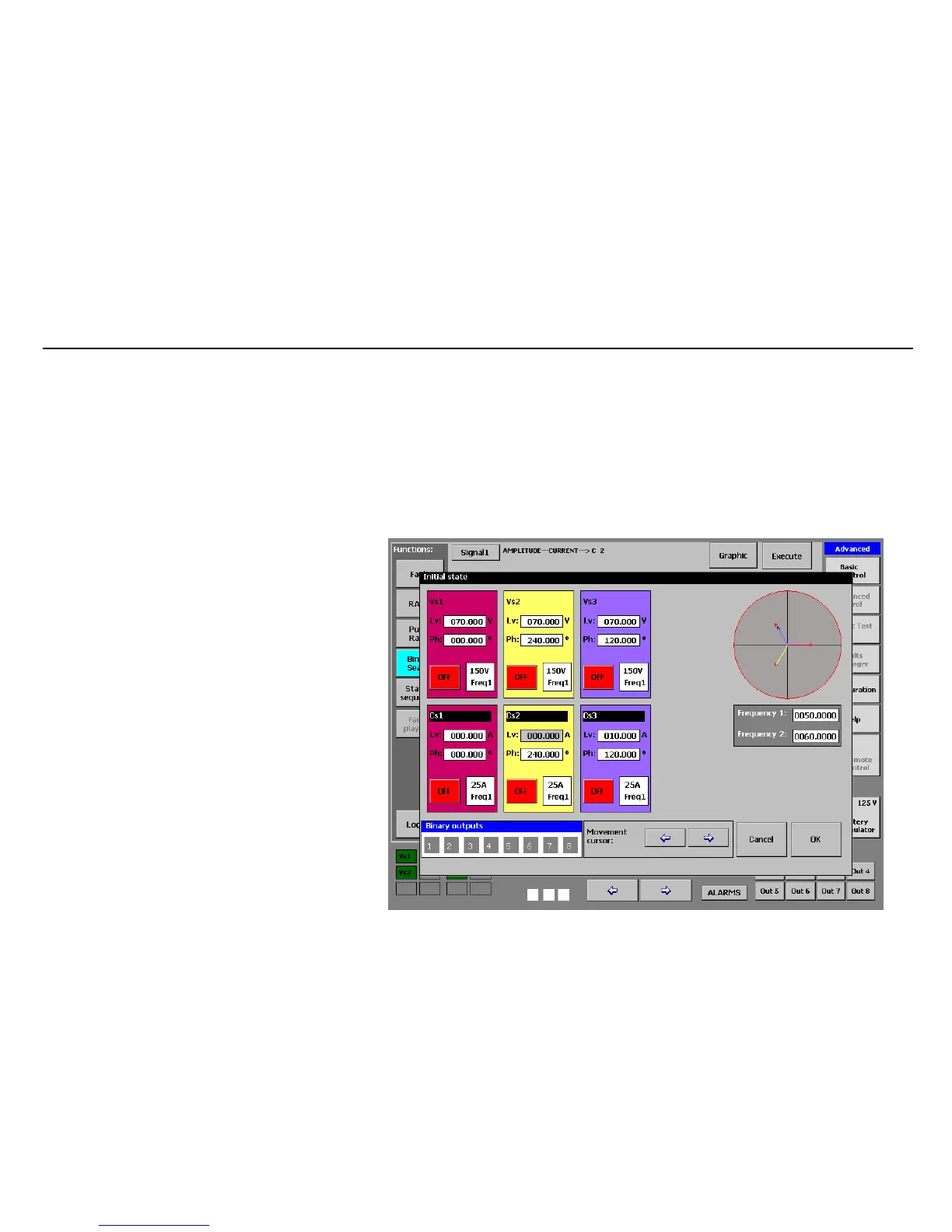

• When you have made your selection, press

OK to confirm and return to the configuration

screen, or CANCEL to return to the

configuration screen without making any

selection.

• On the configuration screen, following the

“Signal1” key there must be a tag that

indicates the parameter (Amplitude or

Phase), the type of signal selected (Voltage

or Current) and the output sources that the

ramp will carry out (c1, c2, etc).

• If you have selected FREQUENCY, the tag

indicates Frequency and that it is applied to

all the sources in FREQ. 1

• Enter the desired values to execute the pulse

ramp on the data input windows of the

graphic. You must enter values for the

magnitude (white-colored window and in the

relative unit) and values for the durations

(blue-colored window and in milliseconds).

• Enter this value using the rotary knob in the

window that defines the initial value of the

magnitude (on the green line). Bear in mind

that this value of the magnitude will NOT be
