MENTOR 12 USER’S MANUAL SECTION 3: ADVANCED CONTROL – Page 86
• The “CONFIGURE” button returns to the
configuration screen of the function. It does not
work during the test execution.
• The “EXECUTE” button starts the test. Once the
test has started, the tag changes to “ABORT”. If
this button is pressed during the test, the test will
immediately stop, and the button will change to
“EXECUTE” again, to start it again if desired.

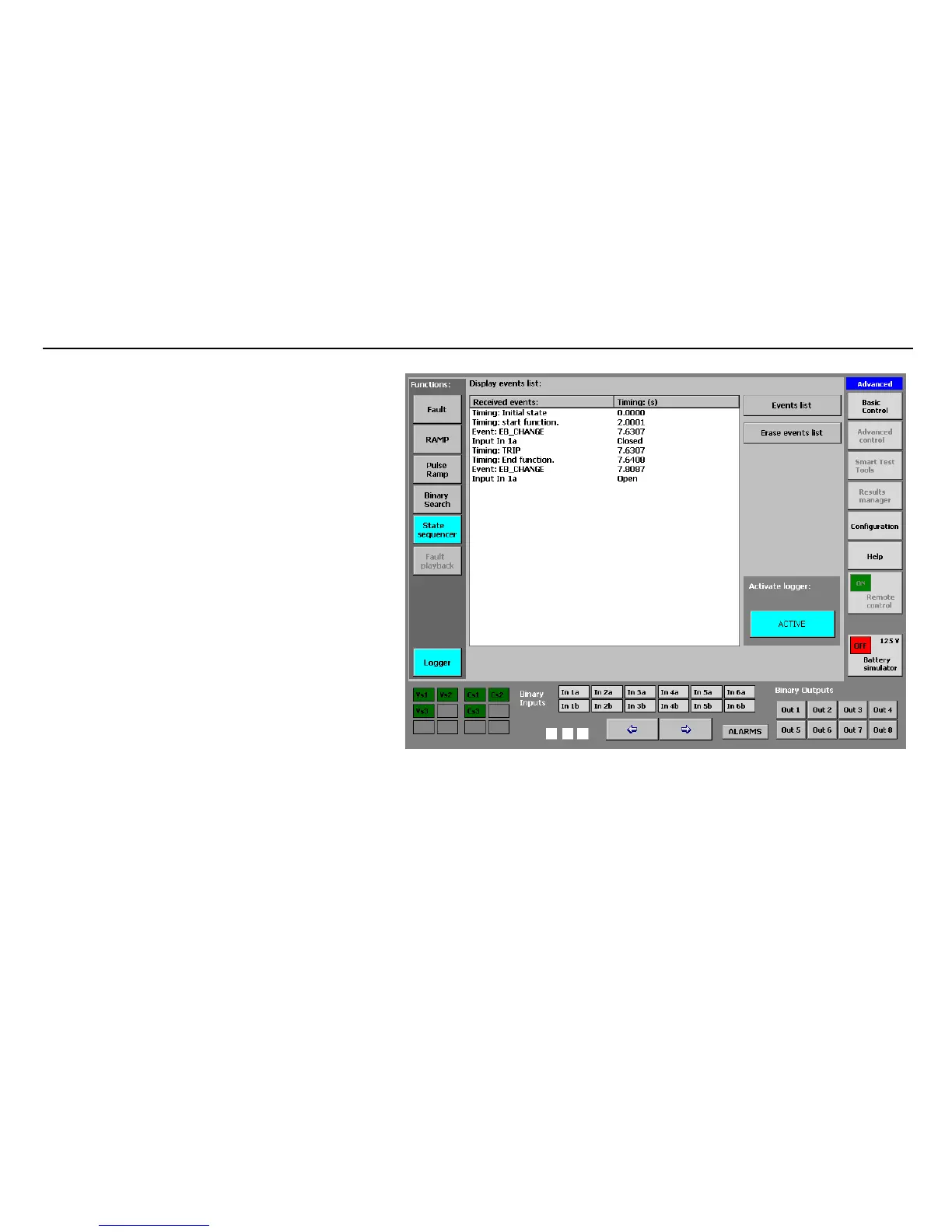

Furthermore, and to have a better record and identification of
the test results, a key called “Logger” appears in the bottom
left-hand corner. By pressing this key, it is possible to see
absolutely all the digital events that have occurred during the
execution of the function, with their relative identification and
time tag. (See LOGGER). In this function, the Log must be
studied to determine if the test result has been satisfactory
or not.
There are two buttons in the upper right-hand corner of the
screen marked “Configure” and “Execute” respectively. They
work as follows:
The total DURATION of the test (end), which shows the total
time used by the function to carry it out.
