Users Guide
35
Eight ‘Hardware’ measurements are available:
• High level external voltage measurement. (V2in)
• External current measurement (A1in).
• Low level external voltage measurement (V1in).
• Phase measurement between V2in and A1in.
• Phase measurement between V2in and V1in.
• Phase measurement between V2in and Iout (output current).
• Phase measurement between A1in and Iout.
• Phase measurement between V1in and Iout.
Given that A1in and V1in cannot be used simultaneously, as stated, only 6 of them can
be selected for display in each case.

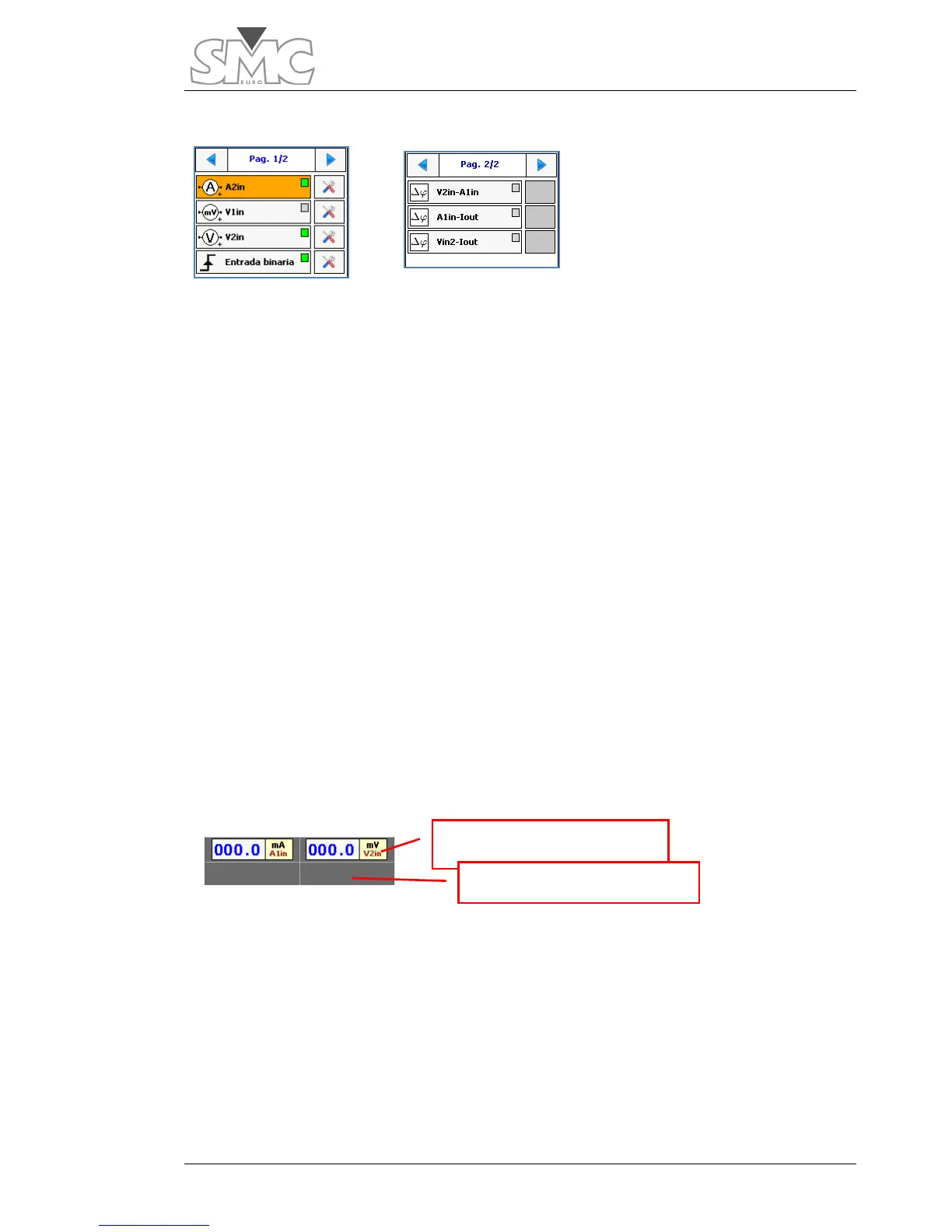

The following image shows the A1in and V2in meters:
The ‘Hardware’ measurements zone has four display cells. Therefore, there are a
maximum of four ‘Hardware’ measurements that can be viewed on screen at the same
time. The cell occupied by each added measurement doesn’t always have to be the
same; it depends on which and how many meters you may have added.
A measurement of this type shows three different data:
V2in measurement
Space to add measurement
