SMC Networks TigerSwitch SMC6128PL2 Installation Guide

1-1
C HAPTER 1
A BOUT THE T IGER S WITCH
Overview
The SMC6128PL2 is an intelligent PoE switch with 24 10/100BASE-T
ports, two 10/100/1000BASE-T ports and two Gigabit combination
ports
1
that are comprised of a RJ-45 port and an SFP transceiver slot.
There is also an SNMP-based management agent embedded on the main
board. This agent supports both in-band and out-of-band access for
managing the switch.
The switch provides a broad range of powerful features for Layer 2
switching, delivering reliability and consistent performance for your
network traffic. They bring order to poorly performing networks by
segregating them into separate broadcast domains with IEEE 802.1Q
compliant VLANs, and empower multimedia applications with multicast
switching and CoS services.

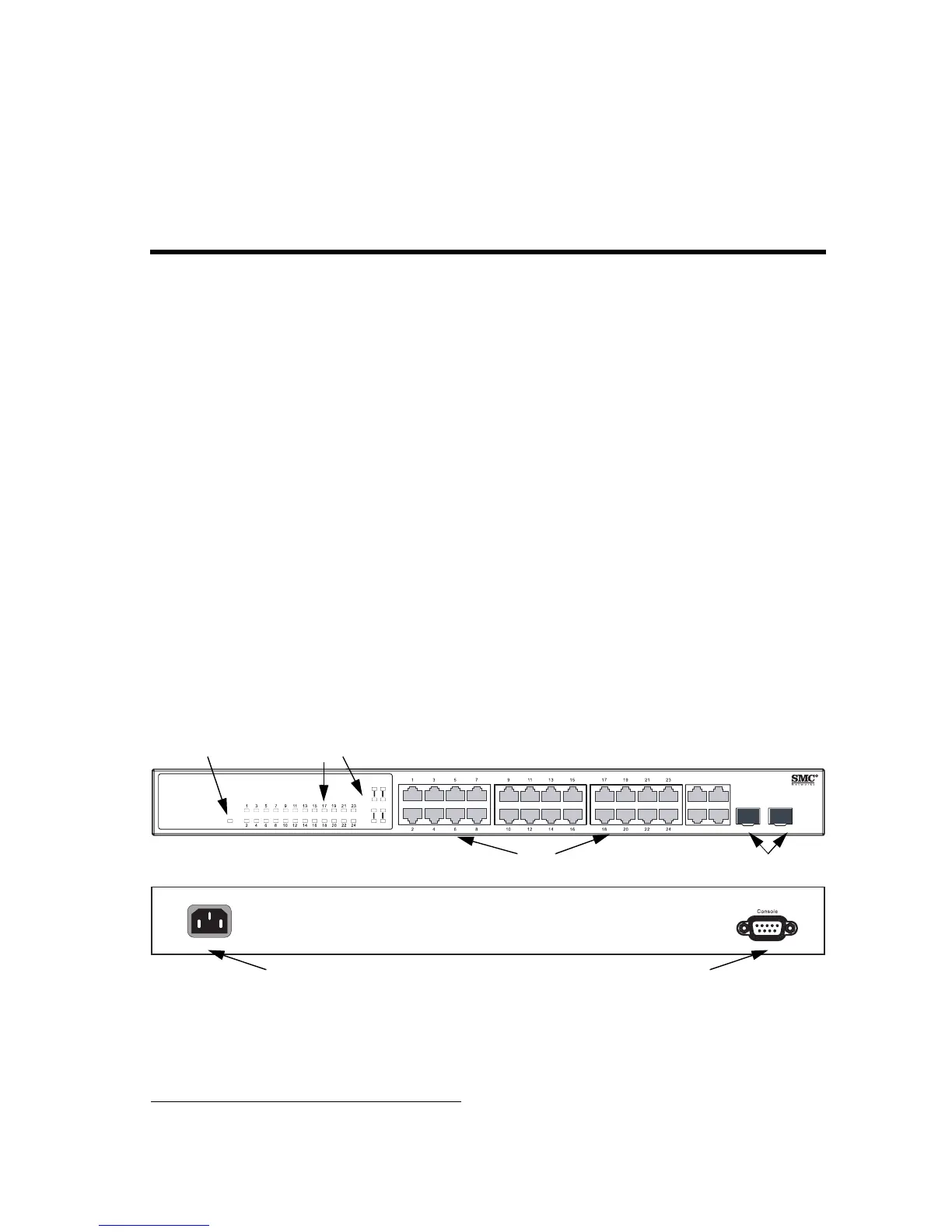

Figure 1-1 Front and Rear Panels
1. RJ-45 ports shared with a SFP tranceiver slots. If an SFP transceiver is plugged in, the cor-
responding RJ-45 port is disabled.
SMC6128PL2
TigerSwitch 10/100
25 27
26 28
27 28
25
27
26
28
Link/Act
System
RATING
100~240V-
3A 50~60HZ
10/100 Mbps RJ-45 Ports
P
ort
S
tatus
I
n
di
cators
1000BASE-T/SFP Ports
System Indicator
Power Socket
Console Port

SMC Networks TigerSwitch SMC6128PL2 Specifications

General

Brand	SMC Networks
Model	TigerSwitch SMC6128PL2
Category	Switch
Language	English
