A
BOUT
THE
T
IGER
S
WITCH
1-4
Port and System Status LEDs
The LEDs, which are located on the front panel for easy viewing, are shown
below and described in the following table.

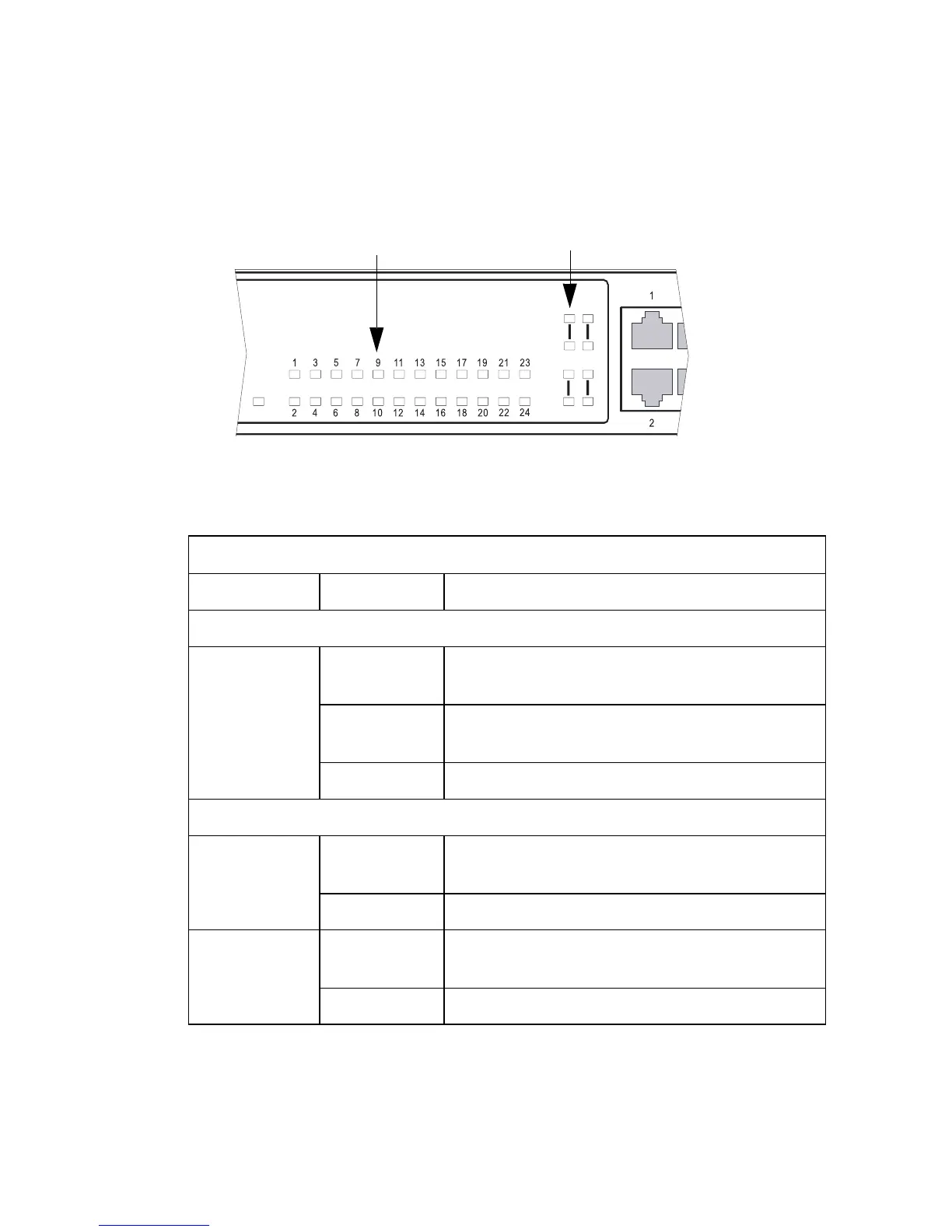

Figure 1-2 Port Status LEDs
Table 1-1 Port Status LEDs
LED Condition Status
RJ-45 Ports
Link/ACT
(Link/
Activity)
On/Blinking
Green
The port has a valid 100 Mbps link. Blinking
indicates activity.
On/Blinking
Amber
The port has a valid 10 Mbps link. Blinking
indicates activity.
Off There is no valid link on the port.
Gigabit/Combination Ports
Upper LED On/Blinking
Green
The port has a valid 10/100 Mbps link. Blinking
indicates activity.
Off There is no valid link on the port.
Lower LED On/Blinking
Amber
The port has a valid 1000 Mbps link. Blinking
indicates activity.
Off There is no valid link on the port.
Port Status LEDs
Combination Gigabit Port Status LEDs
