N ETWORK P LANNING
2-4
Network Aggregation Plan
With 24 parallel bridging ports (i.e., 24 distinct collision domains), the switch
can collapse a complex network down into a single efficient bridged node,
increasing overall bandwidth and throughput.
In the figure below, the 10/100BASE-TX ports on the switch are providing
100 Mbps connectivity through layer 2 switches. In addition, the switch is
also connecting several servers at 1000 Mbps.

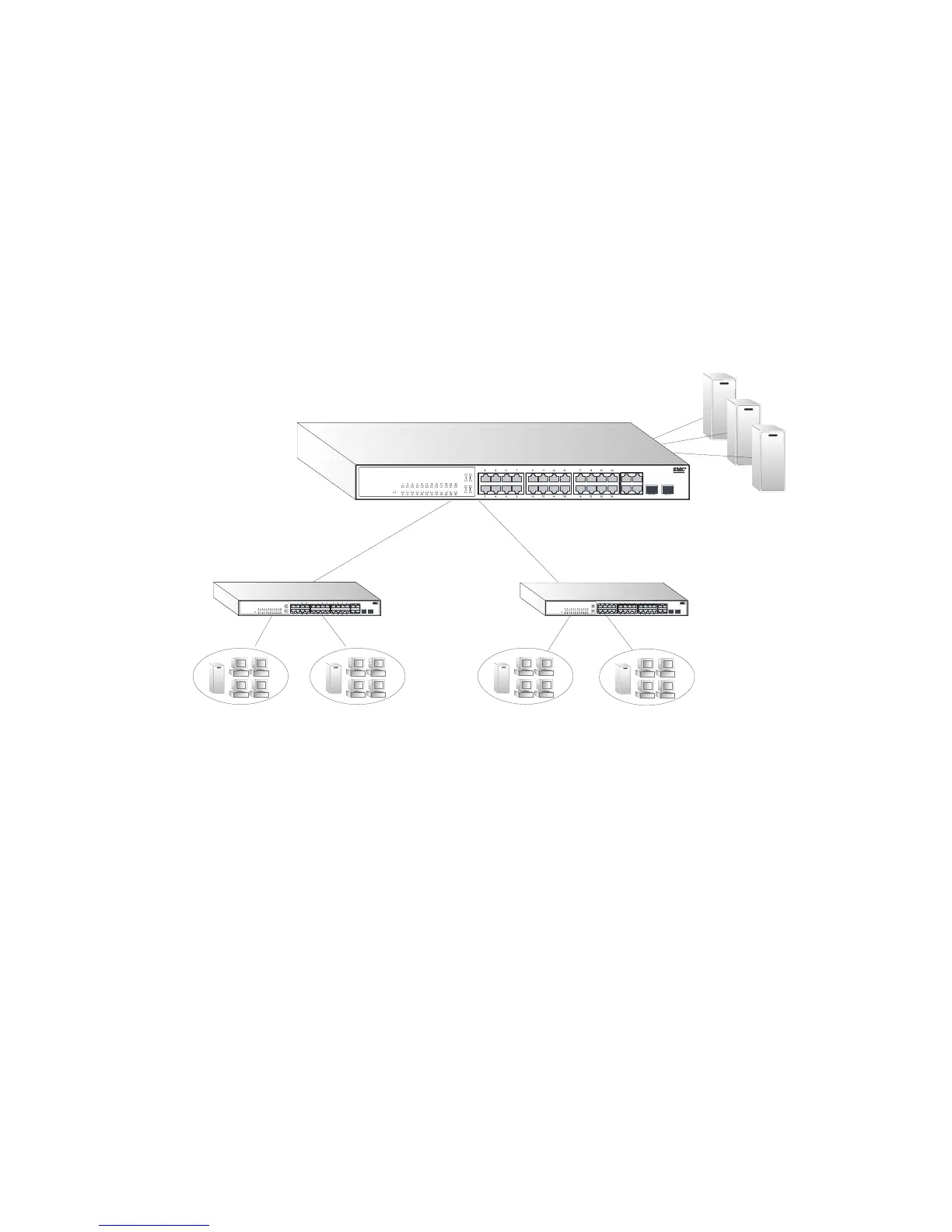

Figure 2-3 Network Aggregation Plan
10/100 Mbps Segments
...
...
Server Farm
SMC6128PL2
TigerSwitch 10/100
25 27
26 28
27 28
25
27
26
28
Link/Act
System
SMC6128PL2
TigerSwitch10/100
25 27
26 28
27 28
25
27
26
28
Link/Act
System
SMC6128PL2
TigerSwitch10/100
25 27
26 28
27 28
25
27
26
28
Link/Act
System
