D ESCRIPTION OF H ARDWARE
1-5

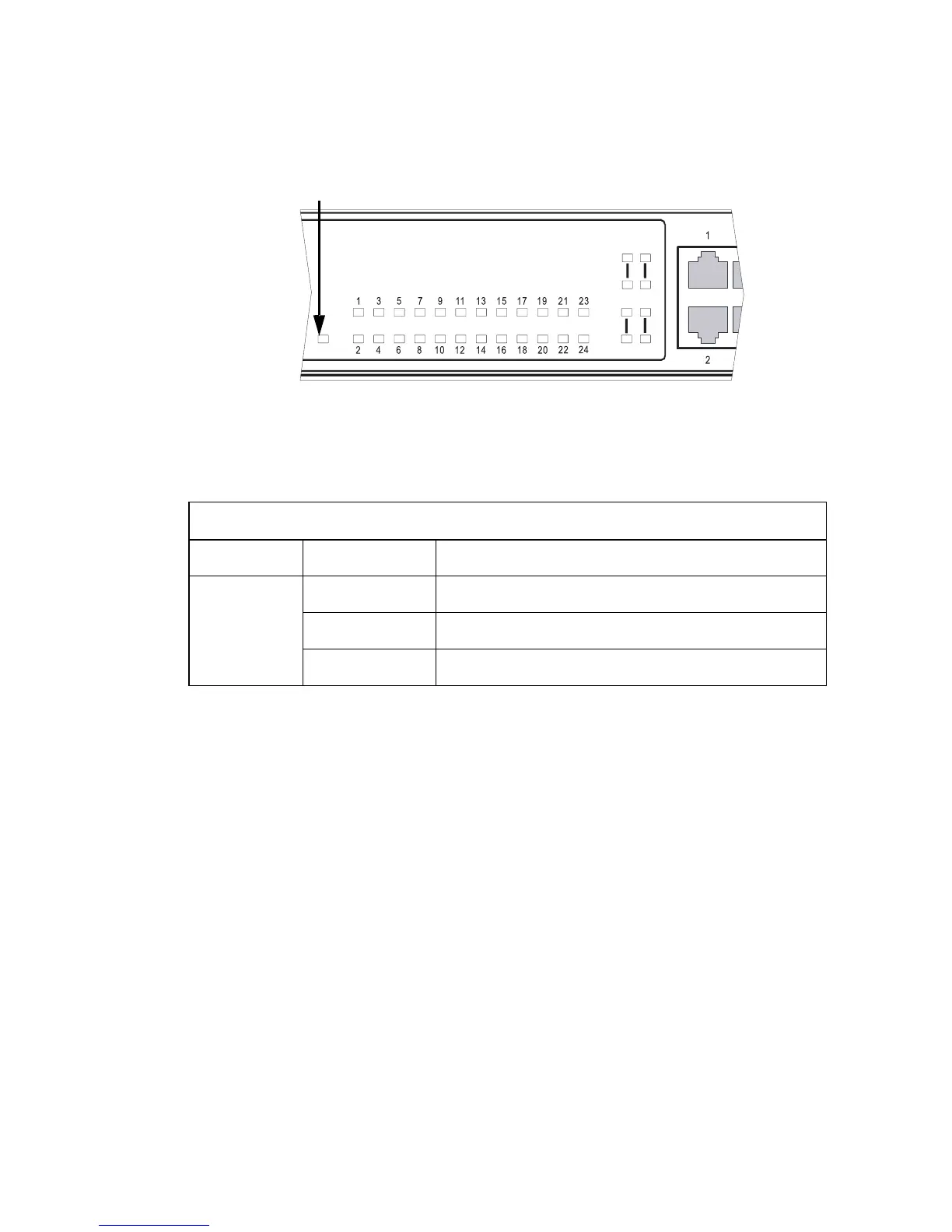

Figure 1-3 System Status LED
Table 1-2 System Status LED
LED Condition Status
System On Green Internal power is operating normally.
On Amber Internal power supply has failed.
Off Power off or failure.
25
27
26
28
Link/Act
System
System Status LED
