SMC Networks TigerSwitch SMC6128PL2 Installation Guide

A PPLICATION E XAMPLES
2-5
Remote Connection with Fiber Cable
Fiber optic technology allows for longer cabling than any other media type. A
1000BASE-SX (MMF) link can connect to a site up to 550 meters away, a
1000BASE-LX (SMF) link up to 5 km, and a 1000BASE-ZX link up to 100
km. This allows the switch to serve as a collapsed backbone, providing direct
connectivity for a widespread LAN.
A 1000BASE-SX SFP transceiver can be used for a high-speed connection
between floors in the same building, a 1000BASE-LX SFP transciever can be
used to connect to other buildings in a campus setting, and a 1000BASE-ZX
SFP transceiver can be used for a long-haul connection to a remote site.

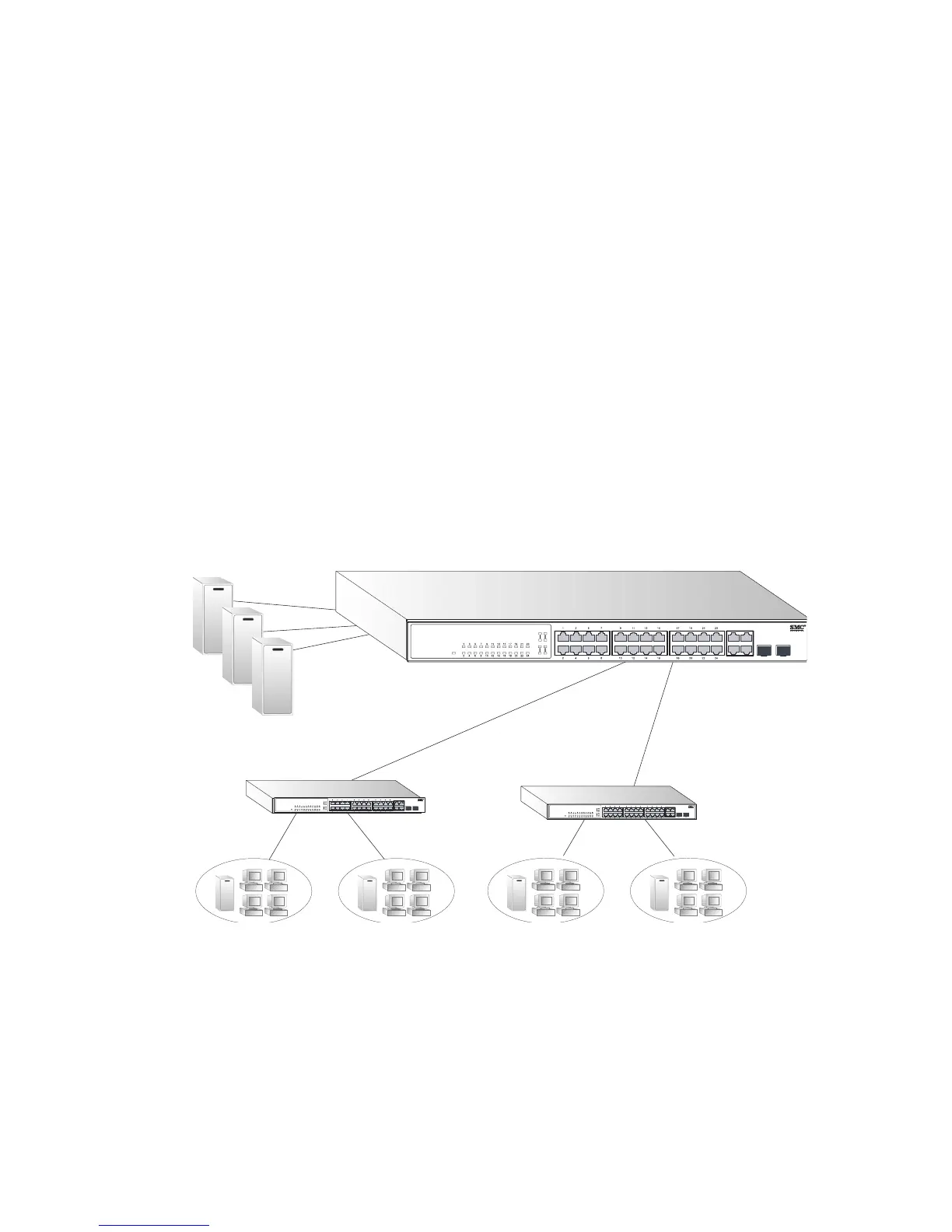

The figure below illustrates the switch connecting multiple segments with
fiber cable.
Figure 2-4 Remote Connection with Fiber Cable
...
...
Headquarters
1000BASE-LX SMF
(5 kilometers)
Remote Switch
10/100/1000 Mbps Segments
1000BASE-SX MMF
(550 meters)
Remote Switch
Server Farm
SMC6128PL2
TigerSwitch 10/10
0
25 27
26 28
27 28
25
27
26
28
Link/Act
System
SMC6128PL2
TigerSwitch10/100
25 27
26 28
27 28
25
27
26
28
Link/Act
System
SMC6128PL2
TigerSwitch10/100
25 27
26 28
27 28
25
27
26
28
Link/Act
System
