Making VLAN Connections
These switches support VLANs which can be used to organize any group of
network nodes into separate broadcast domains. VLANs confine broadcast
traffic to the originating group, and can eliminate broadcast storms in large
networks. This provides a more secure and cleaner network environment.
VLANs can be based on untagged port groups, or traffic can be explicitly
tagged to identify the VLAN group to which it belongs. Untagged VLANs
can be used for small networks attached to a single switch. However, tagged
VLANs should be used for larger networks, and all the VLANs assigned to
the inter-switch links.
These switches also support multiple spanning trees which allow VLAN
groups to maintain a more stable path between all VLAN members. This can
reduce the overall amount of protocol traffic crossing the network, and
provide a shorter reconfiguration time if any link in the spanning tree fails.

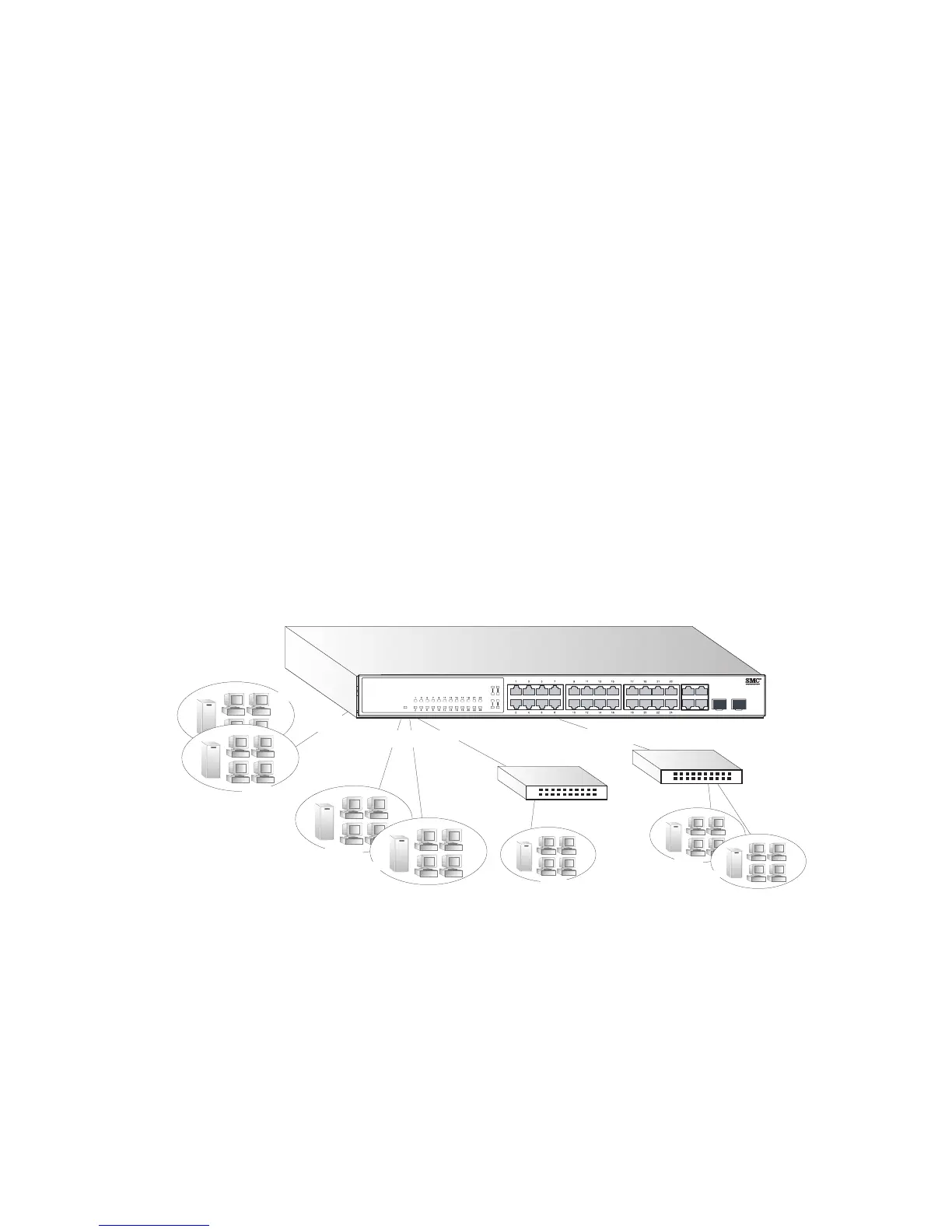

Figure 2-5 Making VLAN Connections
Note:
When connecting to a switch that does not support IEEE 802.1Q VLAN
tags, use untagged ports.
Finance
Marketing
VLAN 3
Untagged Ports
VLAN
unaware
switch
Tagged Port
VLAN
aware
switch
Tagged
Ports
Finance
VLAN 3
R&D
VLAN 2
Testing
R&D
Testing
VLAN 1
VLAN 2
VLAN 4
VLAN 1
SMC6128PL2
TigerSwitch 10/100
25 27
26 28
27 28
25
27
26
28
Link/Act
System
