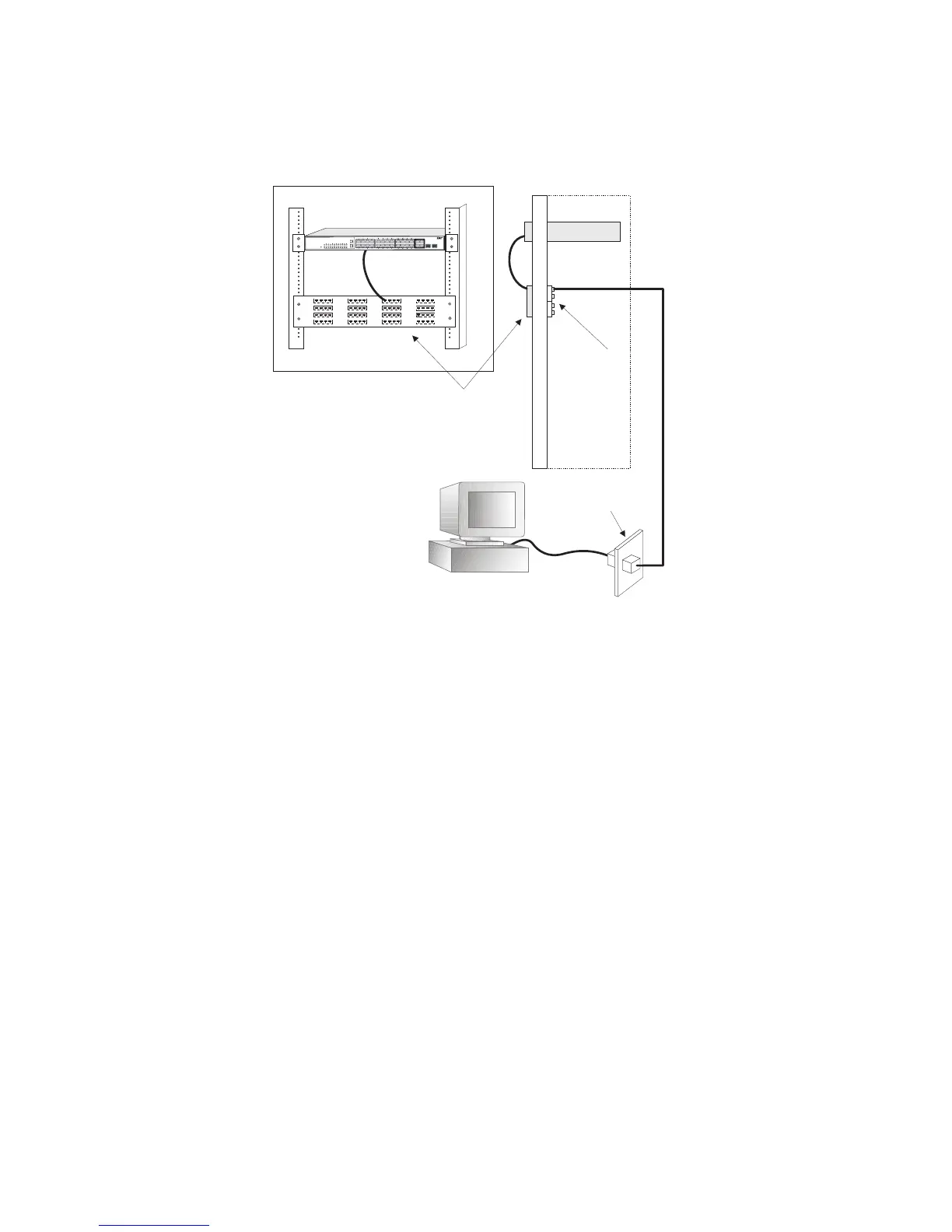

Figure 4-2 Network Wiring Connections
Fiber Optic SFP Devices
An optional Gigabit SFP transceiver (1000BASE-SX, 1000BASE-LX, or
1000BASE-ZX) can be used for a backbone connection between switches,
or for connecting to a high-speed server.
Each multimode fiber optic port requires 50/125 or 62.5/125 micron
multimode fiber optic cabling with an LC connector at both ends. Each
single-mode fiber port requires 9/125 micron single-mode fiber optic
cable with an LC connector at both ends.
Warning: This switch uses lasers to transmit signals over fiber optic
cable. The lasers are compliant with the requirements of a
Class 1 Laser Product and are inherently eye safe in normal
operation. However, you should never look directly at a
transmit port when it is powered on.
