I
NSTALLING
AN
O
PTIONAL
SFP T
RANSCEIVER
3-7
Installing an Optional SFP Transceiver

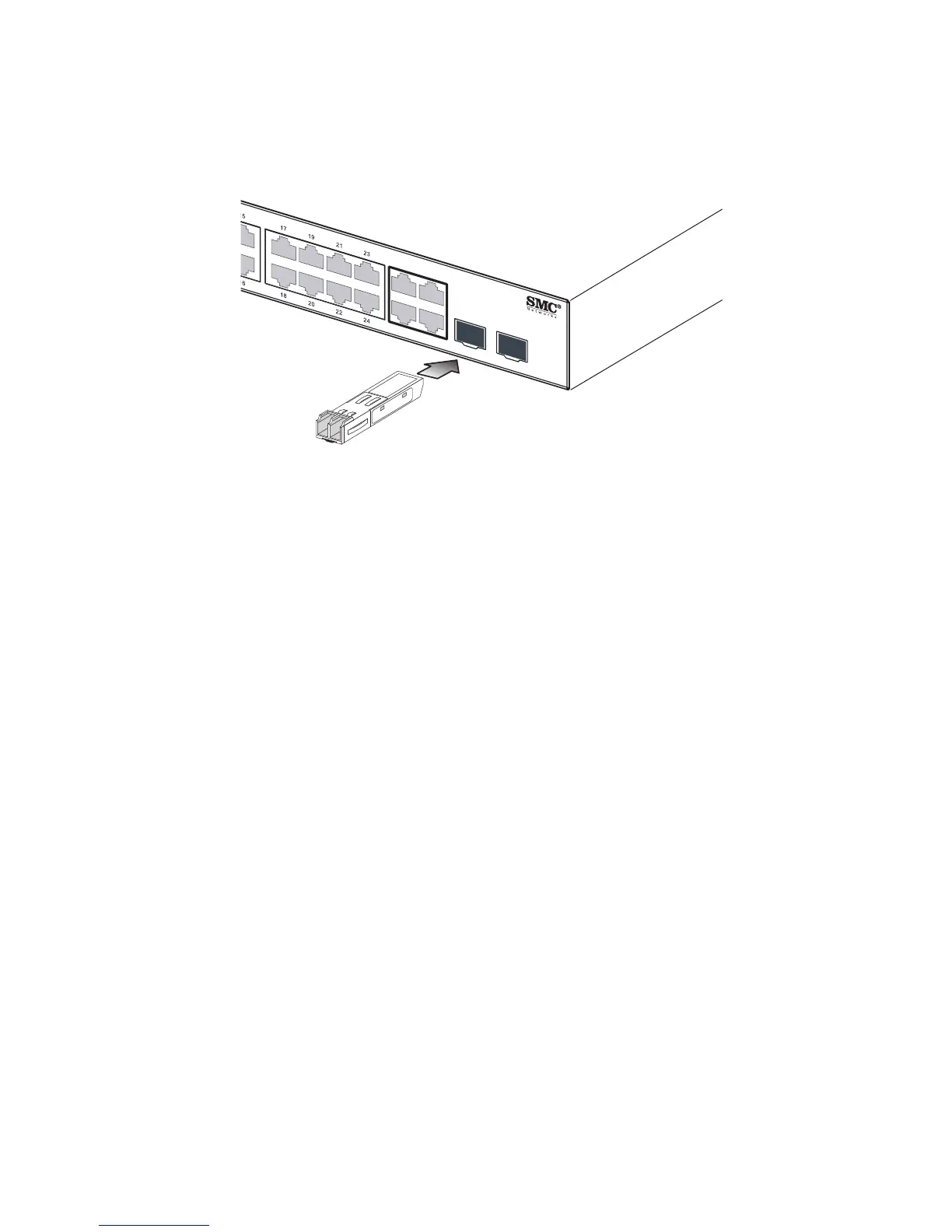

Figure 3-5 Inserting an SFP Transceiver into a Slot
The SFP slots support the following optional SFP transceivers:
• 1000BASE-SX
• 1000BASE-LX
• 1000BASE-ZX
To install an SFP transceiver, do the following:
1. Consider network and cabling requirements to select an appropriate
SFP transceiver type.
2. Insert the transceiver with the optical connector facing outward and
the slot connector facing down. Note that SFP transceivers are keyed
so they can only be installed in one orientation.
3. Slide the SFP transceiver into the slot until it clicks into place.
Note: SFP transceivers are hot-swappable. The switch does not need
to be powered off before installing or removing a transceiver.
However, always first disconnect the network cable before
removing a transceiver.
Note: SFP transceivers are not provided in the switch package.
TigerSwitch 10/100
25 27
26 28
27 28
