SMC Networks TigerSwitch SMC6128PL2 Installation Guide

N ETWORK P LANNING
2-2
Application Examples
The SMC6128PL2 is not only designed to segment your network, but also to
provide a wide range of options in setting up network connections. Some
typical applications are described in the following pages.
Supplying PoE
The switch is an excellent choice for supplying power to connected PoE
devices such as web cameras, IP telephones or access points. You can easily
connect a PoE device to a switch port and allow power to be supplied over
the connecting cable. Each of the 24 ports on the switch can provide power
to a connected device.

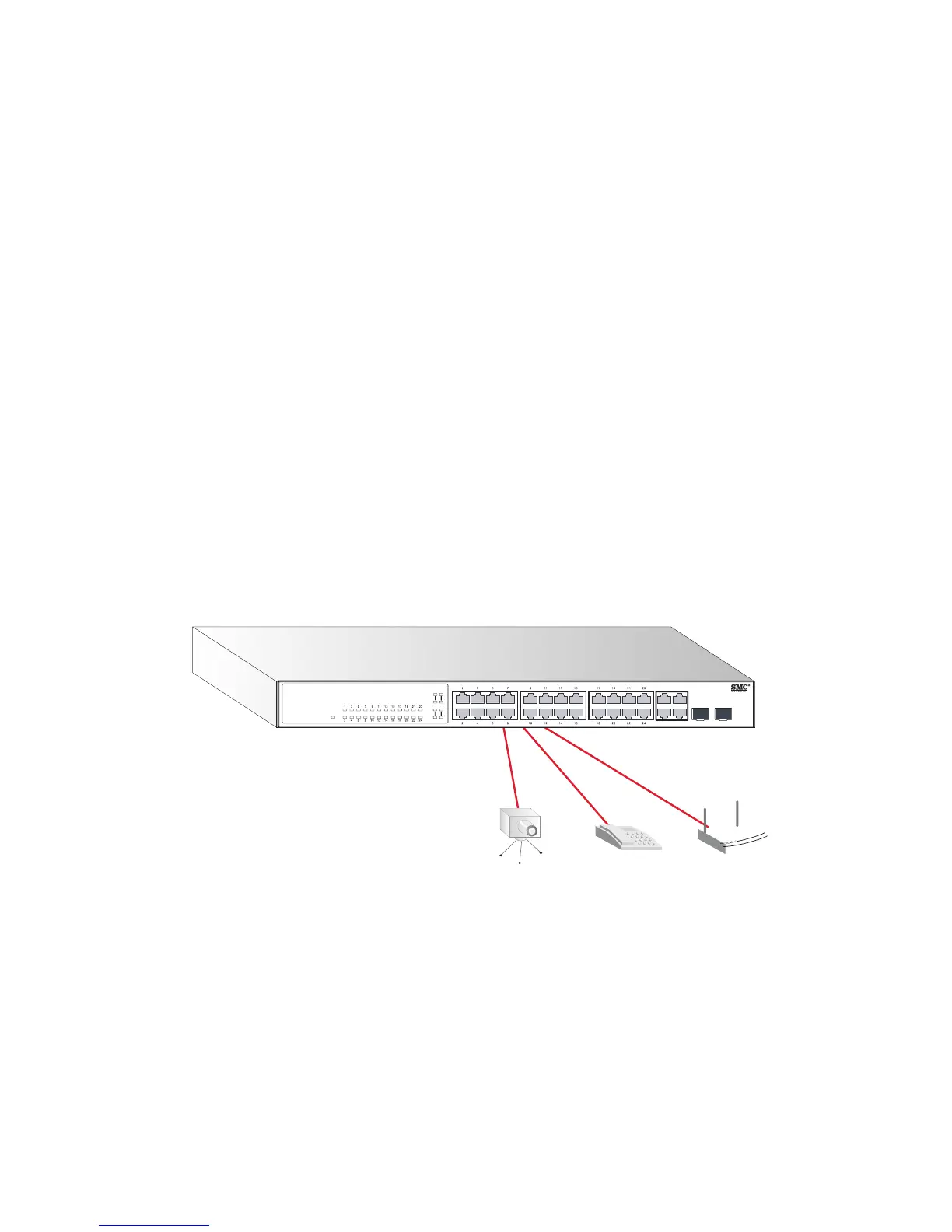

In the figure below, the switch is supplying power to three PoE devices. It is
also providing dedicated 100 Mbps full-duplex data connections to the
devices. In addition, other non-PoE devices can be connected to the switch.
Figure 2-1 PoE Connections
12
3
4
56
7
89
10
11 12
13
14
15 16
17
18 19
20
21 22
23
24
26
Console
25
1
2
11
12
13
14
23
Link/Act
PoE
25
26
Pwr
Diag
Stack
Mode
PoE/ Link
RPS
Power-over-Ethernet Devices
24
Web Camera
IP Telephone
Access Point
SMC6128PL2
TigerSwitch 10/100
25 27
26 28
27 28
25
27
26
28
Link/Act
System
