Copyright 12/14 42 S/N XXXX WO#XXXXXX
Smoracy, LLC
MODEL 3680
RECYCLER MAINTENANCE DOOR
ENGINE DISABLE PLUG OPERATION
FIGURE 5
FIGURE 2
2 Wires To
Electric Socket
Wires Loop Inside
Plug Connector
FIGURE 1
Recycler
Maintenance
Door
Engine
Disable
Plug
Maintenance
Door
FIGURE 4
Plug Connector
Connecting
Cable
FIGURE 3
Discharge
Direction
Recycler
Maintenance
Door Engine
Disable Plug
Mount
Electric
Socket

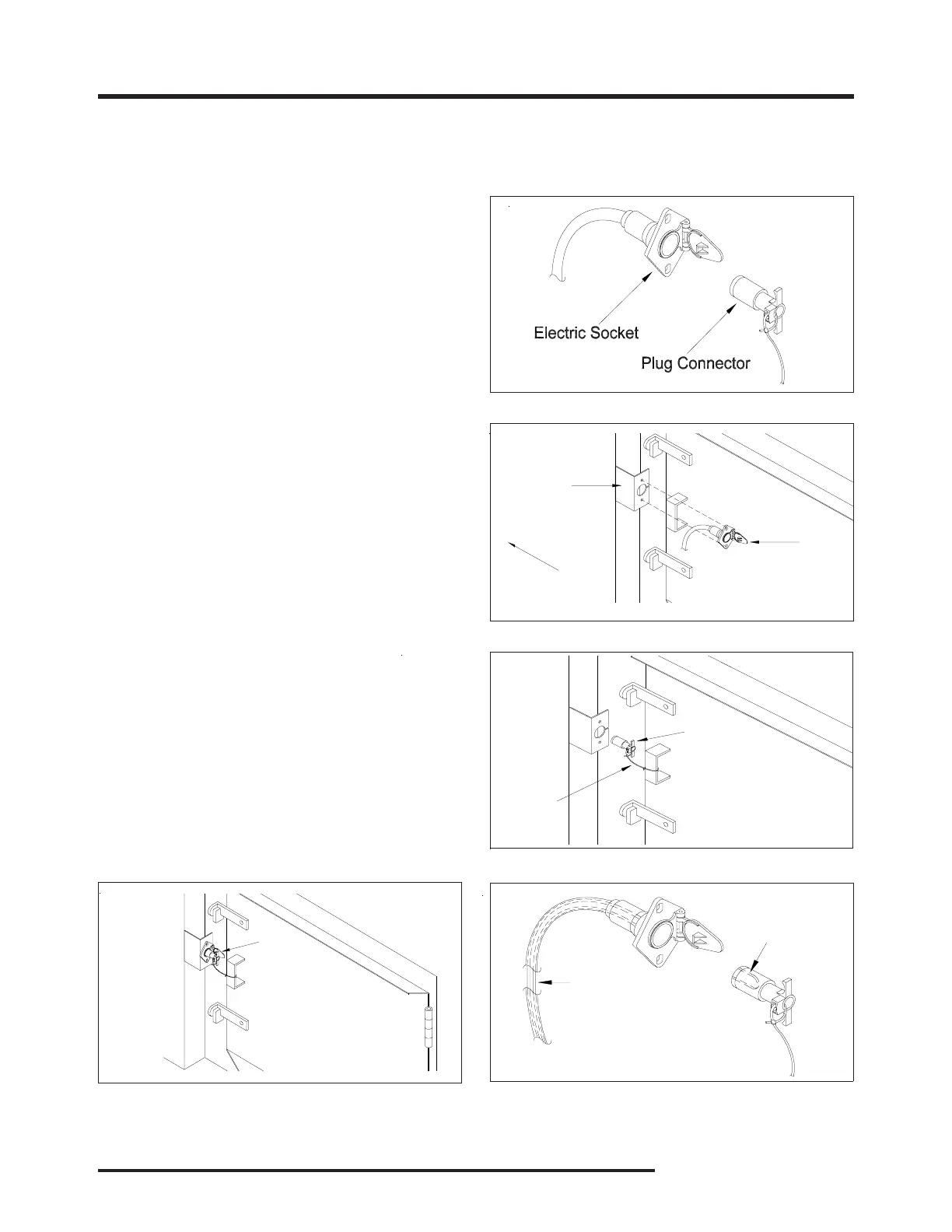

The recycler maintenance door engine disable plug is
installed for safety purposes. It is designed to shut down
the engine if the plug is not properly in place holding the
maintenance door in the closed position. Correctly installed
and maintained, the engine will not start or it will shut off if
the plug connector is removed.
The recycler maintenance door engine disable plug is
located on the maintenance door of the recycler (see figure
1). The maintenance door engine disable plug is made up
of two parts: an electric socket and a plug connector (see
figure 2). The electric socket is bolted to the recycler engine
disable plug mount bracket (see figure 3) and the plug
connector is attached by a cable to the maintenance door
handle (see figure 4).
If the recycler maintenance door engine disable plug is
not properly installed then the engine will not start or run. If
the recycler maintenance door engine disable plug becomes
disconnected while the recycler engine is running the engine
will be shut down or be disabled from running. This is for
safety purposes, to ensure that the maintenance door is
not opened while the engine is running.
The recycler maintenance door engine disable plug is
wired to shut down the recycler engine. There are two
wires connected into the electric socket which are tied into
the engine electronics. There is a wire loop installed inside
the plug connector so when the two are connected the
electric circuit is complete. When the plug connector is
pulled out of the electric socket the electric circuit is broken,
disabling the engine (see figure 5).
CONTROLS/START UP PROCEDURES
