Snap-On Solus Legend User Manual

Vehicle Code Scan / (Snap-on Cloud) Using Code Scan
54

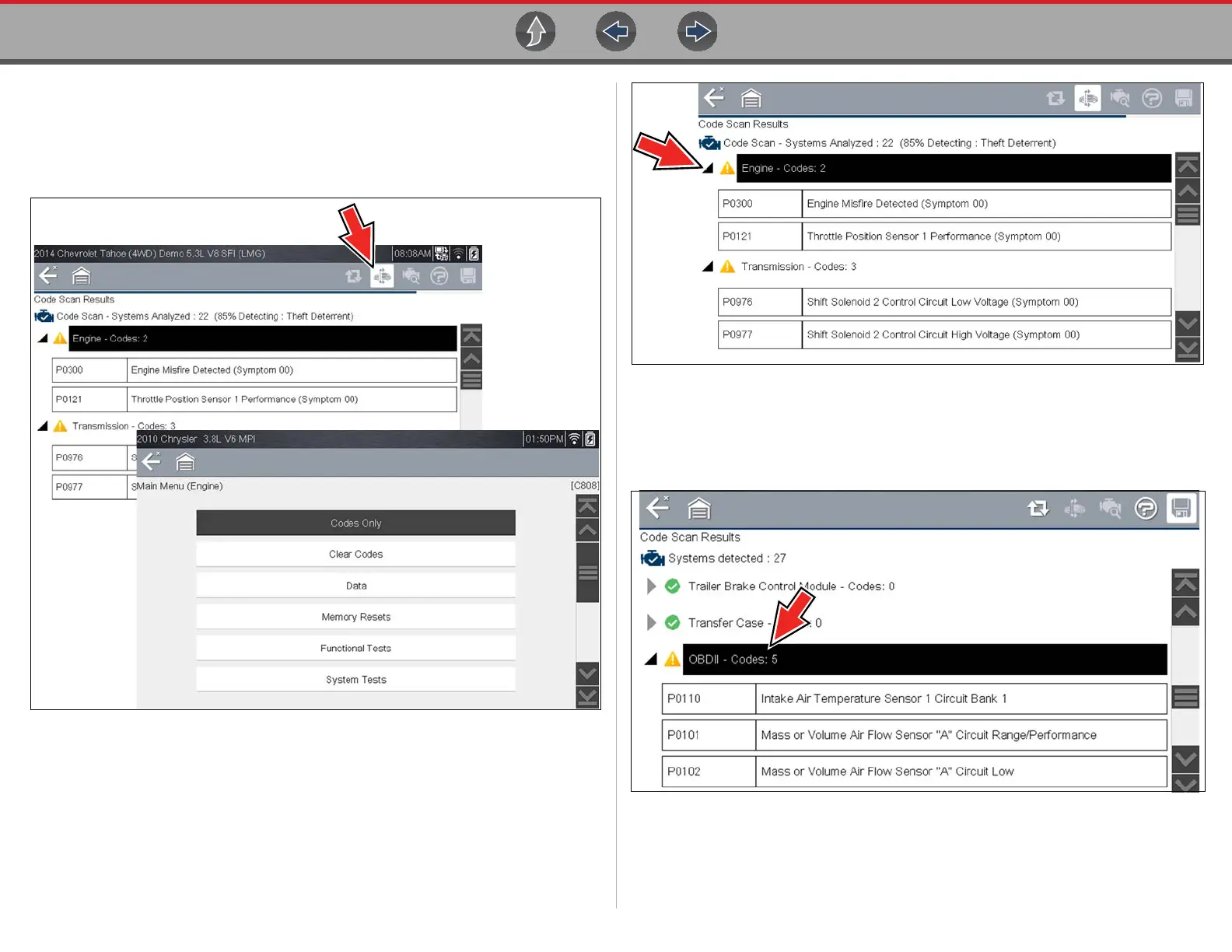

8.1.2 List of All the Systems Analyzed with DTCs Totals
A categorized system list with DTC totals is displayed in the order they are scanned.
To view the main menu for a system in the list, select the system, then select the
System icon (Figure 8-5).
Figure 8-5 System icon (opens Main Menu)
Select the expand/collapse icon (Figure 8-6) on the left side of a system category
title to expand or collapse a systems’ DTC list.
Figure 8-6 Expand/Collapse Icon (expanded result)
8.1.3 Global OBDII DTCs
Towards the end of the Code Scan list Global OBDII DTCs are displayed.
Figure 8-7

Snap-On Solus Legend Specifications

General

Data Logging	Yes
Connectivity	Wi-Fi, USB
Battery	Rechargeable lithium-ion
Weight	2.2 lbs (1.0 kg)
Operating System	Android
Software	Snap-On Diagnostics software
