Scanner - Motorcycle System Main Menu Options
47
7.3 System Main Menu Options
Once a System is selected (e.g. Engine, Antilock Brakes, etc) is selected, the
diagnostic tool will attempt to establish communication with the motorcycle, then
(once connected) will display (Figure 7-7) the system main menu (available tests).

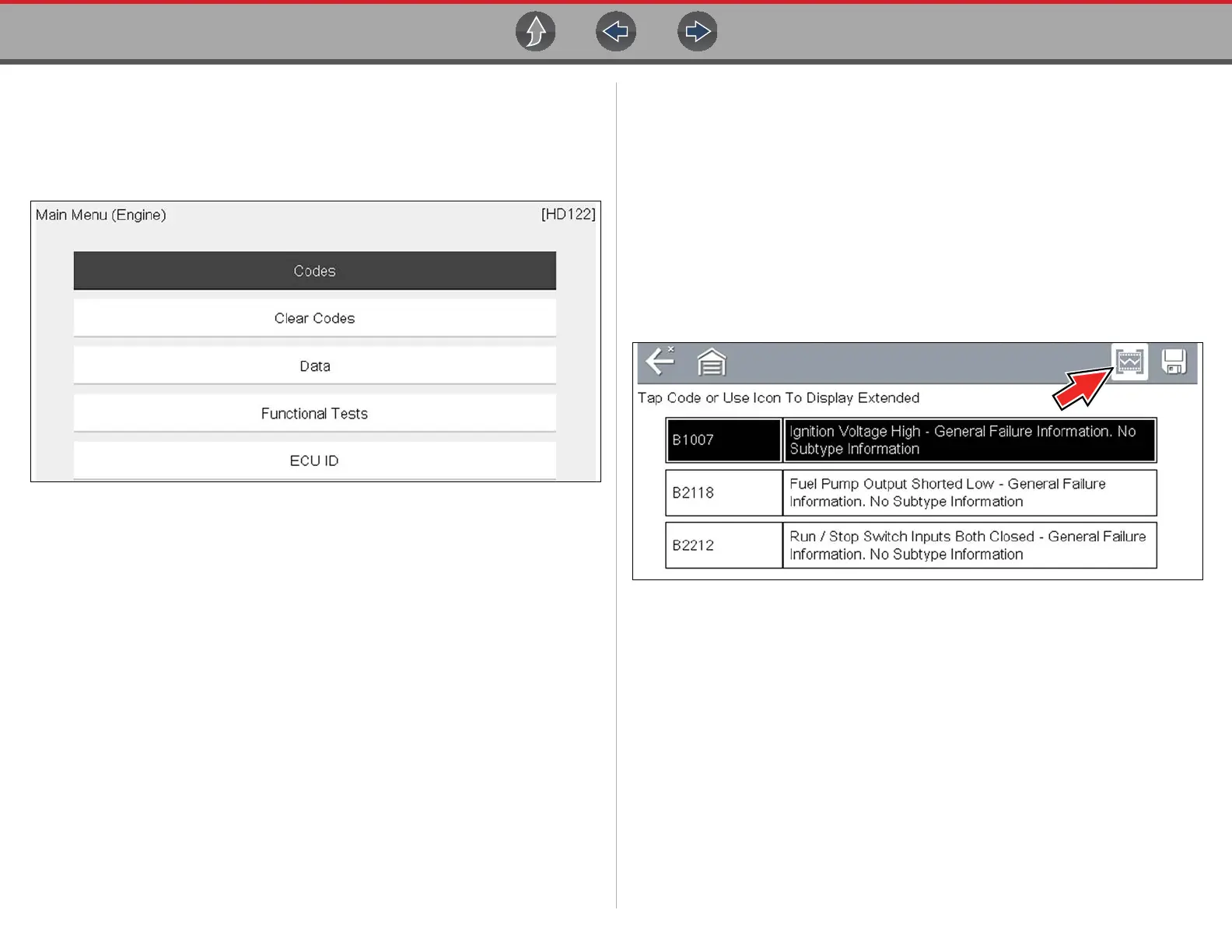

Figure 7-7 Typical (Engine) main menu
Menus and navigation will vary by motorcycle make and model.
The System Main Menu may include these typical selections:
Codes—displays diagnostic trouble code (DTC) records from the control
modules. Selecting may open a submenu of viewing options. See Viewing
Codes on page 47.
Clear Codes—erases DTC records and other data from the ECM. This
selection is found on a Codes submenu for some models. See Clear Codes on
page 48.
Data— displays PID data from the control modules. Selecting may open a
submenu of viewing options. See View Saved Data on page 75.
Functional Tests—provides specific subsystem tests. The tests vary
depending on the manufacturer and model. See Functional Tests on page 38.
ECU ID—provides specific ECU information for the selected module.
7.4 Codes - View / Scan / Save
7.4.1 Viewing Codes
After selecting a System, “Codes” may appear as a menu selection (Figure 7-7)
from the Main System Menu. Depending on the motorcycle manufacturer, a
different name may be used (e.g. Codes Menu, Codes Only, Codes (No Data),
Service Codes, etc).
Selecting this function opens a list of diagnostic trouble codes (DTCs) stored in the
selected control module. The code list includes the DTC and a brief description
(Figure 7-8).
Figure 7-8 DTC results
Select the code or the Extended DTC Data icon (Figure 7-8) for additional
information.The Extended DTC Data icon only displays if the motorcycle supports
this feature and information is available.
Extended DTC Data may include:
Odometer Mileage
Occurrence
Trips Since First Failure
Trips Since Last Failure
