OBD-II/EOBD OBD-II/EOBD Menu
70
10.2.2 OBD Direct
OBD Direct includes the following menu and submenu choices:
OBD Diagnose
Start Communication - initiates a test session
Connector Information - provides DLC location details
Manual Protocol Selection - provides choices for communication protocol
OBD Training Mode - allows you to familiarize yourself with the capabilities of
OBD-II/EOBD while navigating through menus without being connected to a
vehicle.
Start Communication
Use the following procedure to begin an OBD-II/EOBD test session:
z To perform an OBD-II/EOBD Test:
1. Connect the data cable to the test vehicle.
2. Select Start Communications from the OBD-II/EOBD menu.
A series of messages are displayed indicating automatic detection of vehicle
type (12 or 24 V) has occurred and then the detected controllers are displayed.
The diagnostic tool establishes a communication link with the test vehicle, then
opens an information screen (Figure 10-4).

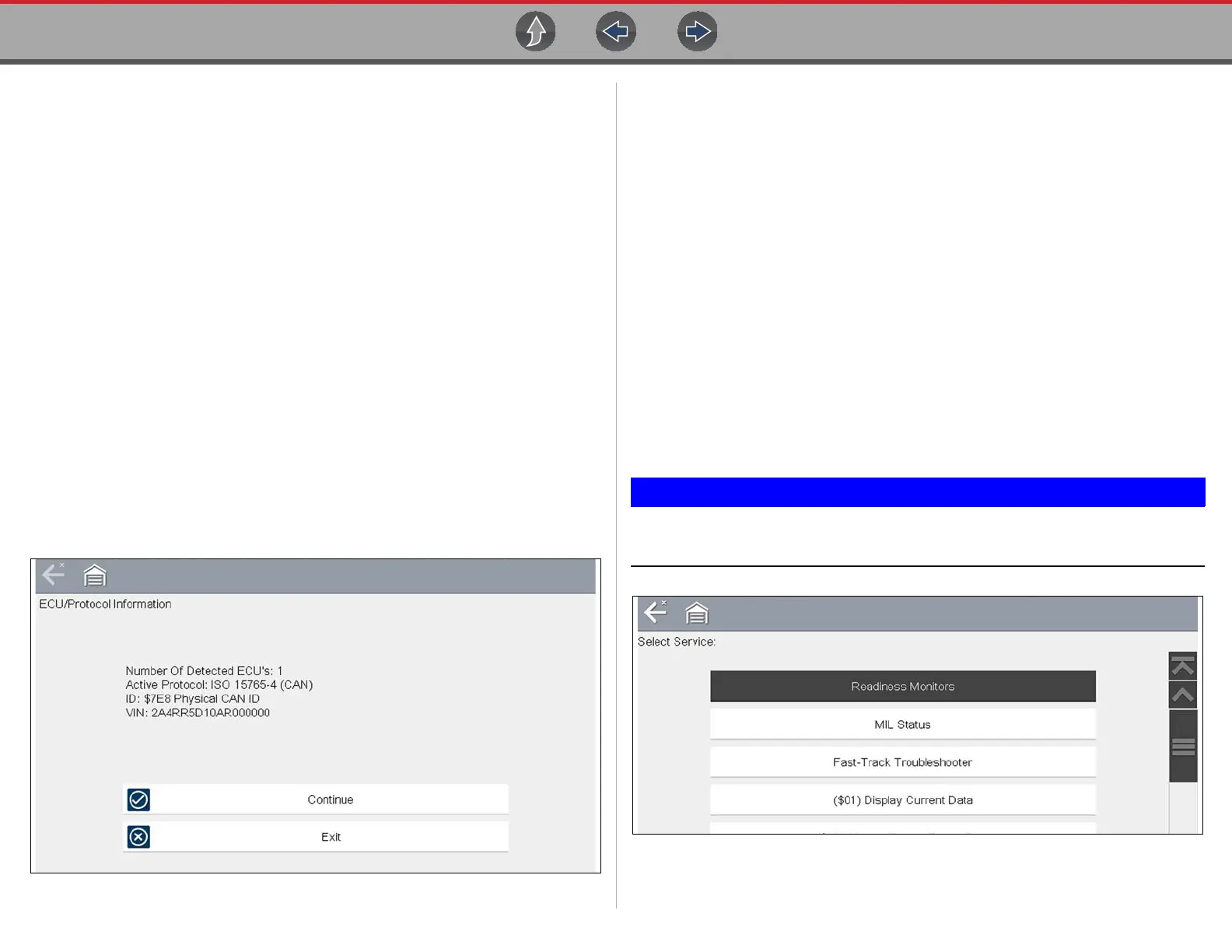

Figure 10-4 Protocol information
The information screen shows how many control modules were detected,
which ECM is communicating, and which communication protocol is being
used.
3. Select Continue.
A Select Service menu of available tests opens:
Readiness Monitors on page 71
MIL Status on page 71
Fast-Track Troubleshooter on page 71
($01) Display Current Data on page 71
($02) Display Freeze Frame Data on page 71
($03) Display Trouble Codes on page 71
($04) Clear Emissions Related Data on page 71
($05, 06, 07) Display Test param./Results on page 72
($08) Request Control of On-board System on page 72
($09) Read Vehicle Identification on page 72
($09) In-use Performance Tracking on page 72
($0A) Emission Related DTC with Permanent Status on page 73
IMPORTANT
All service modes are not supported by all vehicles, so the available
menu selections will vary.
Figure 10-5 Service mode menu
4. Select a test to continue.
