Page 6 - 10 UL25/UL32/UL40
ILLUSTRATED PARTS LIST
DC POWER OPTION - 068009-011
ITEM PART NUMBER DESCRIPTION QTY
1 068214-000 Battery box 1
2 3050002 Battery 1
3 514015-000 UL - China charger 1
4a 068116-001 Power unit (SN before 059999), See identication below 1
4b 515280-000 Power unit (SN after 060000), See identication below 1
6 513896-001 Black cable 25mm CSA - see note 1 2
7 513895-000 Ring crimp M10 2
9 029902-000 Conn 175 amp 2
12 011941-005 Fitting, straight 6MB - 6MJ 1
15 011252-008 Screw HHC 1/4 - 20 x 1 2
16 056058-040 M6 x 40 Hexhead UL 8
20 056069-006 M6 at washer UL 8
26 068007-023 Control box w/electric down 1
27 011240-004 Washer 1/4 at 4
28 011252-004 Screw HHC 1/4 - 20 x 1/2 4
29 010154-000 Terminal cover 2
30 514459-000 D.C. power harness 1
Table 6-4: DC power option components and part numbers.

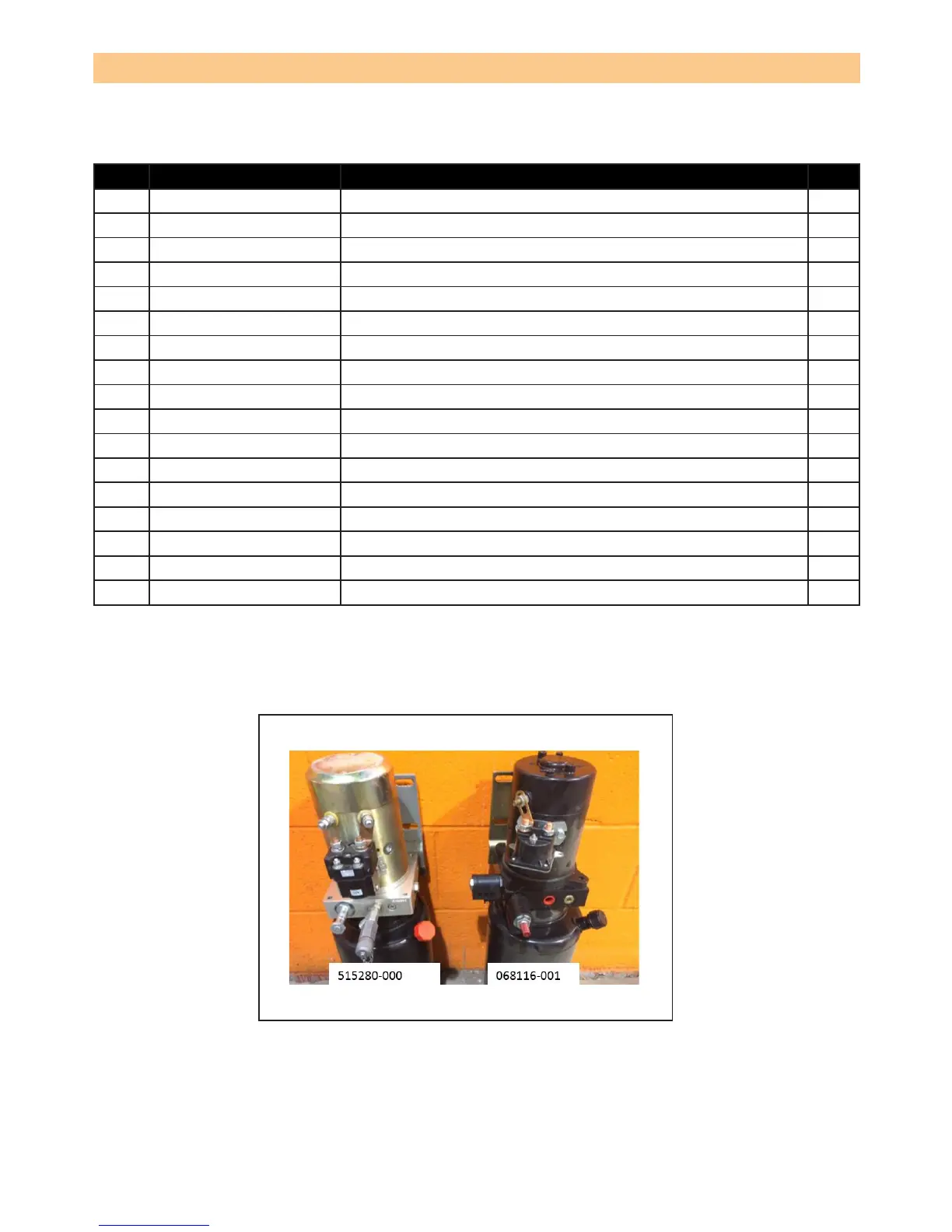

DC power unit identication
