Page 6 - 19UL25/UL32/UL40
ILLUSTRATED PARTS LIST
3
rd
STAGE MAST ASSEMBLY
UL25 - 068056-001
UL32 - 068056-002
UL40 - 068056-003
ITEM PART NUMBER DESCRIPTION QTY
1 068060-001 3
rd
stage mast assy UL25 1
068060-002 3
rd
stage mast assy UL32 1
068060-003 3
rd
stage mast assy UL40 1
3 068139-000 Shaft 1
4 011735-012 Pin 1
6 062753-000 Strap assy 1
8 068137-000 Sheave 1
9 062642-010 Bearing 3
10 011786-005 MAC. Bushing 2
Table 6-9: 3
rd
stage mast assembly components.

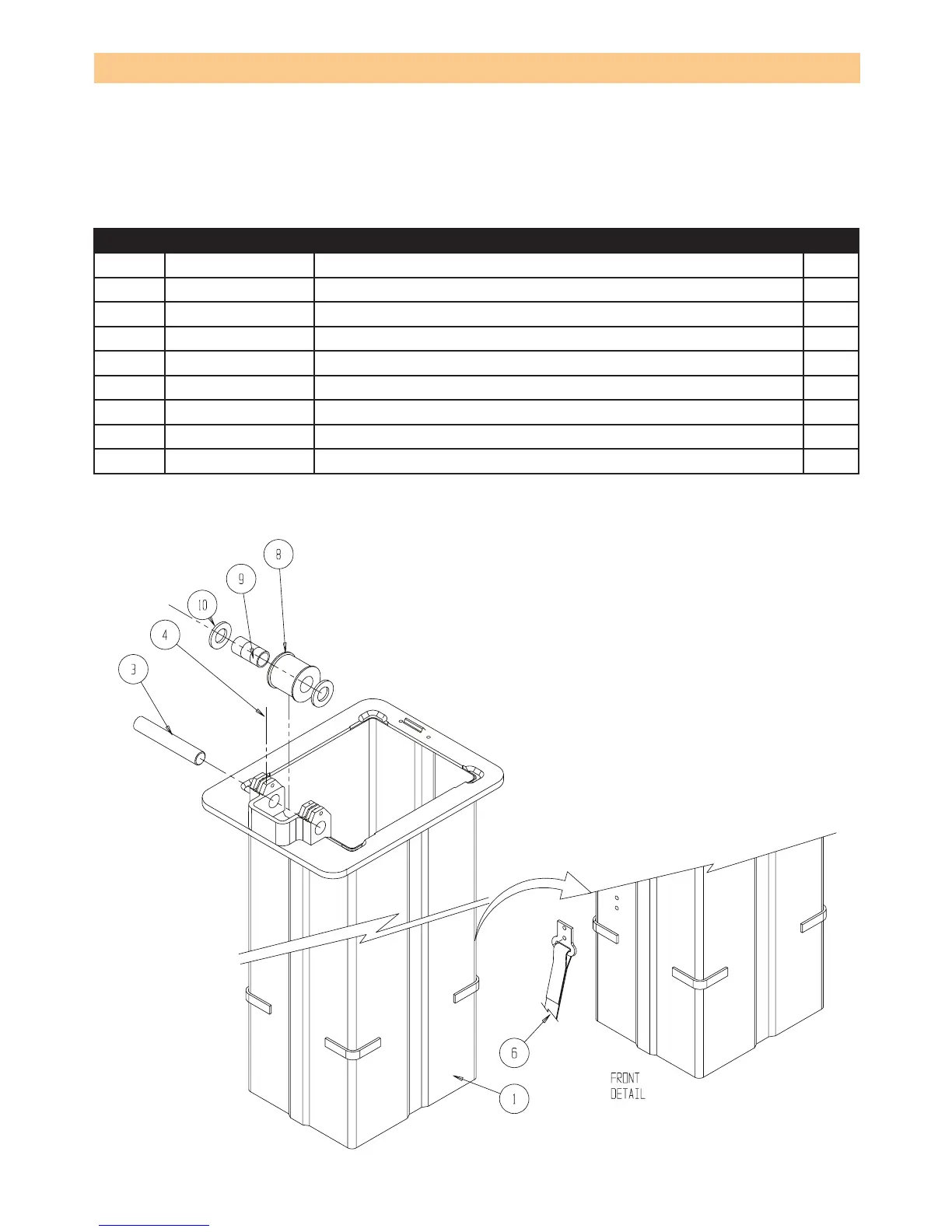

Figure 6-9: 3
rd
stage mast assembly illustration.
