Page 6 - 23UL25/UL32/UL40
ILLUSTRATED PARTS LIST
5
th
STAGE MAST ASSEMBLY
UL25 - 068066-001
UL32 - 068066-002
UL40 - 068066-003

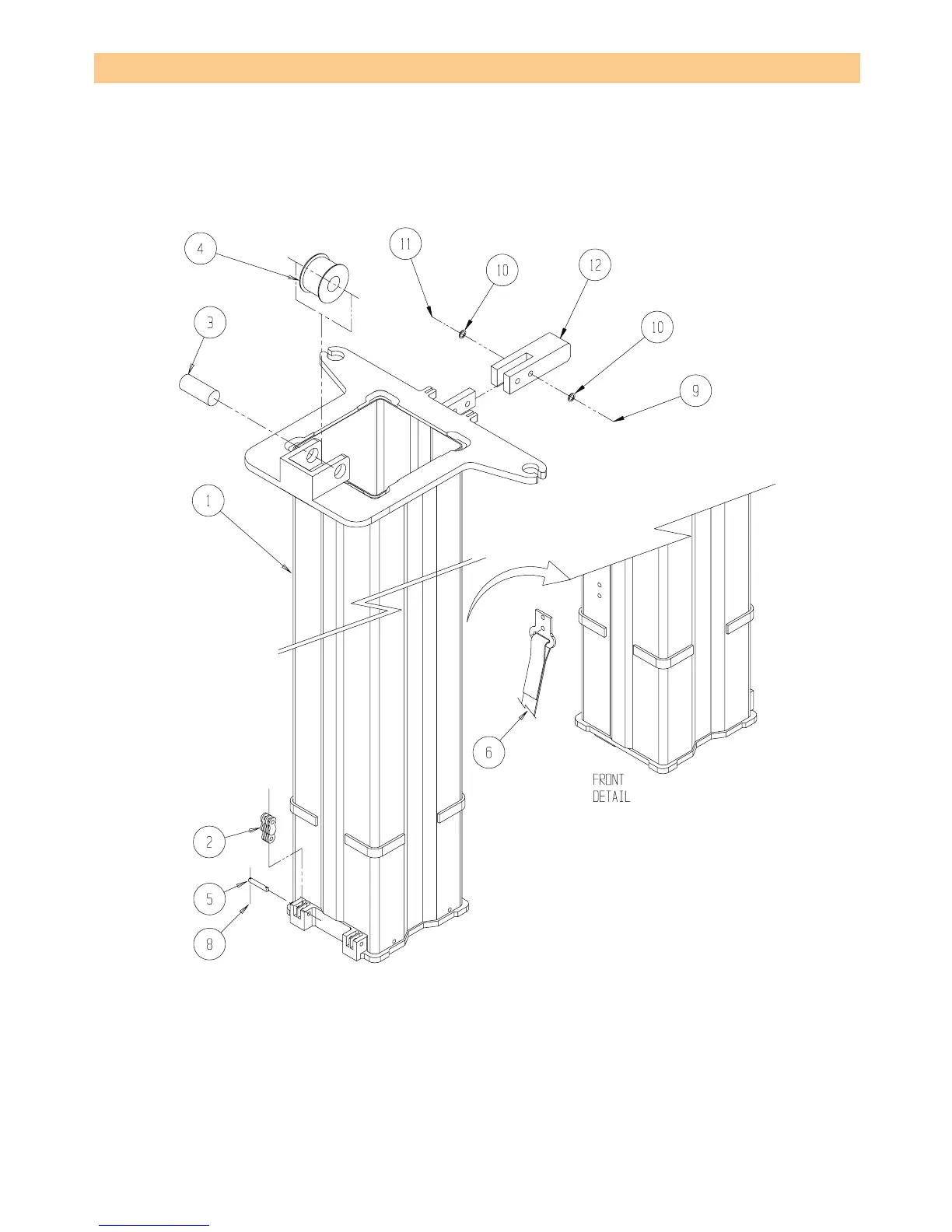

Figure 6-11: 5
th
stage mast assembly illustration.
