socomec DELPHYS MP elite User Manual

UPS/NTA GB/DELMP_EXPC1C3C6_B 12
2.4 MEANING OF THE PICTOGRAMS
Rectifier and battery charger
Battery
Inverter
Output to the loads
Transfer impossible
Maintenance bypass
1
2
3
4
5
6
7
8
9
10
11
General alarm

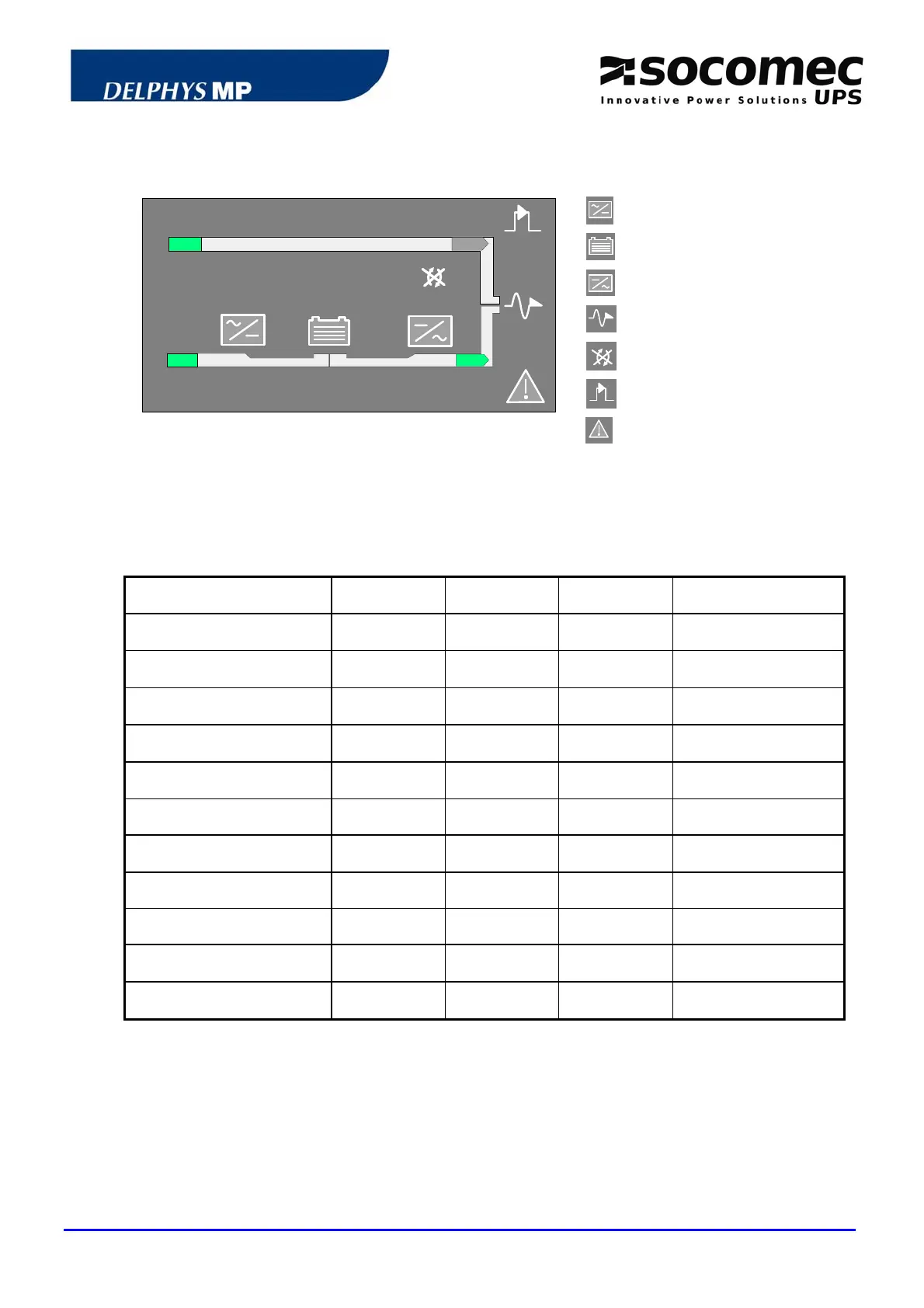

2.4.1 Mimic panel description
SYMBOLS GREEN YELLOW RED BLINKING
1 RECTIFIER INPUT
Within
tolerances
Without
tolerances
2 BYPASS INPUT
Within
tolerances
Without
tolerances
3 RECTIFIER
ON
Operating and
alarm ON
4 BATTERY
Charged discharging
Green: charging
Yellow: battery alarm
5 INVERTER
ON
Operating and
alarm ON
6 LOAD ON INVERTER
OK INV switch ON
7 LOAD ON MAINS
If Eco Mode
active
BYP
switch ON
8 LOAD OUTPUT
supplied
OFF
Red: imminent stop
9 TRANSFER
Impossible
10 MAINTENANCE BYPASS
ON
Yellow: maint. Byp
alarm
11 GENERAL ALARM
Alarm ON
Yellow: communication
error
