3.7 OPERATING THE MODULAR SYSTEM
Each unit has it’s own control panel. The menu structure is divided into two distinctive parts
(Please, refer to sections
3.5 and 3.6)
- the first one is for operating the system
- the second one is intended for operating the unit.
Note: controls are only displayed when available.
3.7.1 Starting up the modular system
Prior to any operation, please refer to the basic scheme of the system.
Conditions to be completed:
- the system is live on the input of each UPS unit,
- the battery circuit of each UPS unit is open.
- wait for all the control panels to light up,
In the control panel of one of the units, select:
- menu "UPS SYSTEM",
- menu " UPS COMMANDS"
- and submenu "AUTOMATIC STARTUP".
The startup of all the units is run through an interactive procedure. Just follow the
instructions displayed and validate with the "ENTER" key. Pressing the ESC key cancels
the action.
At the end of this stage, the load is protected by the UPS units.

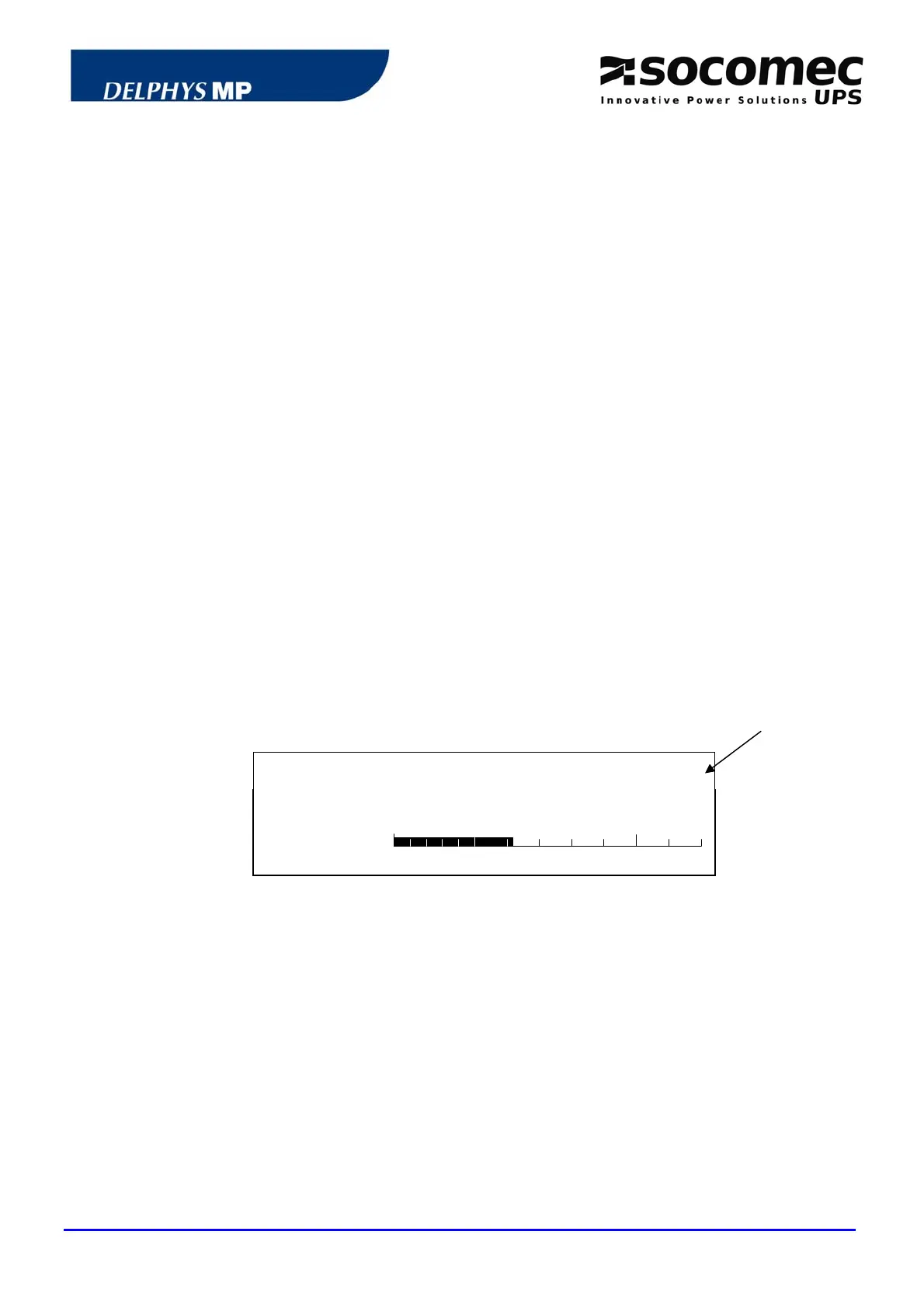

The display indicates the end of the automatic start up procedure:
Load protected by inverter
1 2 3 4 5 6
Load rate:
0
50 100
120
UNIT 2
Number of
operating units
