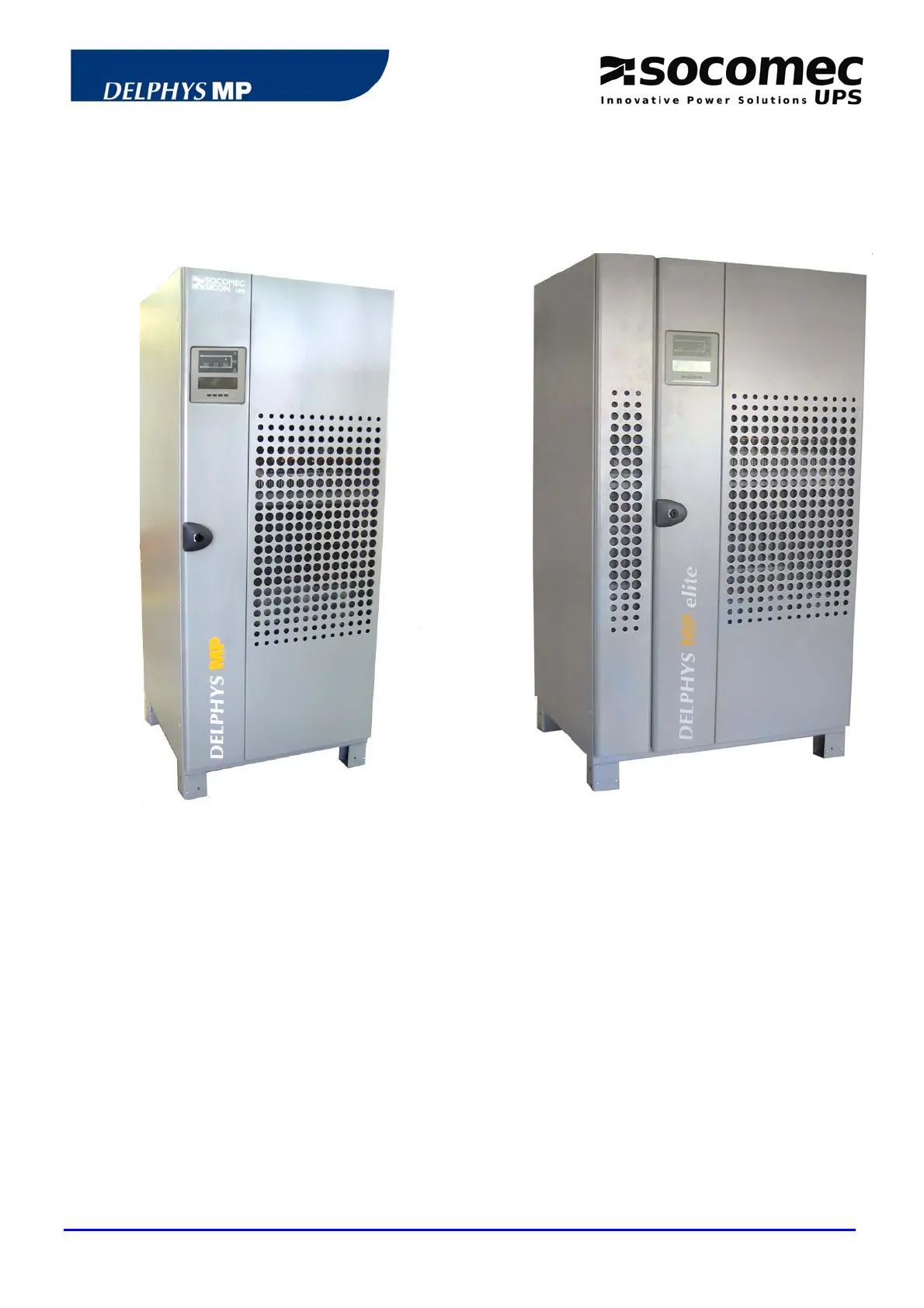

1.4 LAYOUT OF DELPHYS MP AND DELPHYS MP ELITE SYSTEMS
DELPHYS MP DELPHYS MP elite
1.5 POWER SUPPLY INPUTS
Three power supply inputs are needed to operate the system:
- voltage on input 1 for the supply to the rectifier,
- voltage on input 2 for the supply to the automatic bypass (depending on the system, inputs 1
and 2 can be common),
- the DC voltage for the battery (about 450Vdc).
