5.1 LCD DISPLAY

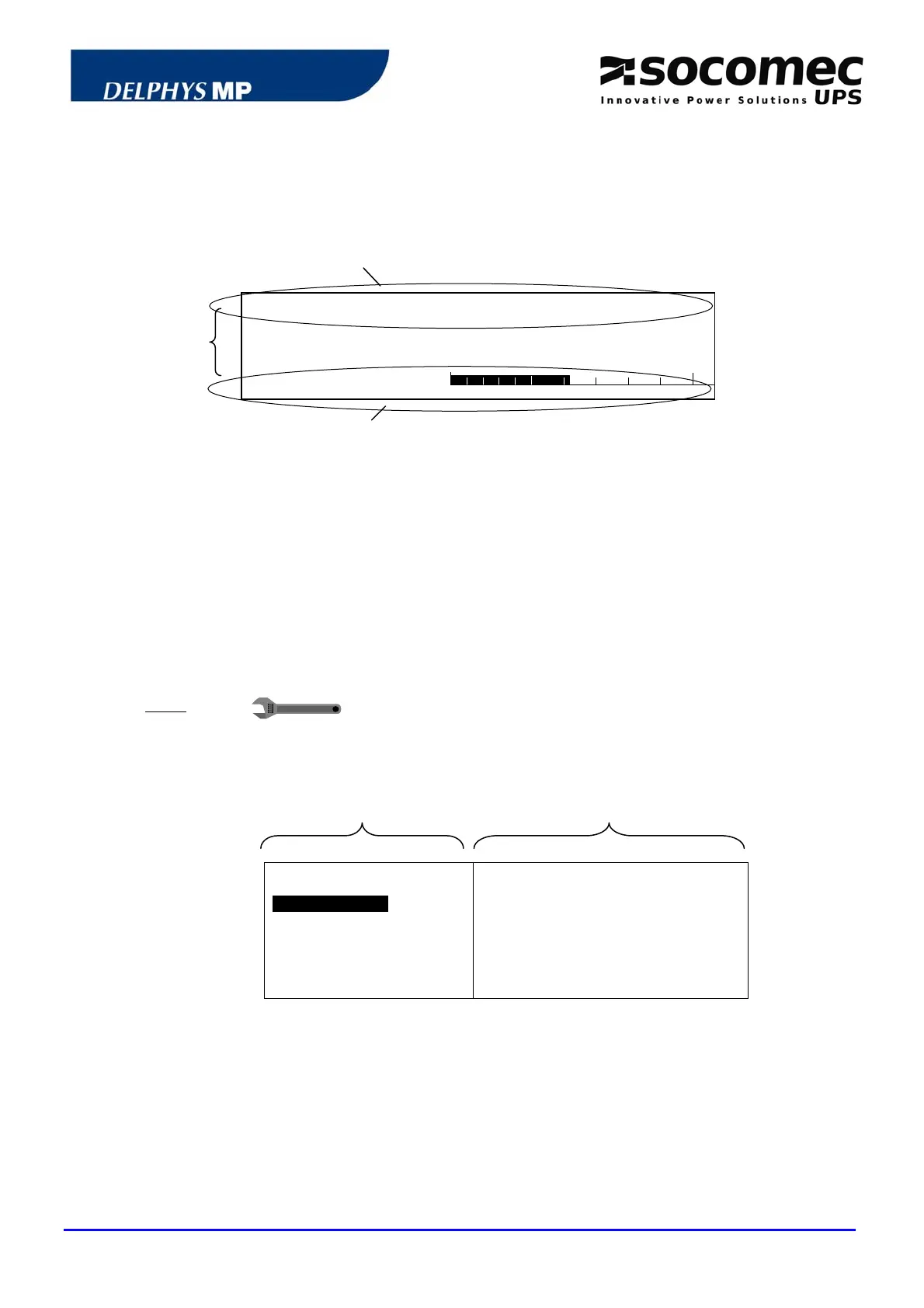

Various screens can be displayed:
- the permanent display by default
Load protected by inverter
Load rate:
0
50 100
A. The load supply source is displayed, i.e.:
LOAD PROTECTED BY INVERTER,
LOAD SUPPLIED BY AUTOMATIC BYPASS,
LOAD SUPPLIED BY MAINTENANCE BYPASS,
OPERATING ON BATTERY,
LOAD OFF,
B. The actual alarms are displayed as long as they have not been reset by the operator (or auto-
reset).
C. The load rate is displayed as long as less than 4 alarms are not activated.
Note:
if the icon is displayed, some maintenance has to be planned.
- The menu screen
MEASUREMENTS AUTOMATIC STARTUP
UPS COMMANDS LOAD TO MAINS
OPERATING MODE TRANSFER TO MAINTENANCE BYP
EVENT LOG ↓
D. The menus available are displayed.
E. The submenu related to the selected menu is highlighted on the display.
Note: the remaining displays are described in the corresponding paragraphs.
A
B
C
D
E
