socomec Masterys BC User Manual

29
MASTERYS BC 100-120 kVA - Ref.: IOMMASBCXX07-EN 05
ENGLISH

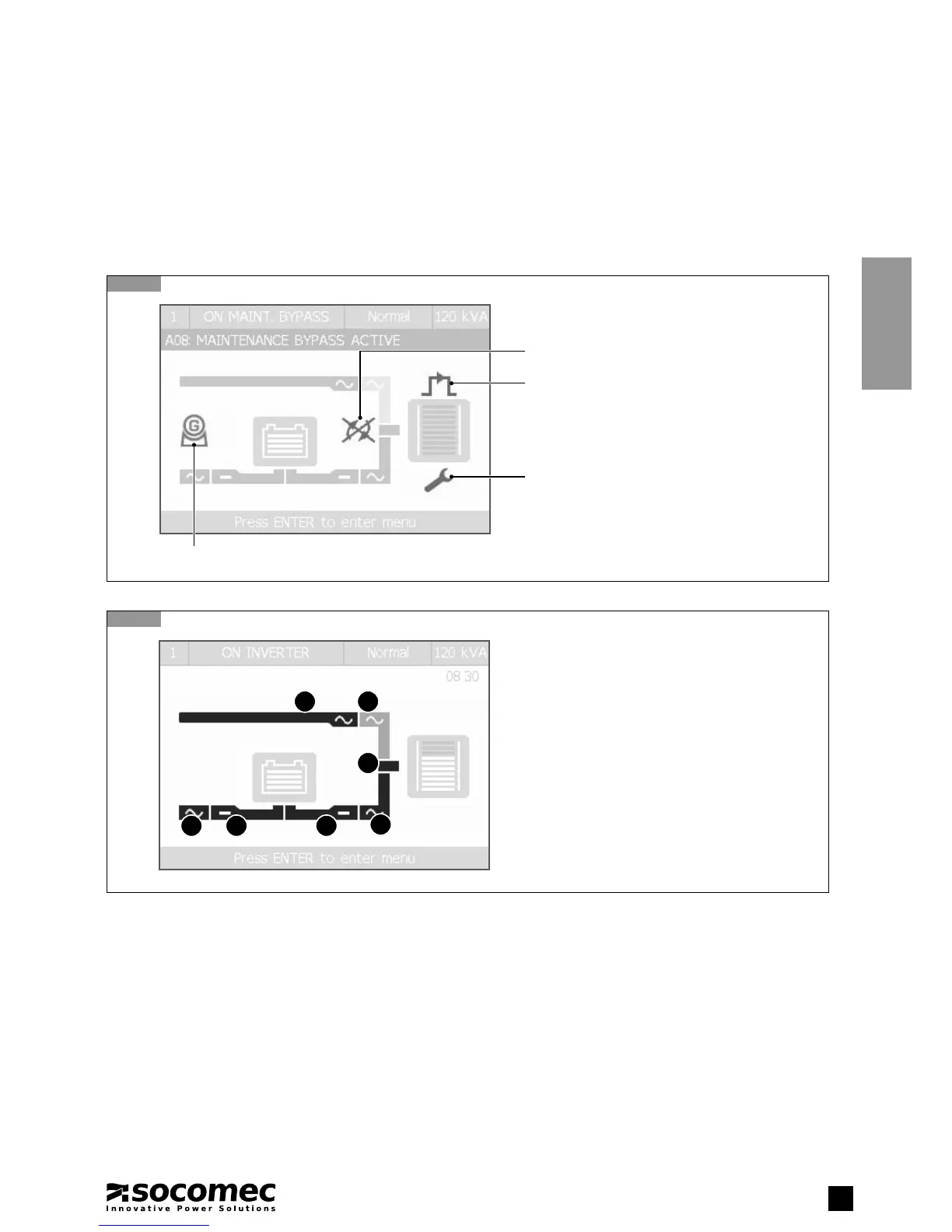

5.2-4
Additional Icons
5.2-5
Mimic panel
5. HUMAN MACHINE INTERFACE
On Maintenance Bypass
Commissioning Code not insert (see chapter 5.3.)
or Scheduled Inspection warning: machine
inspection required.
Call SOCOMEC support service
Operating on GenSet
Bypass mode (or Eco Mode) not possible
Bars
1. Rectifi er input.
2. Rectifi er output.
3. Inverter Input or Battery Output.
4. Inverter Output.
5. Unit output.
6. Output from static switch
7. Bypass input.
Bar colour identifi es energy fl ow:
• dark grey: active/mains present
• light grey: mains not present
6 7
5
3 2 1
4
Keypad locking
The keypad can be locked by pressing the buttons in the following sequence:
ESC  UP  DOWN  ENTER
To unlock the keypad, the buttons must be pressed in the reverse sequence:
ENTER  DOWN  UP  ESC
These sequences work only on Mimic Panel page.

socomec Masterys BC Specifications

General

Frequency	50/60 Hz
Power factor	0.9
Protection Degree	IP20
Input Voltage	400 V three-phase + N
Output Voltage	400 V three-phase + N
Efficiency	Up to 96%
Battery Type	VRLA
Operating Temperature	0 to +40 °C
Relative Humidity	0% to 95% (non-condensing)
Cooling	Forced air
Communication Interface	RS232, USB
Dimensions	Varies by model (e.g., 650 x 800 x 1200 mm for 20 kVA)
Weight	Varies by model (e.g., 300 kg for 20 kVA)
Topology	Double conversion
