socomec Masterys BC User Manual

30
MASTERYS BC 100-120 kVA - Ref.: IOMMASBCXX07-EN 05

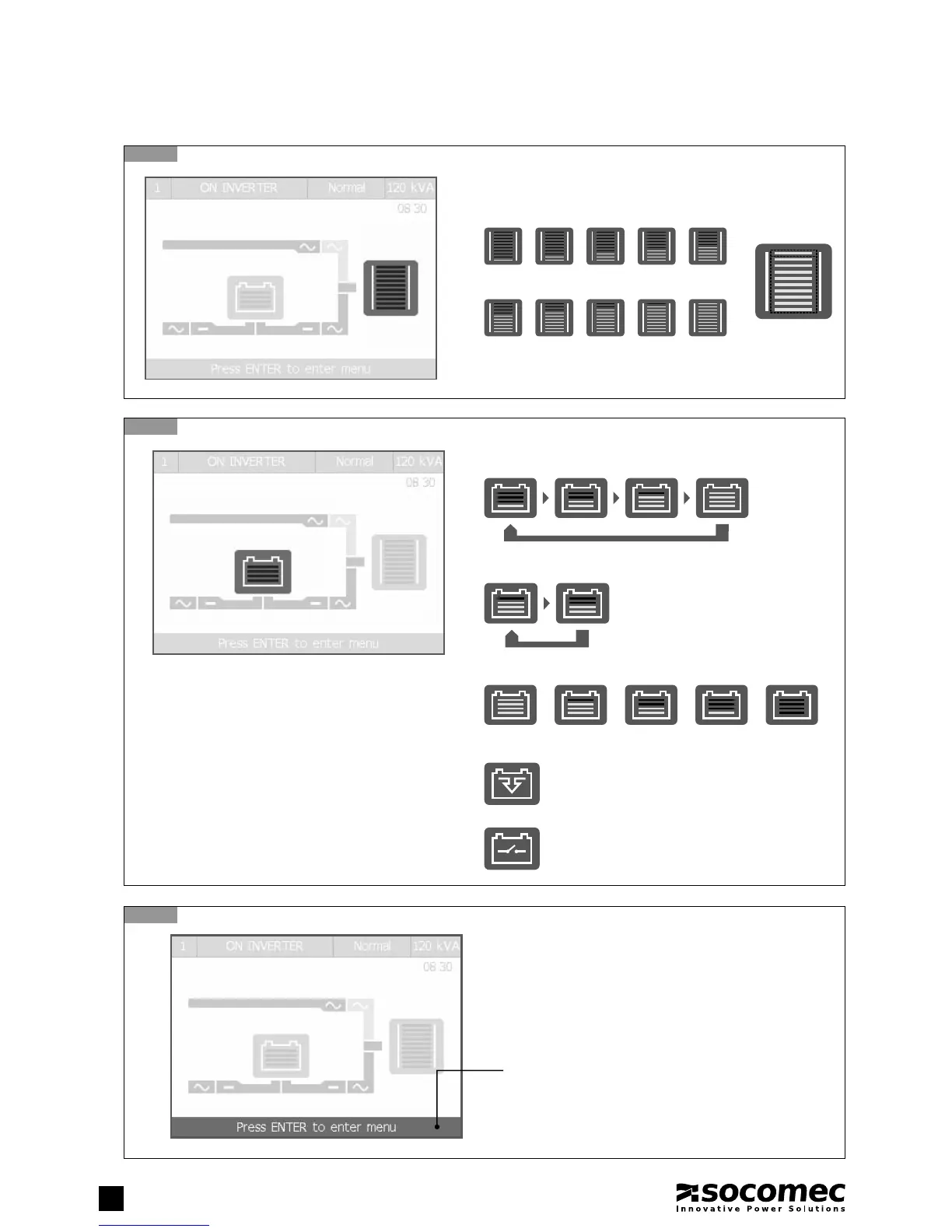

5.2-8
Message area
5.2-7
Battery status (unit only)
5.2-6
Load level
5. HUMAN MACHINE INTERFACE
≤ 10% ≤ 20% ≤ 30% ≤ 40% ≤ 50%
≤ 60% ≤ 70% ≤ 80% ≤ 90% > 90%
Battery charging
The level reached is continuous, other levels fl ashing
Battery discharging
The level reached is continuous white, others level fl ashing.
Battery charged
The upper level is fl ashing white.
Battery discharged
Battery open
≥ 90%
≥ 80%
≥ 70% ≥ 60% < 60%
Message area
Always present, displays a help message to
guide the user through the display functions.

socomec Masterys BC Specifications

General

Frequency	50/60 Hz
Power factor	0.9
Protection Degree	IP20
Input Voltage	400 V three-phase + N
Output Voltage	400 V three-phase + N
Efficiency	Up to 96%
Battery Type	VRLA
Operating Temperature	0 to +40 °C
Relative Humidity	0% to 95% (non-condensing)
Cooling	Forced air
Communication Interface	RS232, USB
Dimensions	Varies by model (e.g., 650 x 800 x 1200 mm for 20 kVA)
Weight	Varies by model (e.g., 300 kg for 20 kVA)
Topology	Double conversion
