7. mImIc paNEL
7. 2.2. Mimic panel menu

Select one of the four menus.

Scroll through list (up/down) and pages (left/right).

Access menu.
Controls .
Conrm settings.
Measurements
.
Cancel .
Monitoring .
Increment .
Help .
Decrement.
Home page.
Log le.
Previous page.
Status.
Reset alarms.

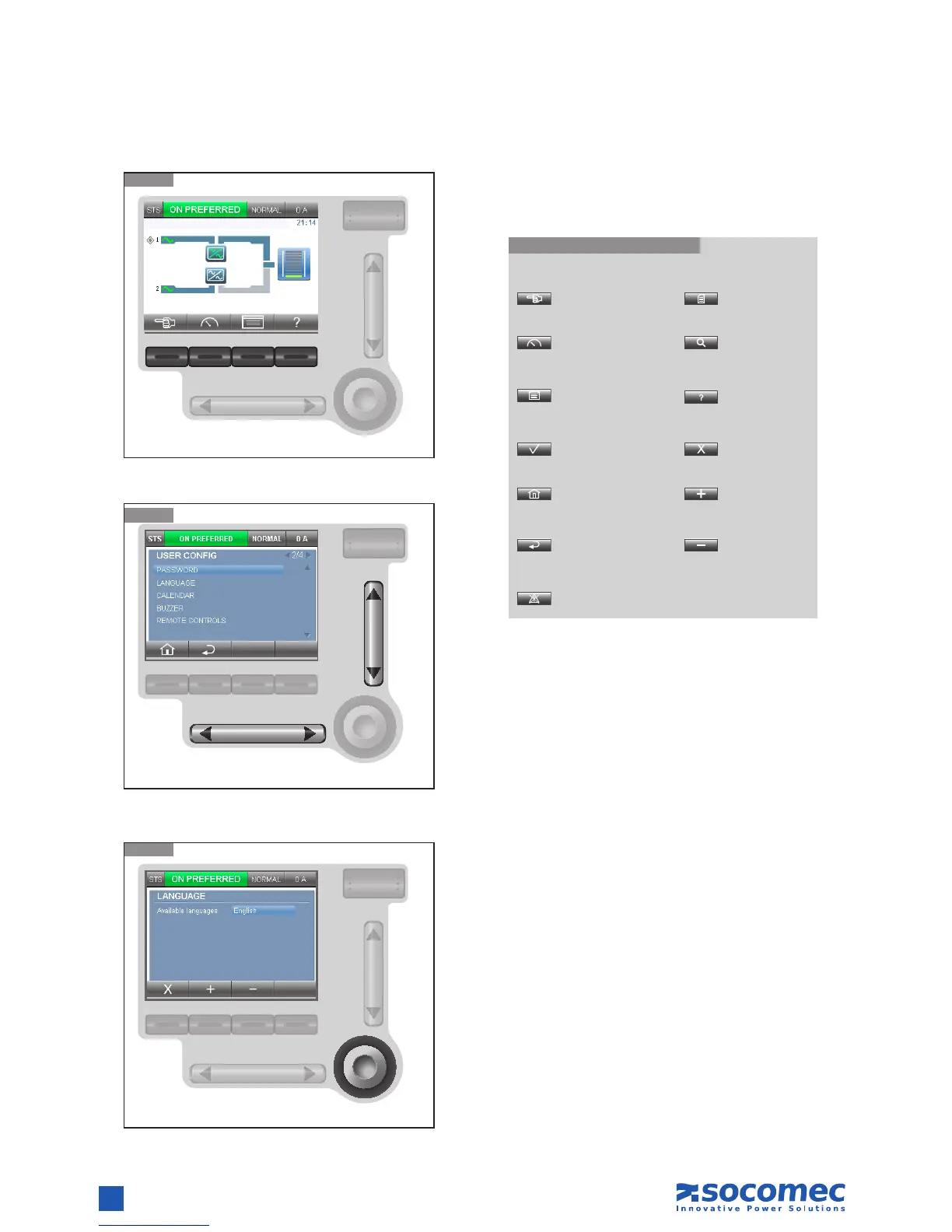

7. 2.2-2 Legend of symbols.
