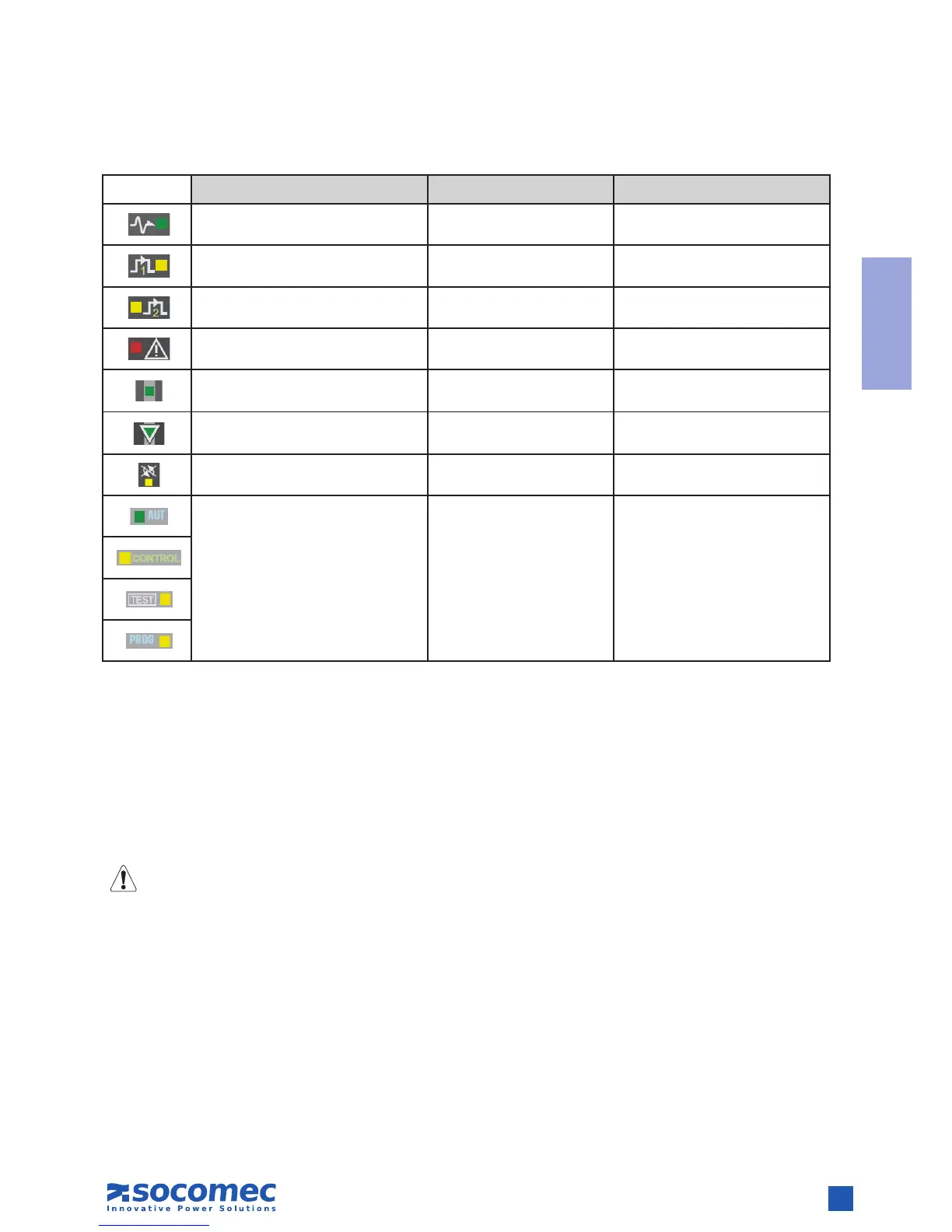

7. 1.2. Meaning of leds
ON BLINKING OFF
Load supplied by STATYS Output shutdown imminent Output not supplied by STATYS
Output supplied directly by source 1 / /
Output supplied directly by source 2 / /
General Alarm Critical alarm No alarm active
Source within tolerances
Source outside tolerated
range
Source absent
Conduction path
Path outside tolerated
range
No conduction
Transfer locked Switchback impossible Transfer possible
Selected mode Mode awaiting selection /
7. 1.3. Password management
Two levels of protection:
"User" password: provides access to control mode and user parameters settings (user access). Disabled by default
(set to _ _ _), it can be congured from 000 to 999 and _ _ _.
"System" password: provides access to user and system parameter settings. The default setting is 000, it may be
congured from 000 to 999.
When the device is in standby mode, the password is invalidated.
