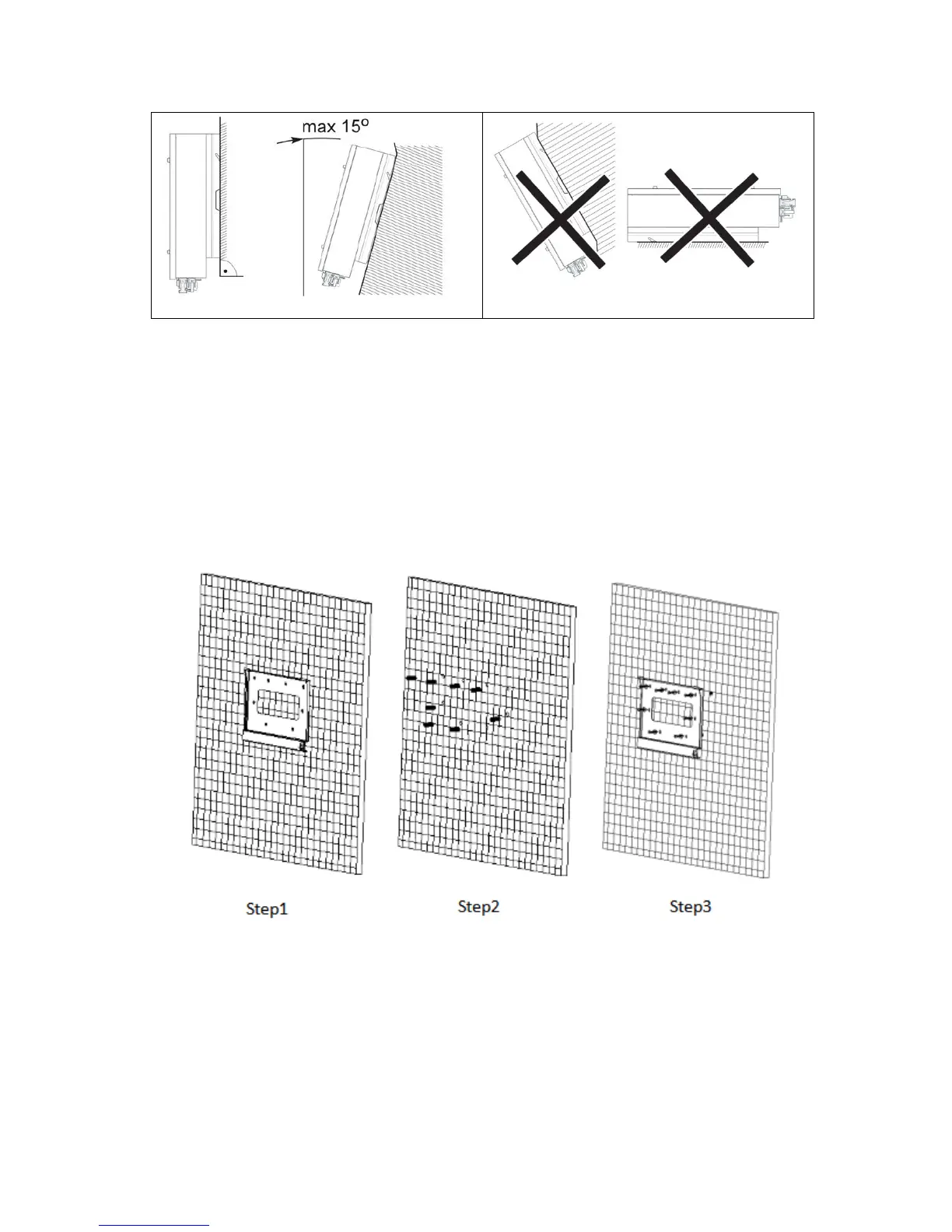

Fig. 4 Installation Position of ME3000SP
3.6 Mount ME3000SP
Step 1: Put the mounting bracket properly on the wall, mark these 8 drill holes using a marker pen. Drill 8 holes (drill
bit 6mm) on the wall.
Step 2: Insert the expansion screw vertically into the hole, note the insertion depth. (not too shallow or too deep)
Step 3: Fix the mounting bracket on the wall using bolts & flat washers.
Step 4: Put ME3000SP on the mounting bracket.
Step 5: Earth ME3000SP using the grounding hole on the heat sink.
Step 6: OPTIONAL: you can lock ME 3000SP to the mounting bracket.
