18
4.4 Critical Load Connection (EPS function)
Critical load: in case of grid outage, if EPS function is enabled, ME 3000SP will work in EPS (Emergency Power Supply)
mode, discharge the battery & supply power to critical load via LOAD port.
LOAD port is only for critical load connection. Please make sure youve purchased the AC contactor from Shenzhen
SOFARSOLAR Co., Ltd.
The connection procedure of LOAD port is the same as grid connection (Fig. 11).

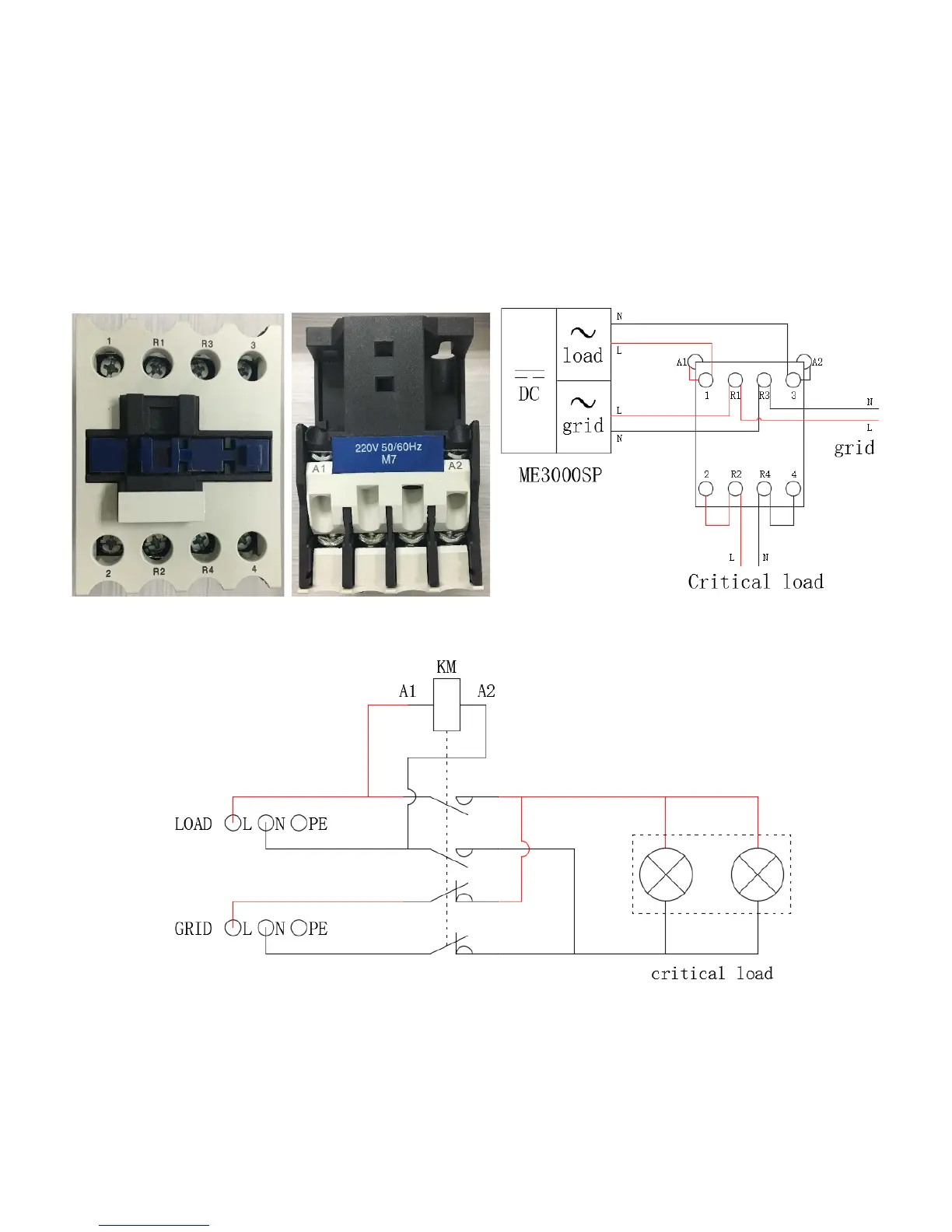

Fig. 12 AC contactor front view, top view, and connection
Fig. 13 Critical load connection (AC contactor: 2 NC, 2 NO)

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Sofar ME3000SP and is the answer not in the manual?

Sofar ME3000SP Specifications

General IconGeneral
ModelME3000SP
ManufacturerSofar Solar
TypeHybrid Inverter
Rated Power3000 W
Max PV Input Voltage500 V
Max PV Input Current13 A
Battery Voltage Range40-60 V
Efficiency97.5%
Max. DC Voltage500 V
Number of MPPTs1
Max. Input Current per MPPT13 A
Max. AC Power3000 W
Max. AC Current13.6 A
Rated AC Voltage230 V
AC Voltage Range180-280V
Rated Frequency50/60 Hz
THDi<3%
Euro Efficiency97%
DC SwitchYes
Protection DegreeIP65
Operating Temperature Range-25°C to +60°C
CoolingNatural Convection
CommunicationRS485, WiFi (optional)
