PowerMagic 400V C&I Energy Storage System User Manual
23

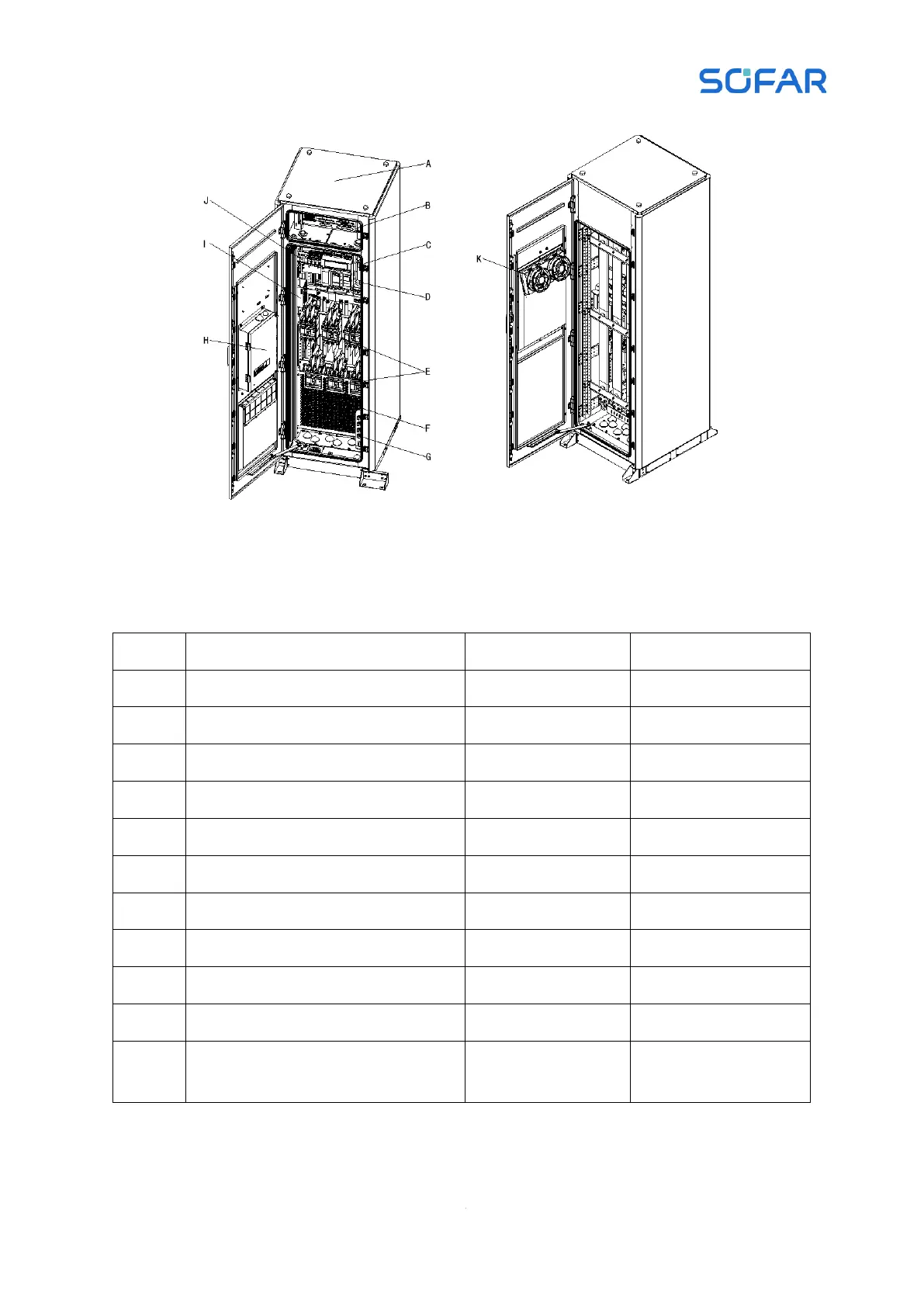

Figure 2.9 400V Junction cabinet components
Table 2.6 Introduction of components of 400V Junction cabinet
NO.
Name
Qty
Statement
A
Cabinet
1
B
CSU box
1
C
Meter
1
D
Circuit breaker
1
E
Branch circuit breaker
2~6
Max 6pcs
F
Protection plate
2
G
Communication interface
1
H
Junction box
1
I
Dehumidifier
1
J
Lightning protector
1
K
Fan
2
