Connections
22
CONNECTIONS
Reader - I8 - R8
Combinations
The iSTAR Edge supports up to two readers, four I8 boards, and four R8
boards. The readers can be any combination of RM readers and direct connect
Wiegand signaling devices. There are two Wiegand connectors and three RM
ports. The RM readers can use any combination of Ports 1-3, including both
readers on one port. The following figures illustrate some typical connection
scenarios.
Two Wiegand Readers
Figure 6 shows two Wiegand signaling devices with multiple I/O Modules.

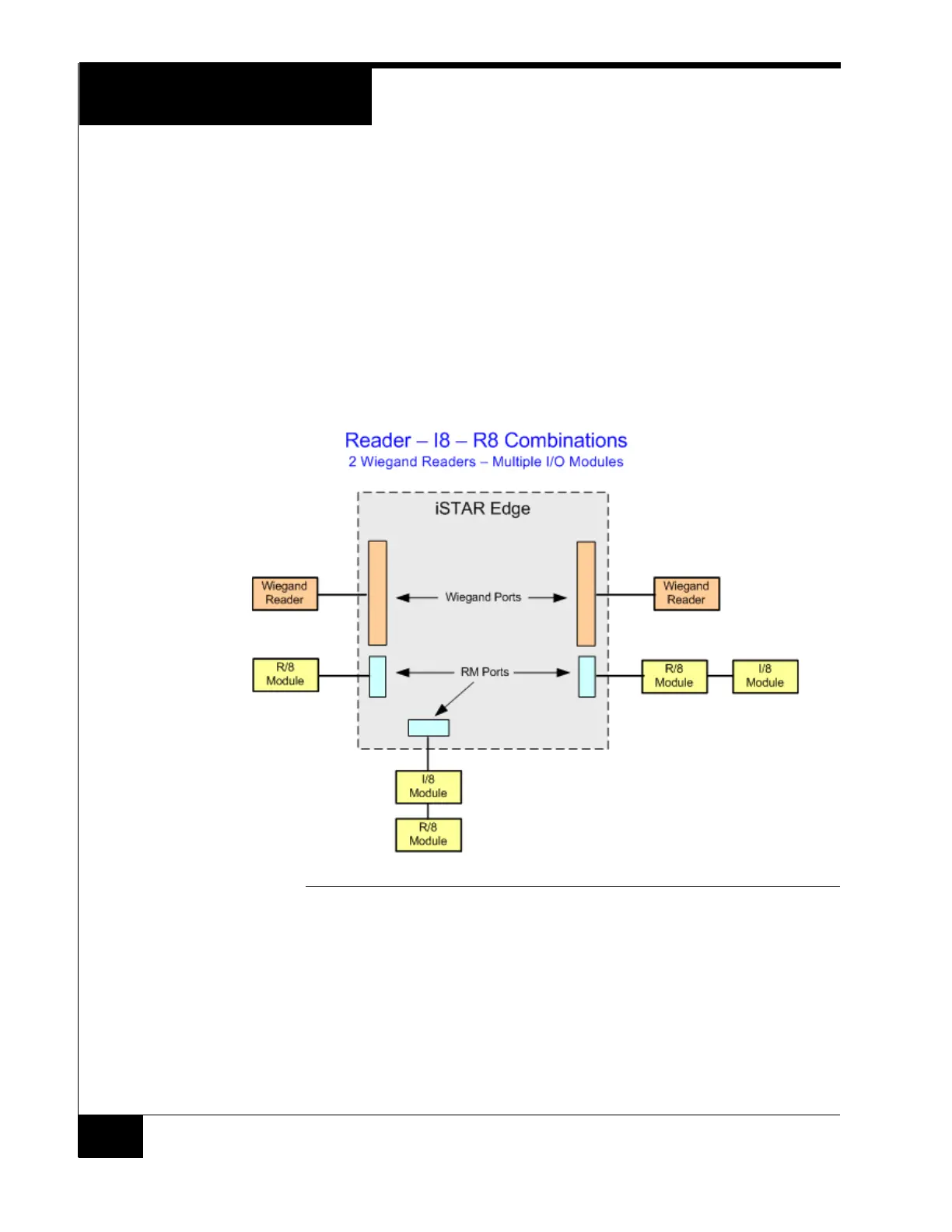

FIGURE 6. Two Wiegand Readers with I/O modules
To Next Page
