Connections
23
Two RM Readers

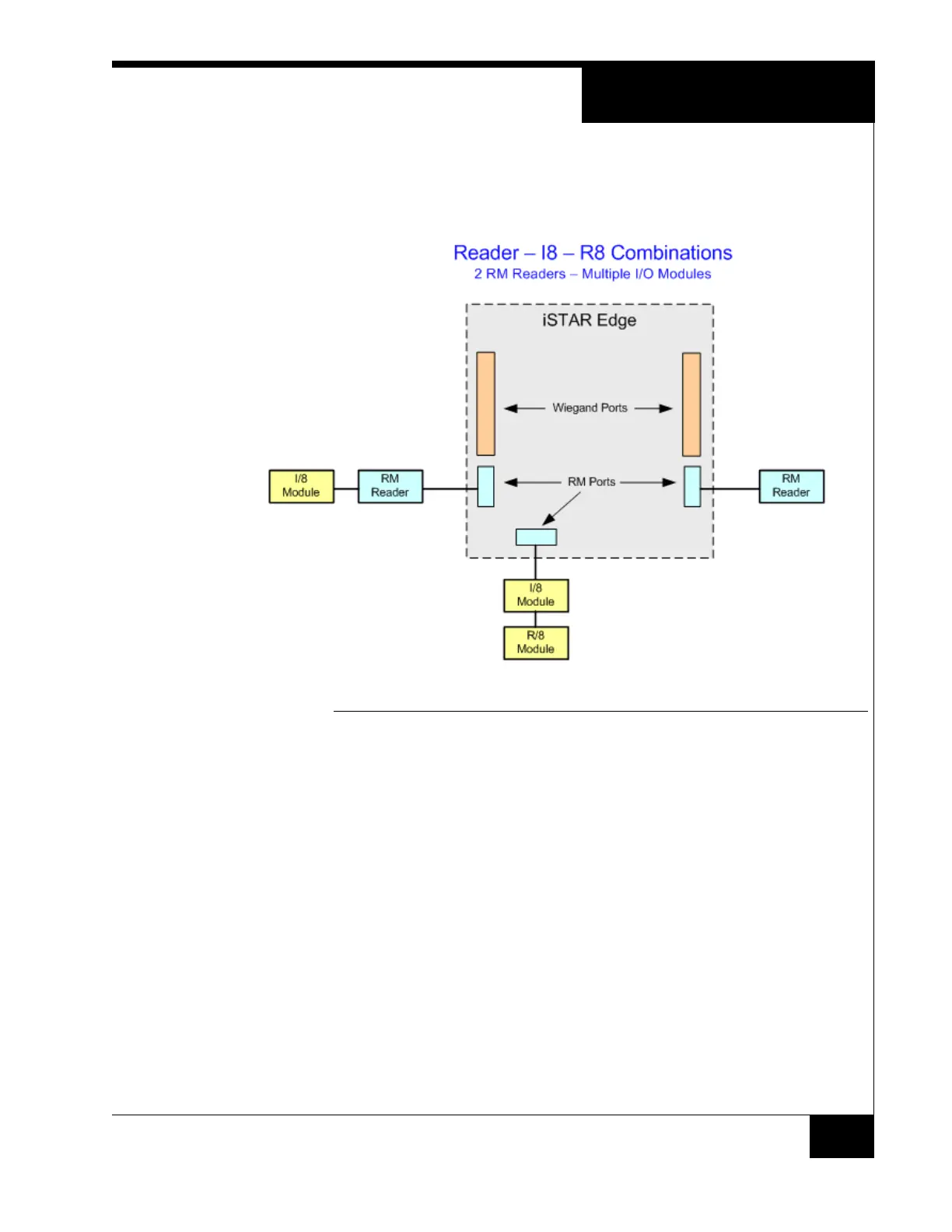

Figure 7 shows two RM readers connected to RM1 and RM2.
FIGURE 7. Two RM Readers with I/O Modules
