Connections
31
AC Fail / Low Battery

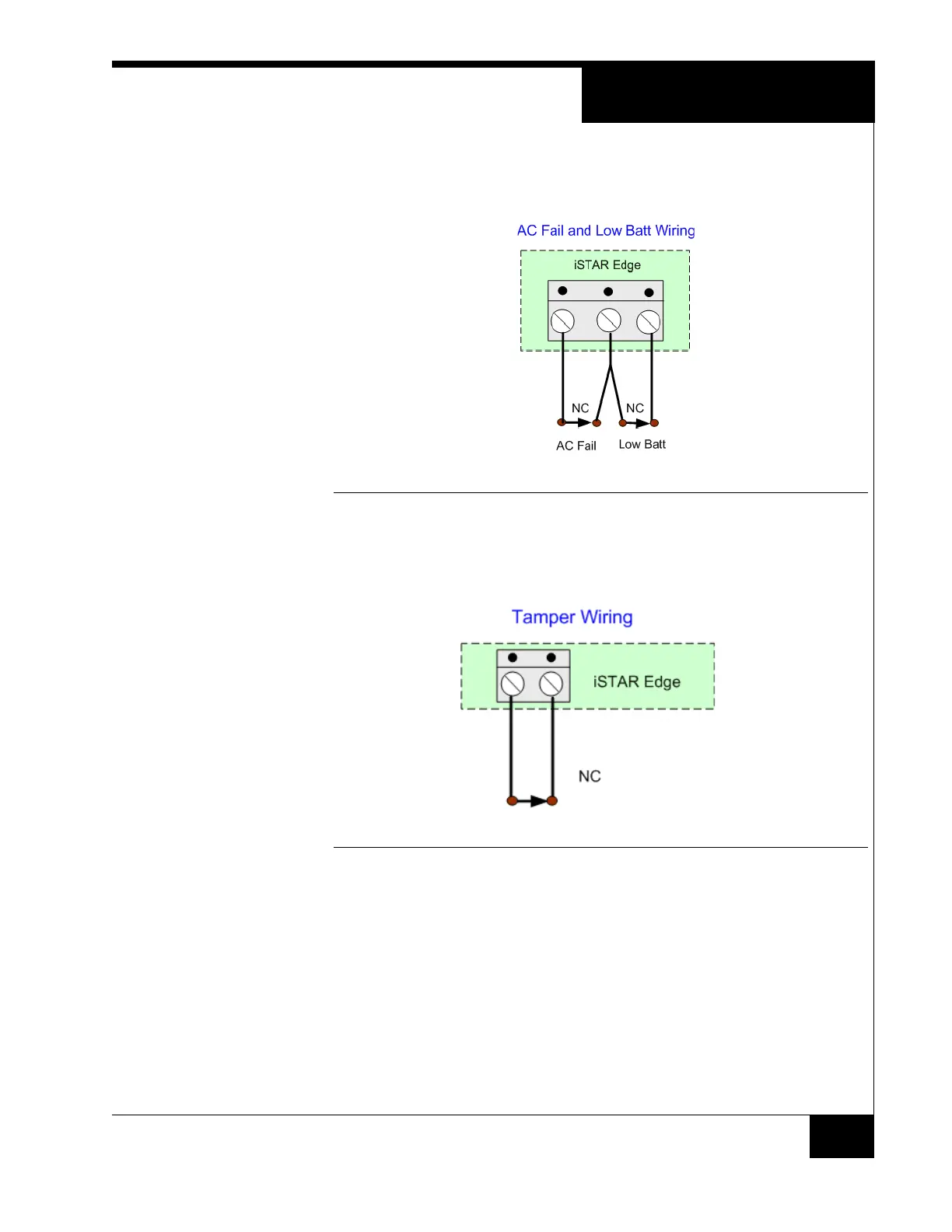

AC Fail and Low Battery wiring is shown. They are NC connections. note that
they share a common ground pin.
FIGURE 20. AC Fail - Low Battery
Tamper
Tamper is NC. It is usually connected to the Tamper switch on the enclosure. If
there is no standard enclosure be sure that there is a jumper across the two pins.
FIGURE 21. Tamper
