Sol-Ark 12K (Indoor)
The Sol-Ark 12K Indoor can communicate through two RJ-45 ports labeled
“CAN” and “RS-485.” Battery communication is established through CANBus or
Modbus communication protocols using the “CAN” and “RS-458” ports
respectively.

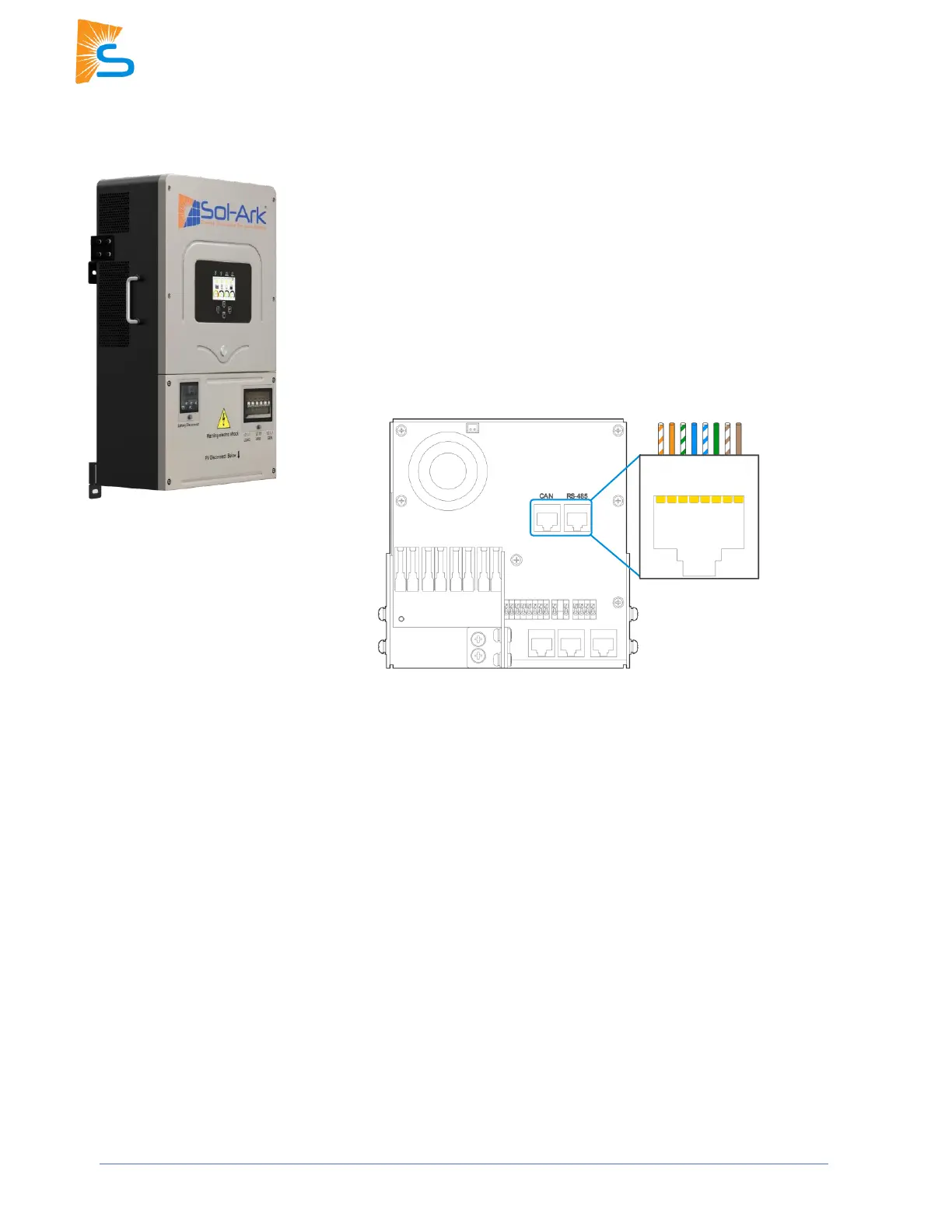

The diagram shows the communication board inside the 12K Indoor inverter
wiring area. Note that both the “CAN” and “RS-485” ports can be used for
battery communications depending on the required protocol. The pin
configurations for Modbus and CANBus communications are listed in Table III.
12K Indoor con board and battery “CAN” & “RS-458” communication ports
