SolarEdge SE6000H User Manual

Step 2: Connecting a PV module to a Power Optimizer
NOTE
Images are for illustration purposes only. Refer to the label on the product to
identify the plus and minus input and output connectors.
For each of the power optimizers:
Connect the Plus (+) output connector of the module to the Plus (+) input
connector of the power optimizer.
Connect the Minus (-) output connector of the module to the Minus (-) input
connector of the power optimizer.

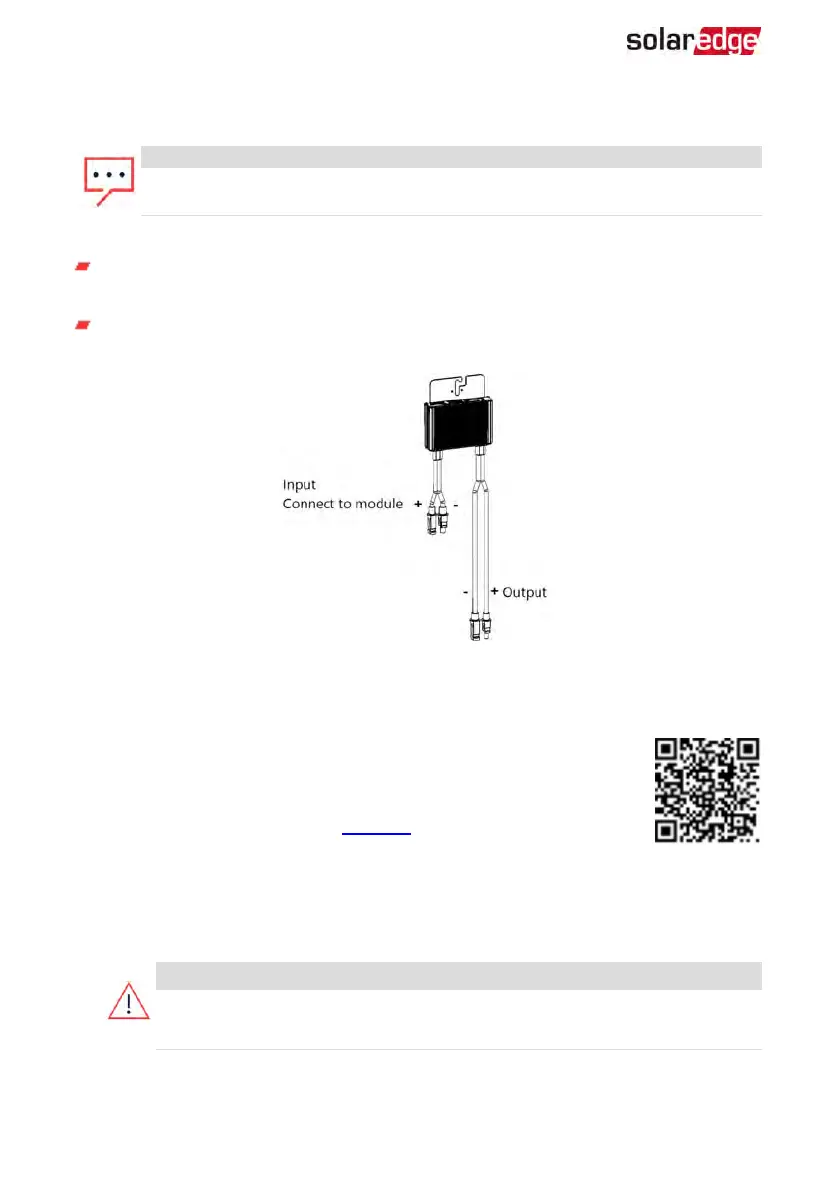

Figure 4: Power optimizer connectors
Step 3: Connecting Power Optimizers in Strings
You can construct parallel strings of unequal length, that is, the number
of power optimizers in each string does not have to be the same. The
minimum and maximum string lengths are specified in the power
optimizer datasheets. Refer to the Designer for string length verification.

1. Connect the Minus (-) output connector of the string’s first power optimizer to the
Plus (+) output connector of the string’s second power optimizer.
2.
Connect the rest of the power optimizers in the string in the same manner.
WARNING!
If using a dual-input power optimizer and some inputs are not used, seal the
unused input connectors with the supplied pair of seals.
EV Charging Single Phase Inverter Guide MAN-01-00583-1.5
20 Step 2: Connecting a PV module to a Power Optimizer

SolarEdge SE6000H Specifications

General

Model	SE6000H
Manufacturer	SolarEdge
AC Output Power	6000 W
Rated AC Power	6000 W
Cooling	Natural Convection
Noise Level	< 25 dBA
Topology	Transformerless
Number of MPP Trackers	1
Warranty	12 years
Max. Input Voltage	480 V
MPPT Voltage Range	380 - 480 V
Operating Temperature Range	-25°C to 60°C
Dimensions	450 x 370 x 174 mm
Weight	23.6 lbs (10.7 kg)
AC Voltage	208/240 V
