Removing the Inverter Cover
1. Switch the inverter ON/OFF/P switch to OFF. Wait 5 minutes for the capacitors to
discharge.
2. Turn the Safety Switch (if applicable) to OFF.
3. Disconnect the AC to the inverter by turning OFF the circuit breakers on the
distribution panel.
4. Open the Allen screws of the inverter cover and carefully pull the cover horizontally
before lowering it.
5.
Open the inverter cover (see
Figure 19
).
CAUTION!
When removing the inverter cover, make sure not to damage the internal
components. SolarEdge will not be held responsible for any components
damaged as a result of incautious cover removal.

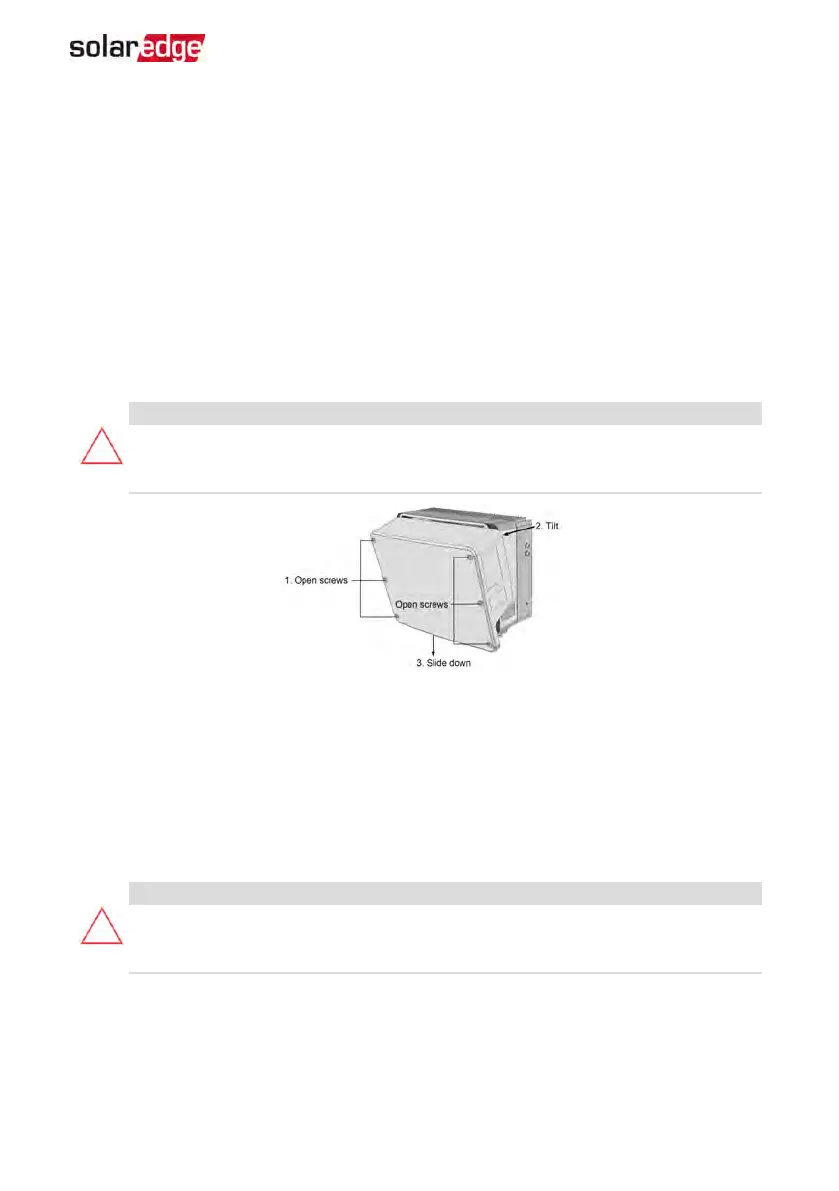

Figure 19: Removing the inverter cover
Removing the Connection Unit Cover
1. Turn OFF the AC breaker of the distribution panel and the safety switch (if
applicable).
2. Open the Connection Unit cover: Release the four Allen screws and remove the
cover.
CAUTION!
When removing the Connection Unit cover, make sure not to damage the
internal components. SolarEdge will not be held responsible for any
components damaged as a result of incautious cover removal.
