The communication board has a standard RJ45 terminal block for Ethernet connection,
a 6-pin terminal block for RS485 connection, and an 8-pin connector for power control
devices.
The SolarEdge ZigBee or Wi-Fi Plug-in and the GSMPlug-in can be connected to the
communication board for optional wireless connection.

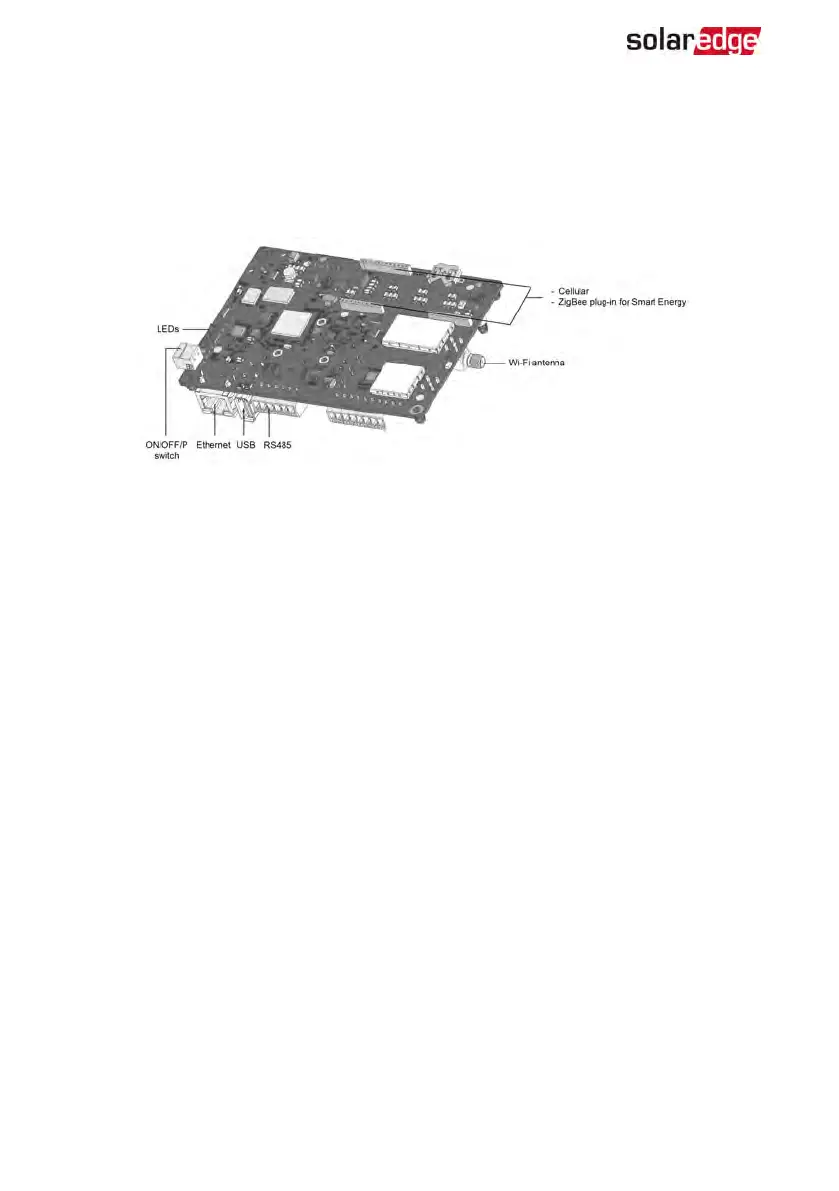

Figure 18: Communication board connectors
