SolarEdge SE6000H User Manual

Color Description Functionality
Blue
Communication and
inverter shutdown
Blinking:
- Monitoring information is being received from a
power optimizer.
-The inverter is being shut down.
On -The EV Charger is communicating with the
inverter
Red Error
On - There is an error. Refer to Errors and
Troubleshooting on page 61 for more
information.
Blinking - The inverter is being shut down.
DIPSwitches
Set the circuit breaker rating DIP switches (see Figure 8 ).

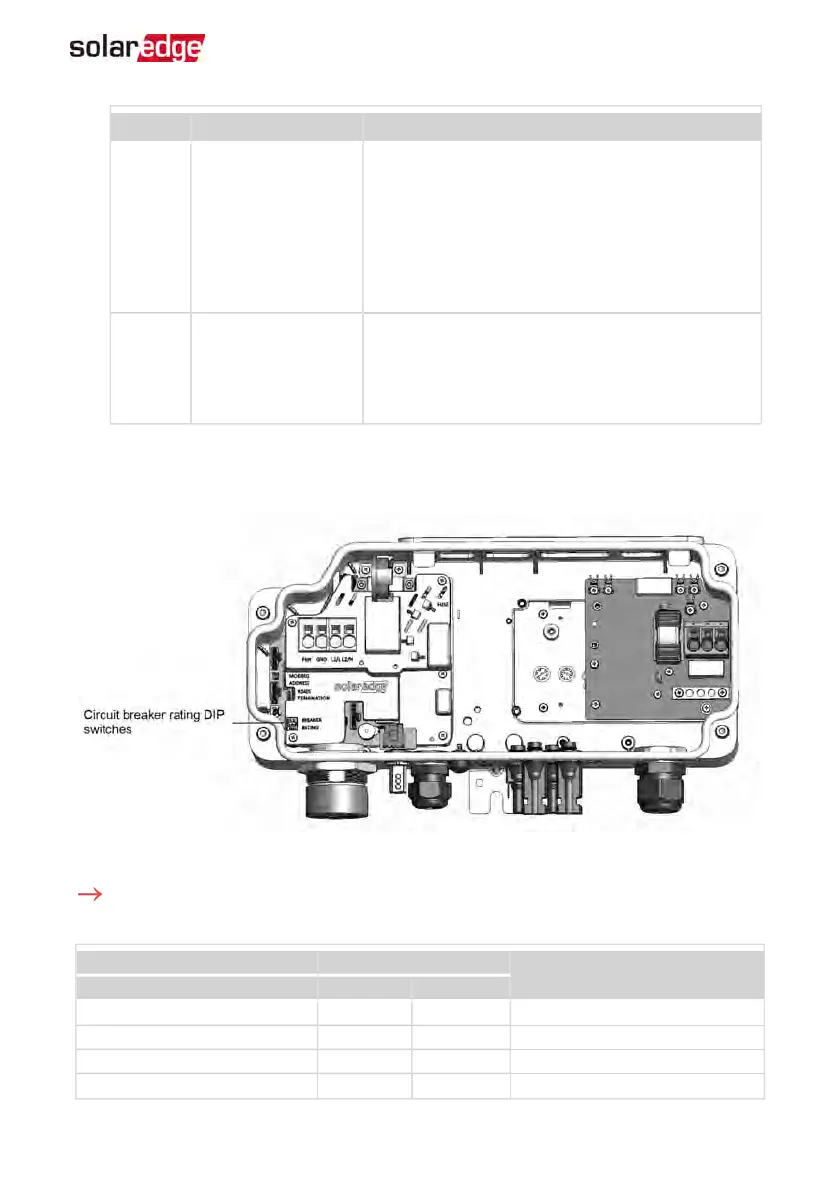

Figure 8: Connection Unit with EV Charger internal interfaces
To set the circuit breaker ratings:
Use the circuit breaker rating DIP switches to set circuit breaker ratings.
Circuit Breaker Rating DIPSwitch Settings
Maximum Allowed
AC Current from Grid
 1 (left) 2 (right)
20 A OFF OFF 16 A
25 A ON OFF 20 A
32 A OFF ON 25A
40 A ON ON 32 A
Chapter 3: Installing the Inverter 25
EV Charging Single Phase Inverter Guide MAN-01-00583-1.5

SolarEdge SE6000H Specifications

General

Model	SE6000H
Manufacturer	SolarEdge
AC Output Power	6000 W
Rated AC Power	6000 W
Cooling	Natural Convection
Noise Level	< 25 dBA
Topology	Transformerless
Number of MPP Trackers	1
Warranty	12 years
Max. Input Voltage	480 V
MPPT Voltage Range	380 - 480 V
Operating Temperature Range	-25°C to 60°C
Dimensions	450 x 370 x 174 mm
Weight	23.6 lbs (10.7 kg)
AC Voltage	208/240 V
