in the RS485 chain; ensure it is not in contact with other wires. Connect the
grounding wire to the grounding bus-bar in the StorEdge Connection Unit.
NOTE
An additional RS485 port (RS485-Plug-in) is available from
SolarEdge, allowing the creation of RS485 Bus Connection; Refer
to
The following sections describe how to physically connect the RS485 bus and how to
configure the bus.
To connect the RS485 communication bus:
1. Remove the inverter cover as described in
Removing the Inverter Cover
on page 45.
2. Remove the seal from one of the openings in communication gland and insert the
wire through the opening.
3.

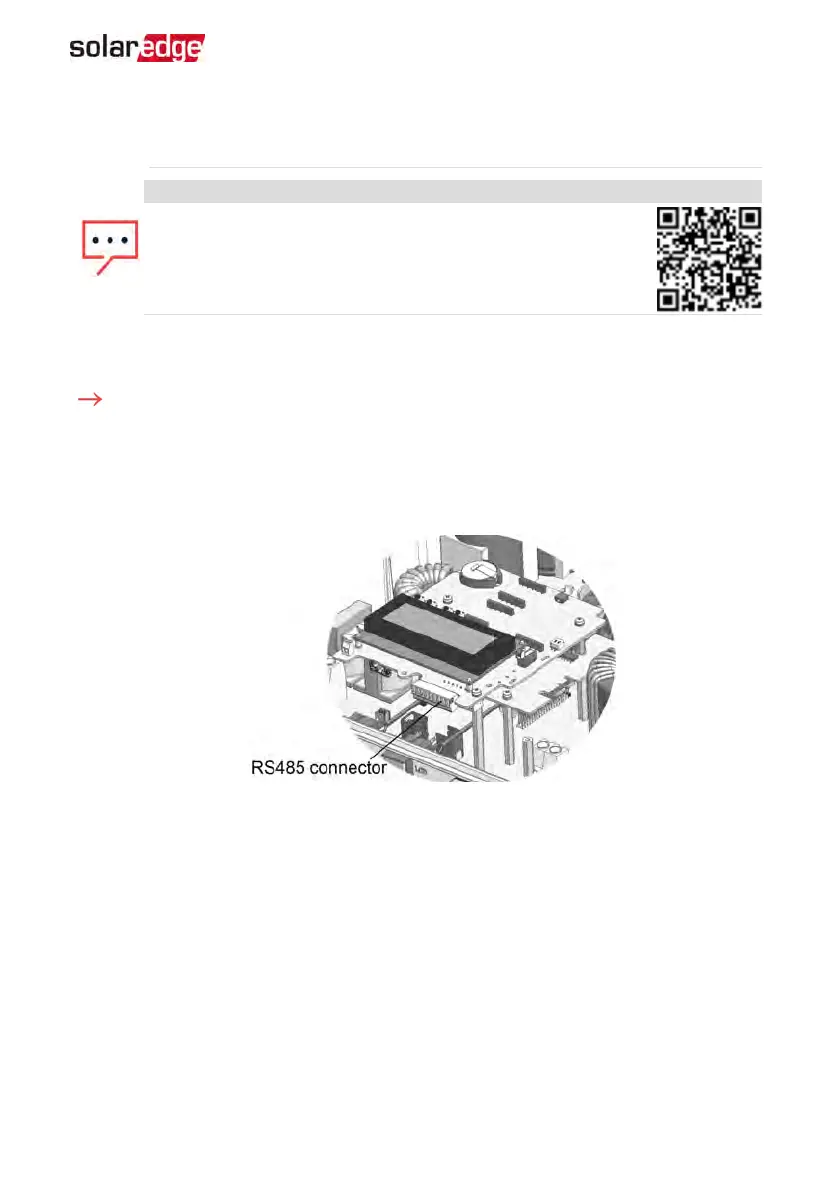

Pull out the 9-pin RS485 terminal block connector, as shown below:
Figure 39: The RS485 terminal block
4.
Loosen the screws of pins A(+), B(-), and G on the left of the RS485 terminal block
(RS485-1 or RS485-2).
