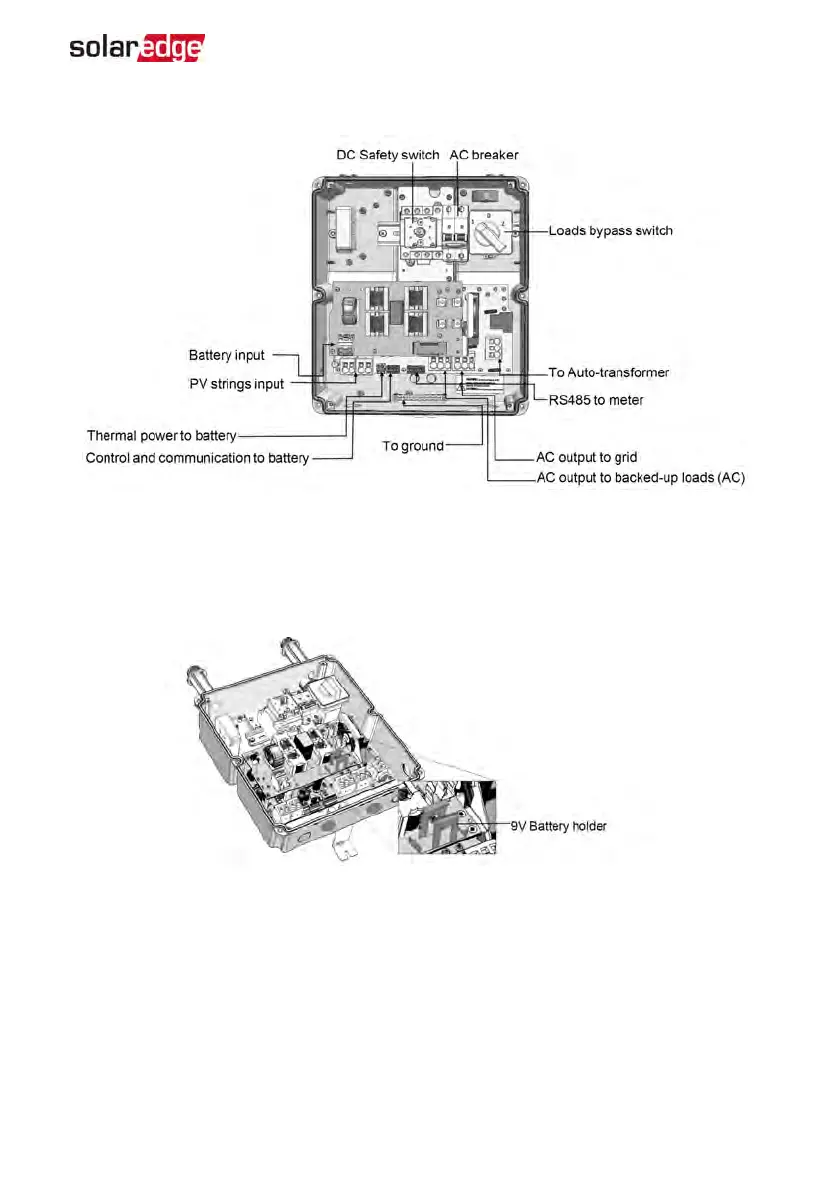

The following figure shows the connections in the StorEdge Connection Unit:
Figure 21: The StorEdge Connection Unit connections
Installing the 9VBattery and Fuses
A 9Vbattery is supplied with the inverter accessories. Install the 9V battery in the holder
on the top board of the StorEdge Connection Unit and connect it to the battery pad.
Figure 22: The battery holder
Two 25A fuses are supplied with the high power inverters. Install the fuses in the
holders on the top board of the StorEdge Connection Unit .
Chapter 7: StorEdge Inverter Connections 57
StorEdge Solution with Backup MAN-01-00262-1.5
