The inverter has been activated using the activation card supplied with the
inverter
The inverter ON/OFF switch is OFF
The ACvoltage to the inverter is OFF
2. Remove the inverter cover.
3. Make sure the RS485 Plug-in kit is installed in the inverter. This is indicated on the
inverter label.
4.
Insert the card into the communication board slot marked “CARD”.
1Ph/3Ph inverters

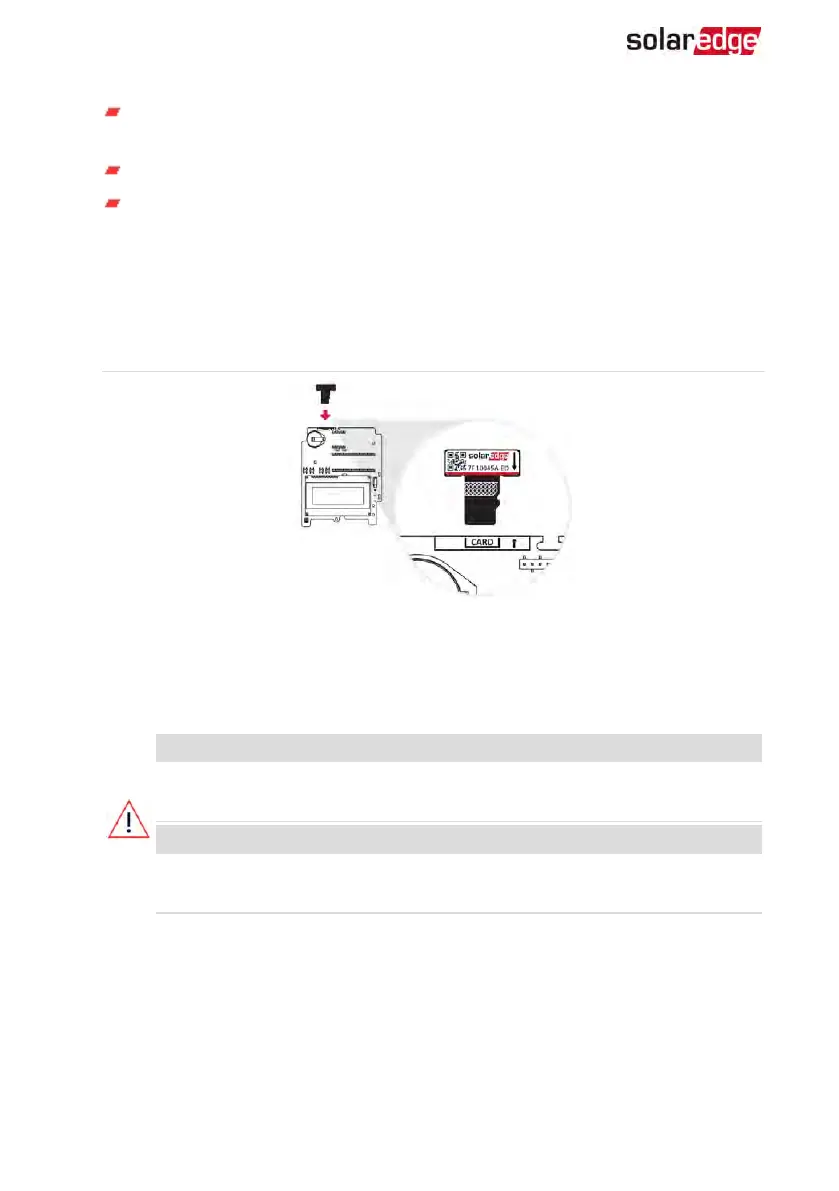

Figure 43: Inserting the upgrade card
5. Power on the battery, as explained in
Powering the LG Chem Battery Off and On
on
page 147. Wait 1 minute before proceeding.
6.
Turn ON ACto the inverter.
WARNING!
ELECTRICAL SHOCK HAZARD. Do not touch uninsulated wires when the
inverter cover is removed.
AVERTISSEMENT!
RISQUE D’ÉLECTROCUTION, ne touchez pas les fils non isolés lorsque le
couvercle de l'onduleur est retiré.
7. The upgrade starts automatically. Wait for the message Done to be displayed on the
LCD.
8. Remove the card from the inverter.
9. Enter the inverter Setup mode: Press the internal Enter button for 5-10 seconds and
release. Enter the password 12312312.
