SolarEdge StorEdge Solution with Backup

To open conduit drill guides:
1.
Move the StorEdge Connection Unit safety switch and the inverter ON/OFF switch
to OFF.
2.
Loosen the screws on the front cover of the StorEdge Connection Unit using the
supplied Allen key, as shown below:

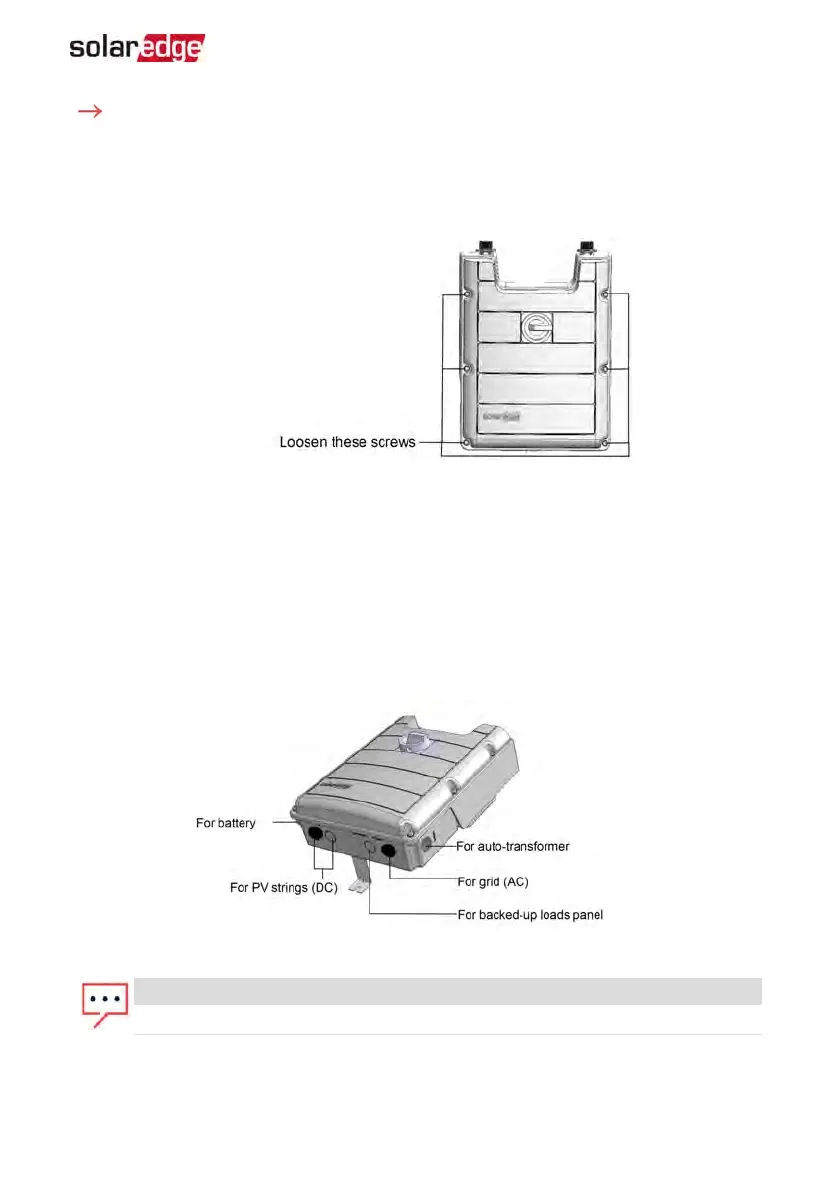

Figure 45: Opening the StorEdge Connection Unit cover
3. Remove the StorEdge Connection Unit cover.
4. Open the required conduit drill guides according to the conduits used in the
installation (refer to the figure below for required drill guides; some of the drill
guides may already be open but sealed): The drill guides are located at the bottom
and sides of the enclosure, each with two sizes: ¾'' and 1''. Open the required drill
guides, taking care not to interfere with any of the internal components. It is
recommended to use a Unibit drill.
Figure 46: StorEdge Connection Unit drill guides
NOTE
Unused conduit openings and glands should be sealed with appropriate seals.
Appendix B: Opening Conduit Drill Guides 137
StorEdge Solution with Backup MAN-01-00262-1.5
