LCD LEDs: Three LEDs indicate the following inverter statuses:
Color Description Functionality
Green Power production
On - The inverter is producing power.
Blinking - Standby mode. The inverter is in
Standby mode until its working voltage is reached.
The inverter then enters Production mode and
produces power.
Off - The inverter is not producing power. This
may be during Night mode, when the inverter
ON/OFF switch is OFF or when an error occurs.
Yellow
Module
communication and
inverter shutdown
Blinking:
Monitoring information is being received from a
power optimizer.
The inverter is being shut down.
Red Fault
On - There is an error. Refer to
Troubleshooting
on
page 123 for more information.
Blinking - The inverter is being shut down.
All LEDs turn on while the inverter is being configured.

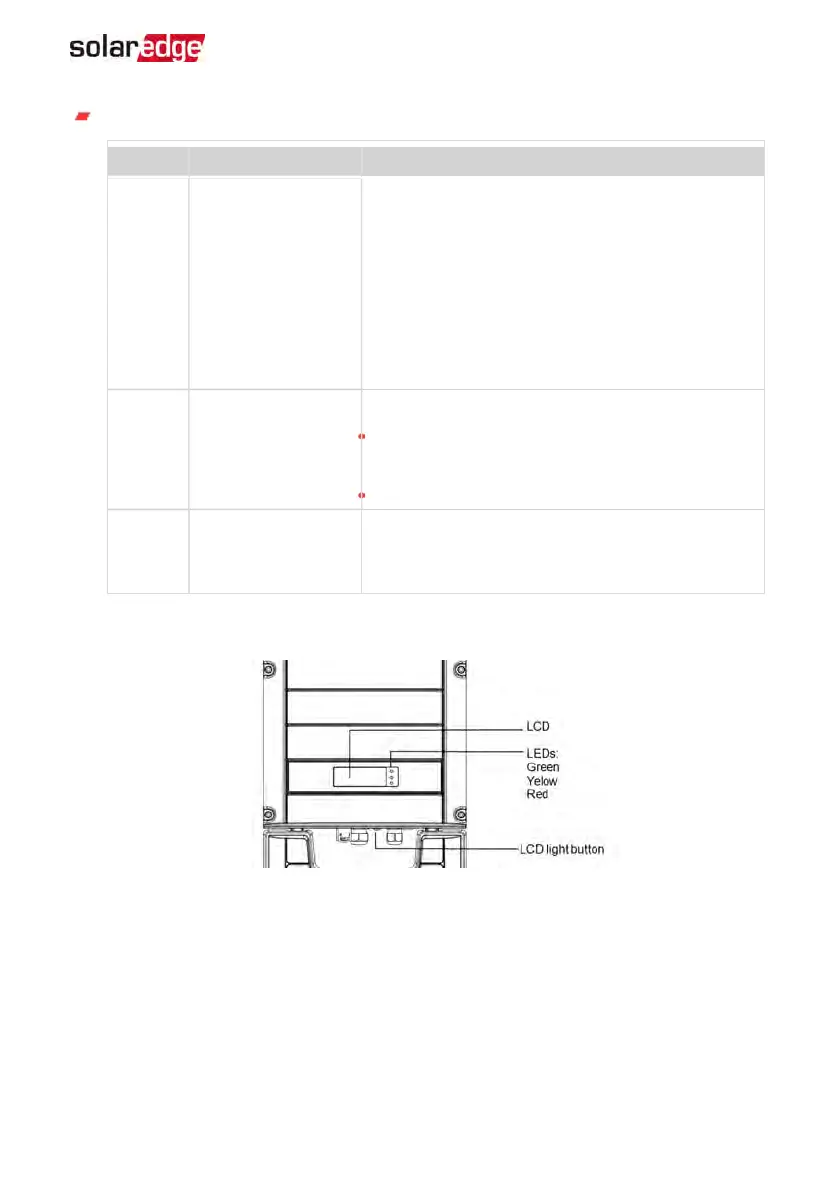

Figure 9: Inverter front view
Chapter 3: Installing the Inverter 33
StorEdge Solution with Backup MAN-01-00262-1.5
